JVC KS-FX201 Service Manual

KS-FX201
1-3
Fig. 3

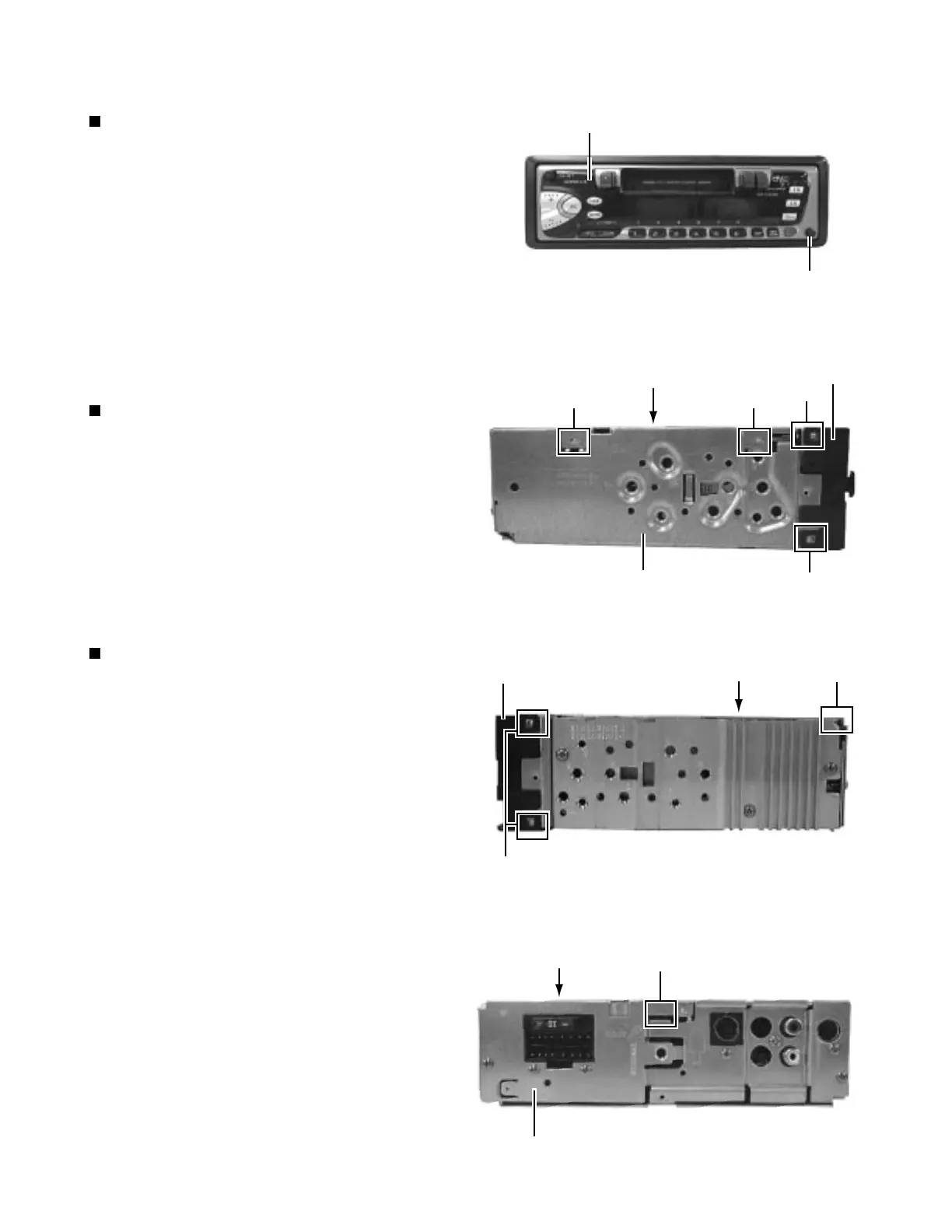

Disassembly Method
Detaching the Front Panel Unit
( See Fig.1 )
Push the Release button in the direction of arrow to
detach the front panel unit.
Removing the Front Chassis
( See Fig. 2 and 3 )
Disengage the four tabs ( a ) in the right and left sides of
unit and pull the front chassis forward to remove it.
Removing the Bottom Cover
( See Fig. 2 to 4 )
1. Removing the front chassis.
2. Turn the unit up side down.
3. Insert the four engagements ( b, c, d, e ) to the
screwdriver .
4. Turn the screwdriver and remove the bottom
cover.
Fig. 2
Fig. 4
Front panel unit
Fig. 1
Push the release button
Front chassis
Bottom cover
Top chassis
Bottom cover
a
a
bc
a
Front chassis
d
Bottom cover
Rear panel
e
