KS-FX201
1-4

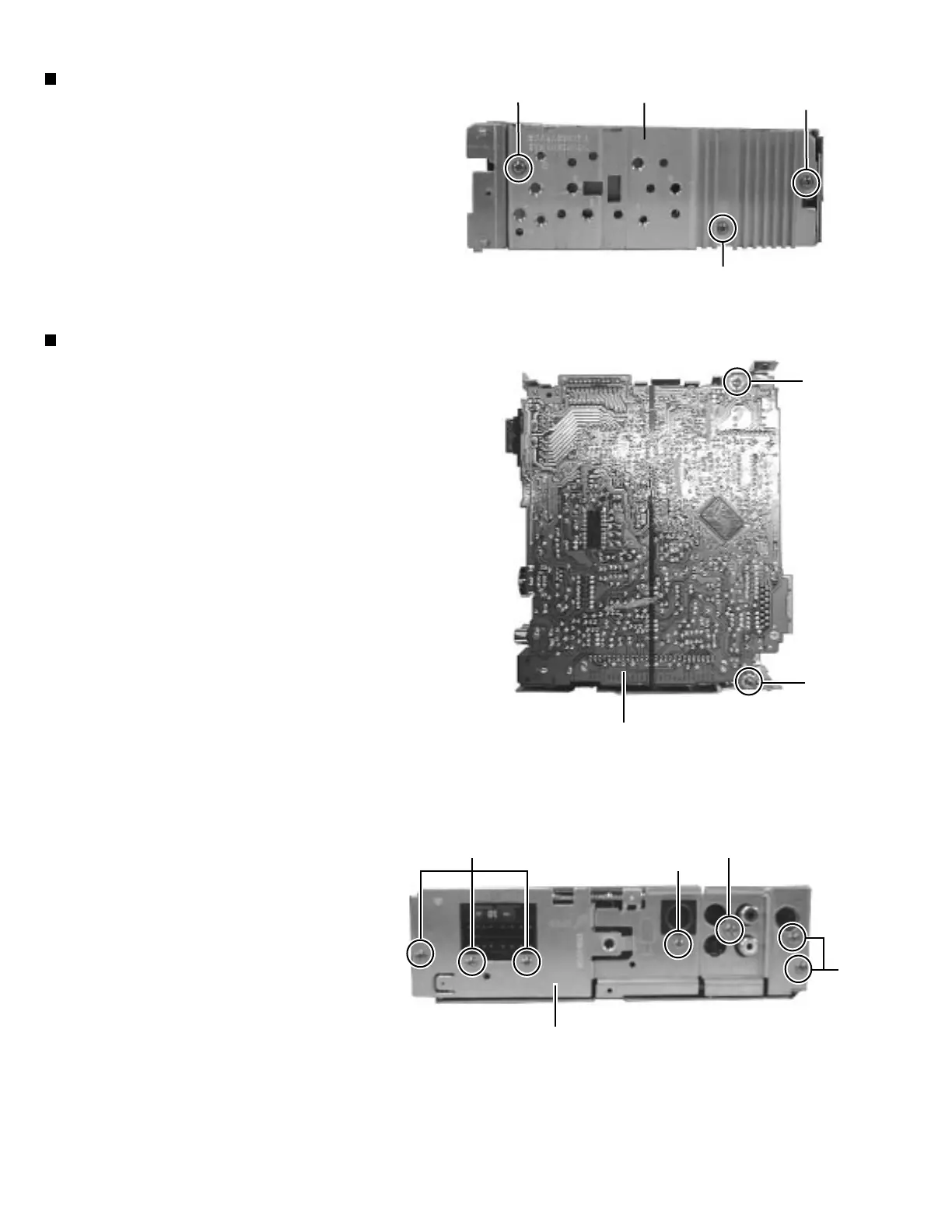

Removing the Heat Sink ( See Fig. 5 )
1. Removing the front chassis.
2. Removing the bottom cover.
3. Remove the three screws ( 1 and 1' ) retaining the
heat sink.
Removing the Main Board Assembly
( See Fig. 5 to 7)
1. Removing the front chassis.
2. Removing the bottom cover.
3. Removing the heat sink.
Attach the heat sink with a screw ( 1' ) on operat-
ing checks.
4. Remove the two screws ( 2 ) retaining the main
board assembly.
5. Remove the six screws ( 3 ) and one screw ( 3' ) retaining
6. Separate the main board assembly and cassette
mechanism assembly.
7. Take out the main board assembly.
Fig. 5
Fig. 6
Fig. 7
( )
the rear panel.
Heat sink
1
1
1'
2
2
Main board assembly
Rear panel
3
3
3'
3
To Next Page
