KS-FX202
1-11
Unsolder the two wires l on the mute switch board on
the back of the cassette mechanism assembly.
Remove the screw H attaching the mute switch
board.
1.
2.

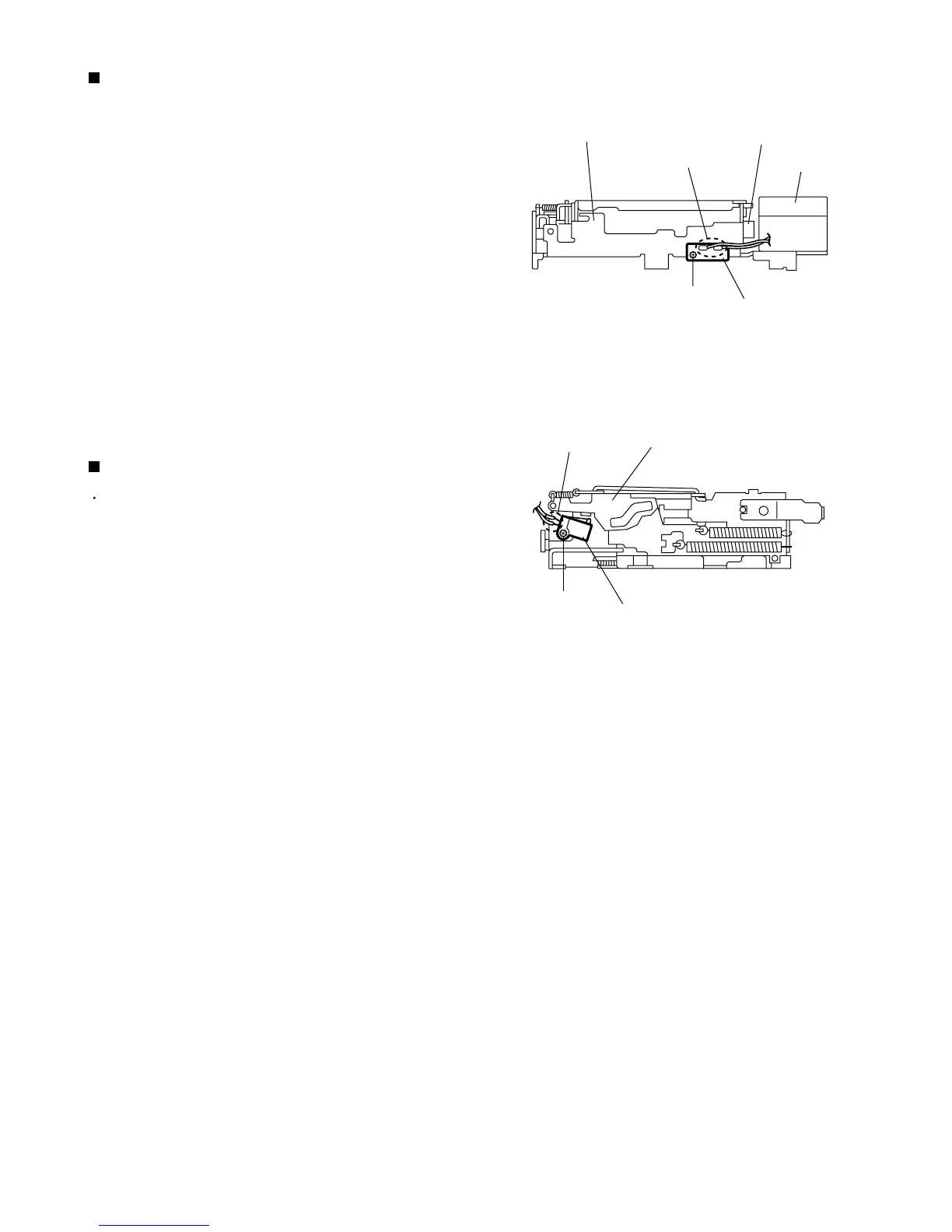

Removing the mute switch board
(See Fig.8)
Prior to performing the following procedure, remove
the motor assembly.
Unsolder the two wires m on the power switch on the
side of the cassette mechanism assembly.
Remove the screw I attaching the power switch.
1.
2.
Removing the power switch (See Fig.9)
Cassette mechanism assembly
Soldering l
H
Mute
switch board
Soldering m
I
Power switch
Cassette mechanism assembly
Rower switch
Motor assembly
Fig.8
Fig.9
