JVC KS-FX385 Schematic Diagrams
4
of 1
of 1 rating
14 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
2-7
SHEET 2

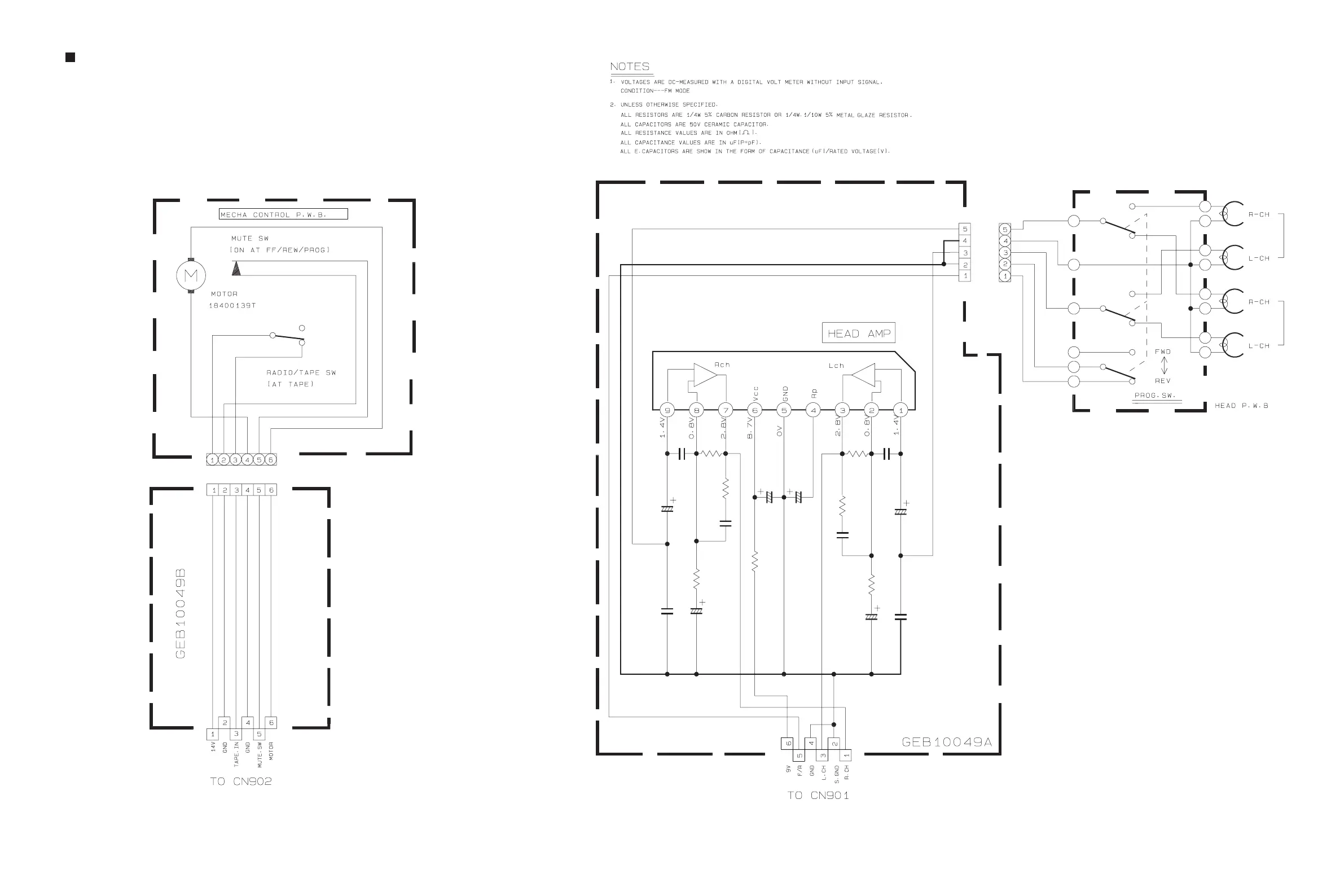

Head amplifier section
CP722
CP721
C203
C103
CJ901
IC901
R204
R104
C901
CP901
C902
C201
C101
C202
C102
R203
R103
C204
C104
R201
R101
C205
C105
R901
QGA2002F1-06
QGB1214K1-06S
100p
100p
QGA2002C1-05
AN7310N
330k
330k
QGB1214K1-06S
820p
820p
0.47/50
0.47/50
100
100
47/6.3
47/6.3
15k
15k
0.01
0.01
100/10
100
10/10
(SHEET 1)
(SHEET 1)
8
10
Table of Contents
Topcover
1
Block diagram (For UT, UH, U version)
3
Standard schematic diagrams (For UT, UH, UN, U version)
4
Block diagram (For UT3, UH3, UN3, U3 version)
7
Standard schematic diagrams (For UT3, UH3, UN3, U3 version)
8
Printed circuit boards
11
Backcover
14
