KS-FX483R,KS-FX480R,KS-FX43R
(No.49812)1-11

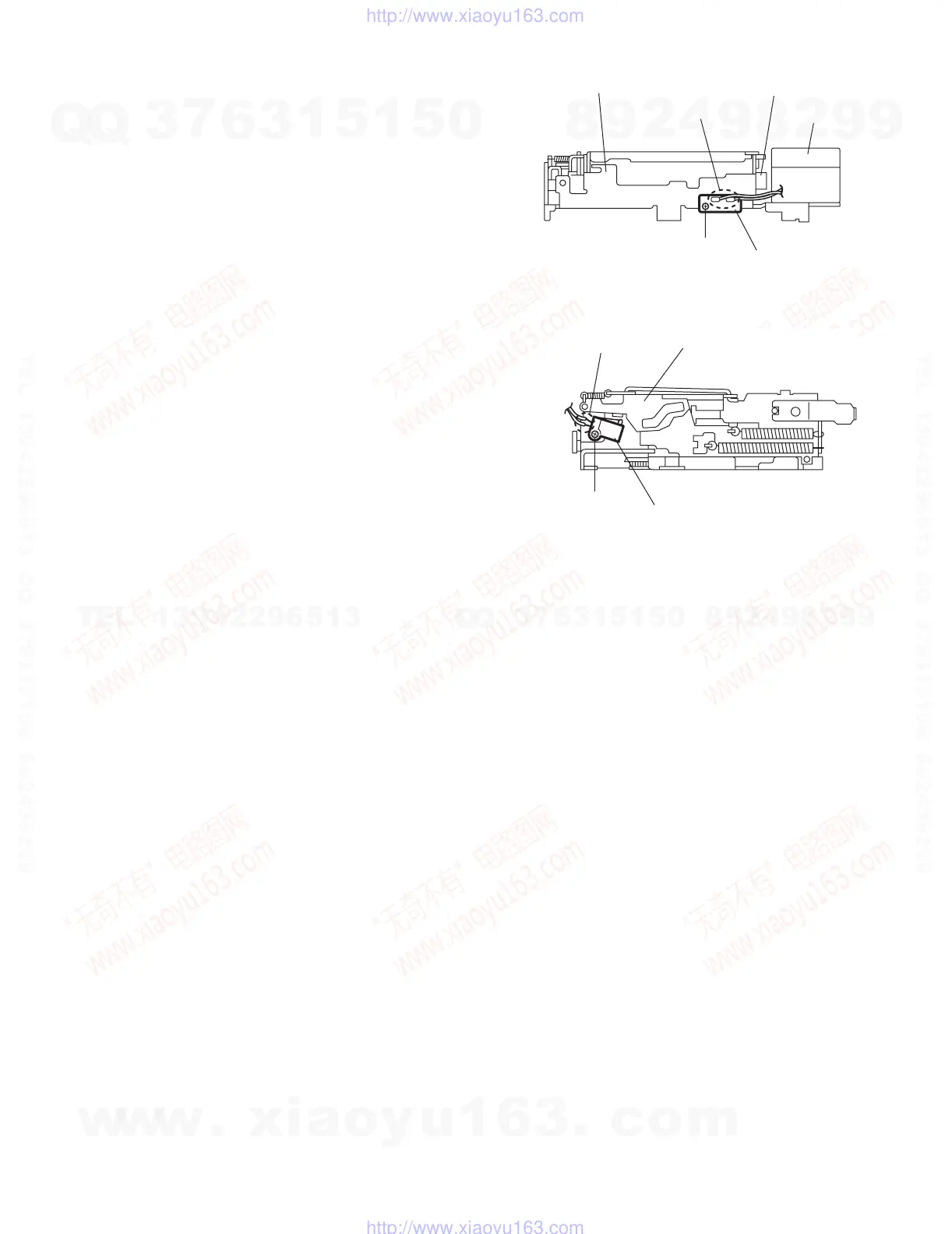

2.2.11 Removing the mute switch board
(See Fig.8)
(1) Unsolder the two wires l on the mute switch board on the
back of the cassette mechanism assembly.
(2) Remove the screw H attaching the mute switch board.
Fig.8
2.2.12 Removing the power switch
(See Fig.9)
• Prior to performing the following procedure, remove the motor
assembly.
(1) Unsolder the two wires m on the power switch on the side
of the cassette mechanism assembly.
(2) Remove the screw I attaching the power switch.
Fig.9
Cassette mechanism assembly
Soldering l
H
Mute switch board
Rower switch
Motor assembly
Soldering m
I
Power switch
Cassette mechanism assembly
