KS-FX483R,KS-FX480R,KS-FX43R
1-4 (No.49812)

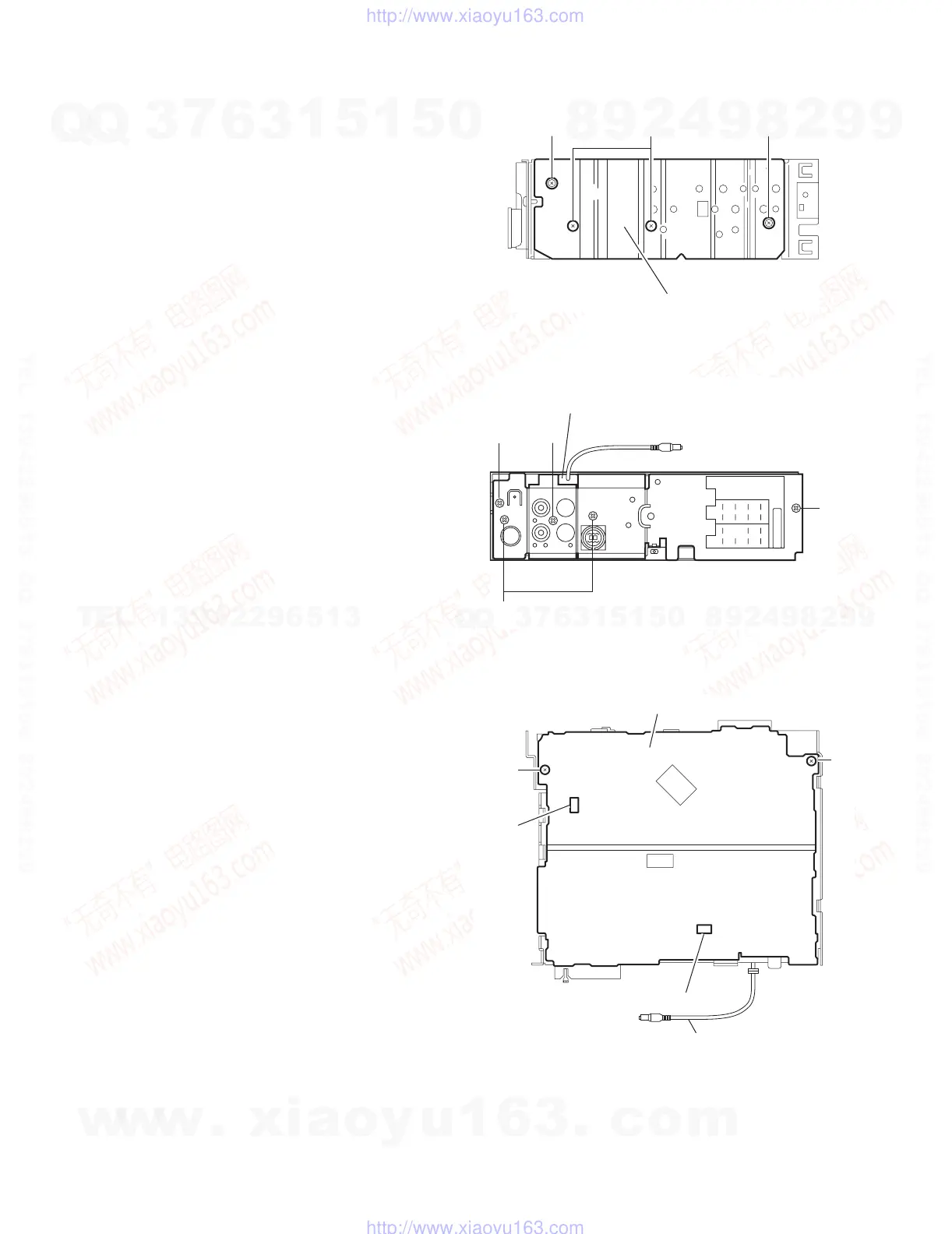

2.1.4 Removing the heat sink
(See Fig.4)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the two screws B and two screws C attaching the
heat sink on the left side of the body, and remove the heat
sink.
Fig.4
2.1.5 Removing the rear panel
(See Fig.5 )
• Prior to performing the following procedure, remove the front
panel assembly and bottom cover.
(1) Remove the two screws D, two screws E and screw F at-
taching the rear panel on the back of the body.
Reference:
During reassembly, before fixing the rear panel onto the main
body, insert the ST remote wire into the slot. (For KS-FX43R
only)
Fig.5
2.1.6 Removing the main board
(See Fig.6)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, front chassis, heat sink and
rear panel.
(1) Remove the two screws G attaching the main board on the
top chassis.
(2) Disconnect the two connectors CN901 and CN902 on the
main board from the cassette mechanism assembly.
Fig.6
Heat sink
CB C
D F
E
D
Insert ST remote cable
into the slot (KS-FX43R only)
G
G
Main board
CN901
ST remote cable
(KS-FS43R only)
