KW-XC828
Prior to performing the following procedure, remove
the top cover, the connector board, the chassis unit,
and the clamper assembly.
Remove the screw H.
Move the top plate assembly in the direction of the
arrow to release the two joints p.
Unsolder the wire marked q if necessary.
1.
2.
3.
Removing the top plate assembly
(See Fig.20)
Prior to performing the following procedure, remove
the top cover, the connector board and the clamper
unit.
Turn the trigger arm in the direction of the arrow to
release the joint k and pull out upward.
1.
Removing the trigger arm
(See Fig.18 and 19)
When reassembling, insert the part l and
m of the trigger arm into the part n and
o at the slot of the chassis rivet
assembly respectively and join the joint
k at a time.
CAUTION:

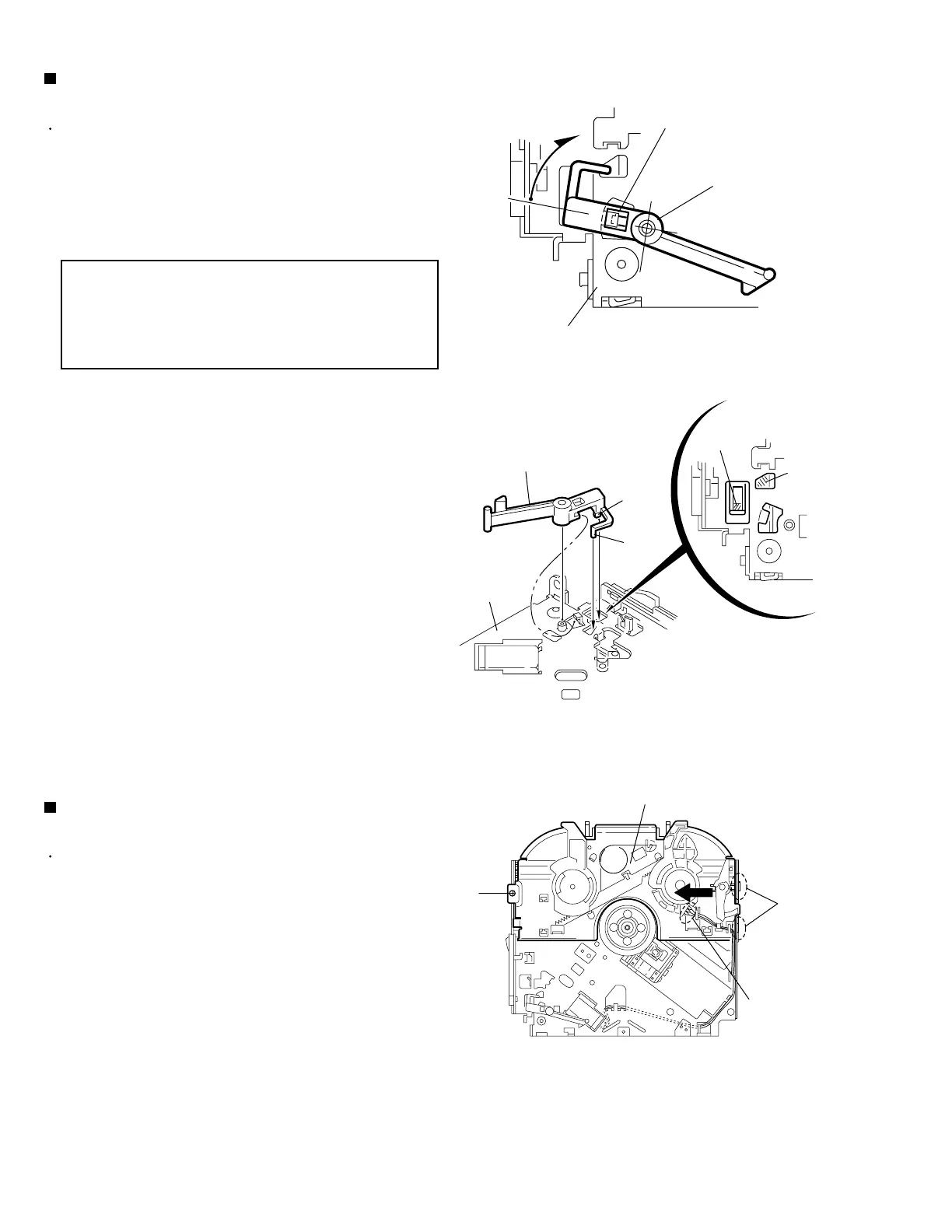

Fig.18
Fig.19
Fig.20
Joint k
Trigger arm
Trigger arm
Chassis rivet assembly
Chassis rivet assembly
Part n
Part l
Part m
Part o
Top plate assembly
Joints p
q
H
