1-19
KW-XC828
Turn the mode gear to set to RVS play or
subsequent mode.
Remove the cassette guide from the main chassis
while releasing each two joint tabs a in the direction
of the arrow.
1.
2.

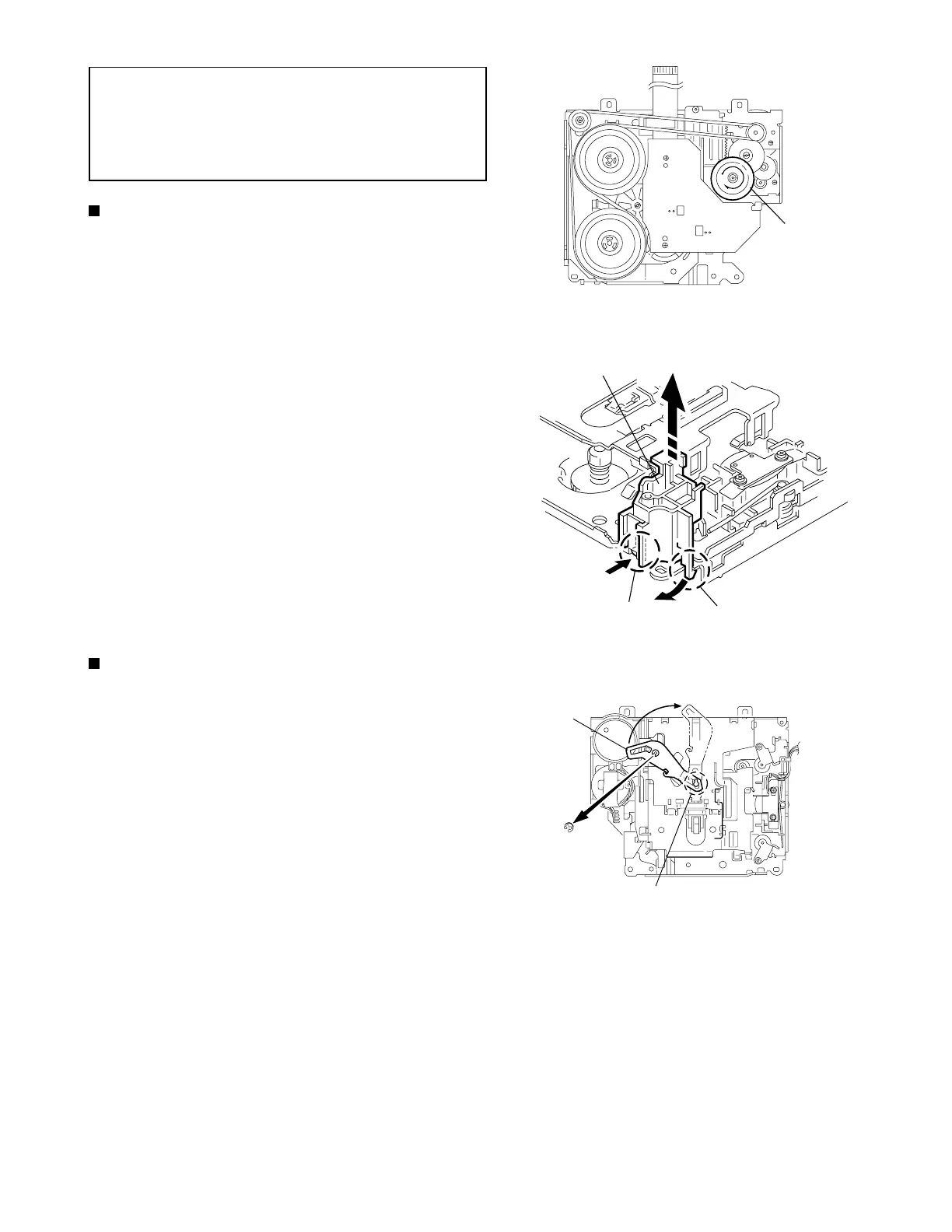

Removing the cassette guide (See Fig.2)
Prior to performing the following
procedures, turn the mode gear on the
bottom of the body until the respective part
comes to the EJECT position (Refer to
Fig.1).
REFERENCE:
Remove the E-washer attaching the load arm.
Move the load arm in the direction of the arrow and
release the joint b on the cassette catch.
1.
2.
Removing the load arm (See Fig.3)
Fig.1
Fig.2
Mode gear
Cassette guide
Tab a
Tab a
Fig.3
Load arm
E-washer
Joint b
