Move the gear base arm in the direction of the arrow.
Insert a slotted screwdriver to the gear base spring
under the gear base arm, and release the gear base
arm upward from the boss on the gear base
assembly.
Remove the gear base arm from the main chassis
while releasing the two joints s.
Move the gear base link assemby in the direction of
the arrow to release the two joints t.
1.
2.
3.
4.
Removing the gear base arm / gear base
link assembly (See Fig.25 to 27)
Push each joint hook u of the FFC pad and remove
toward the bottom.
1.
Removing the FFC pad
(See Fig.27 and 29)
When reattaching the gear base arm,
make sure that the boss on the gear
base assembly is inside the gear base
spring.
REFERENCE:

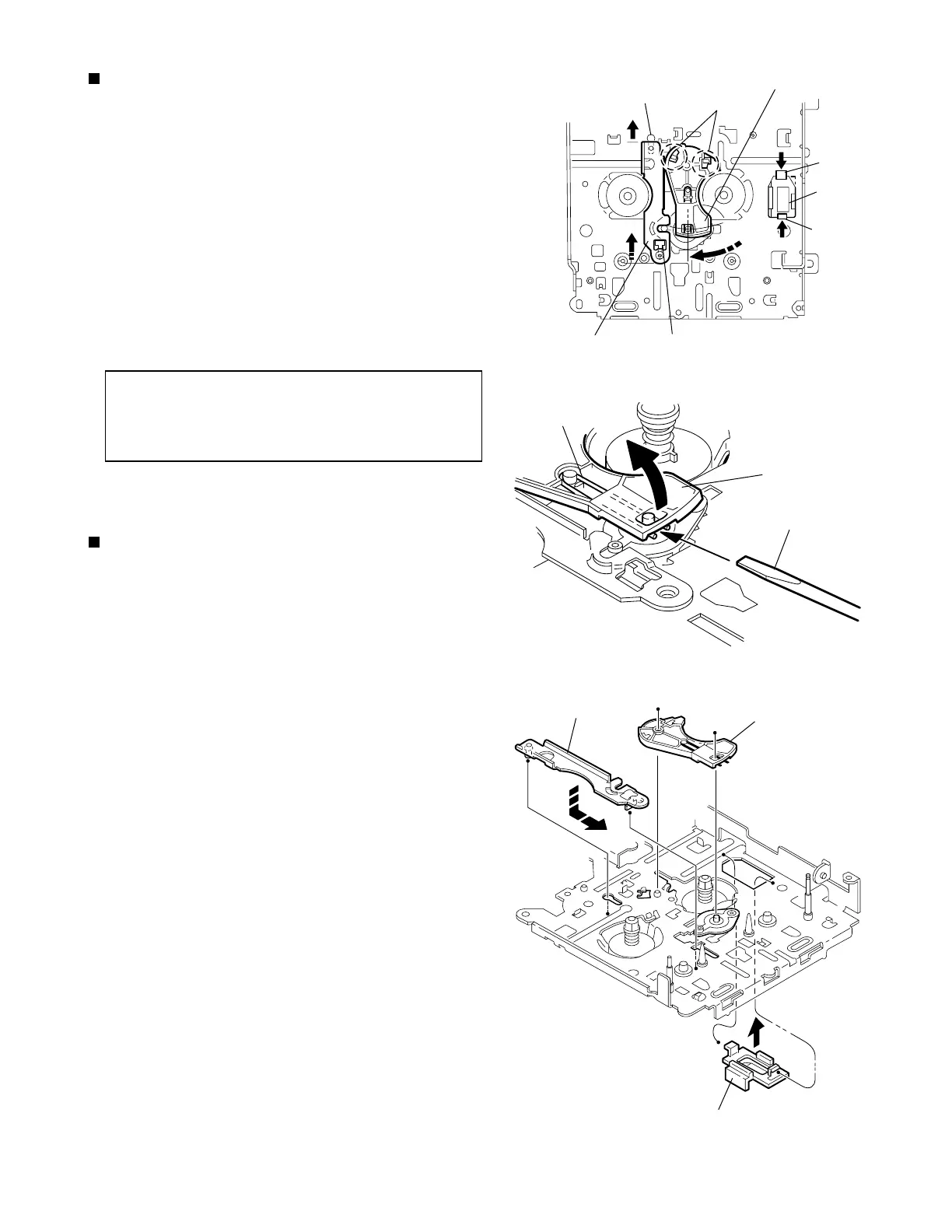

Fig.25
Fig.26
Fig.27
FFC pad
Gear base link assembly
Gear base arm
Gear base
link assembly
Gear base arm
FFC pad
Joint t
Joint t
Joints s
Hook u
Hook u
Gear base arm
Screwdriver
Gear base spring
