JVC KW-XC888 - Page 40

1-40 (No.MA081)

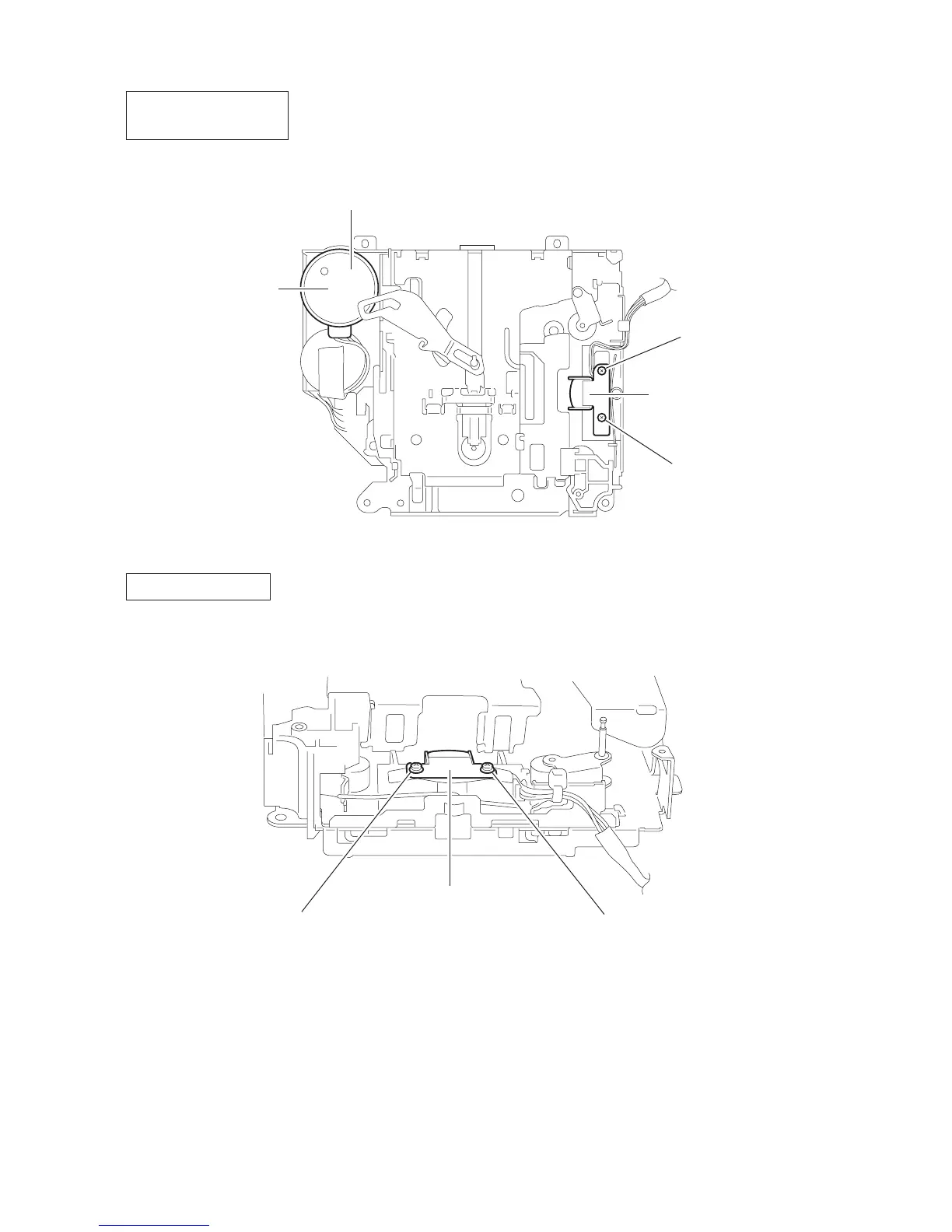

4.1.6 Arrangement of adjusting & test points
Head section view
Cassette mechanism
(Surface)
Azimuth screw
A
(Forward)
Playback head
Tape speed adjust
Motor assembly
Azimuth screw B
(Reverse)
Azimuth screw A
(Forward)
Playback head
Azimuth screw B
(Reverse)
