Connections
18

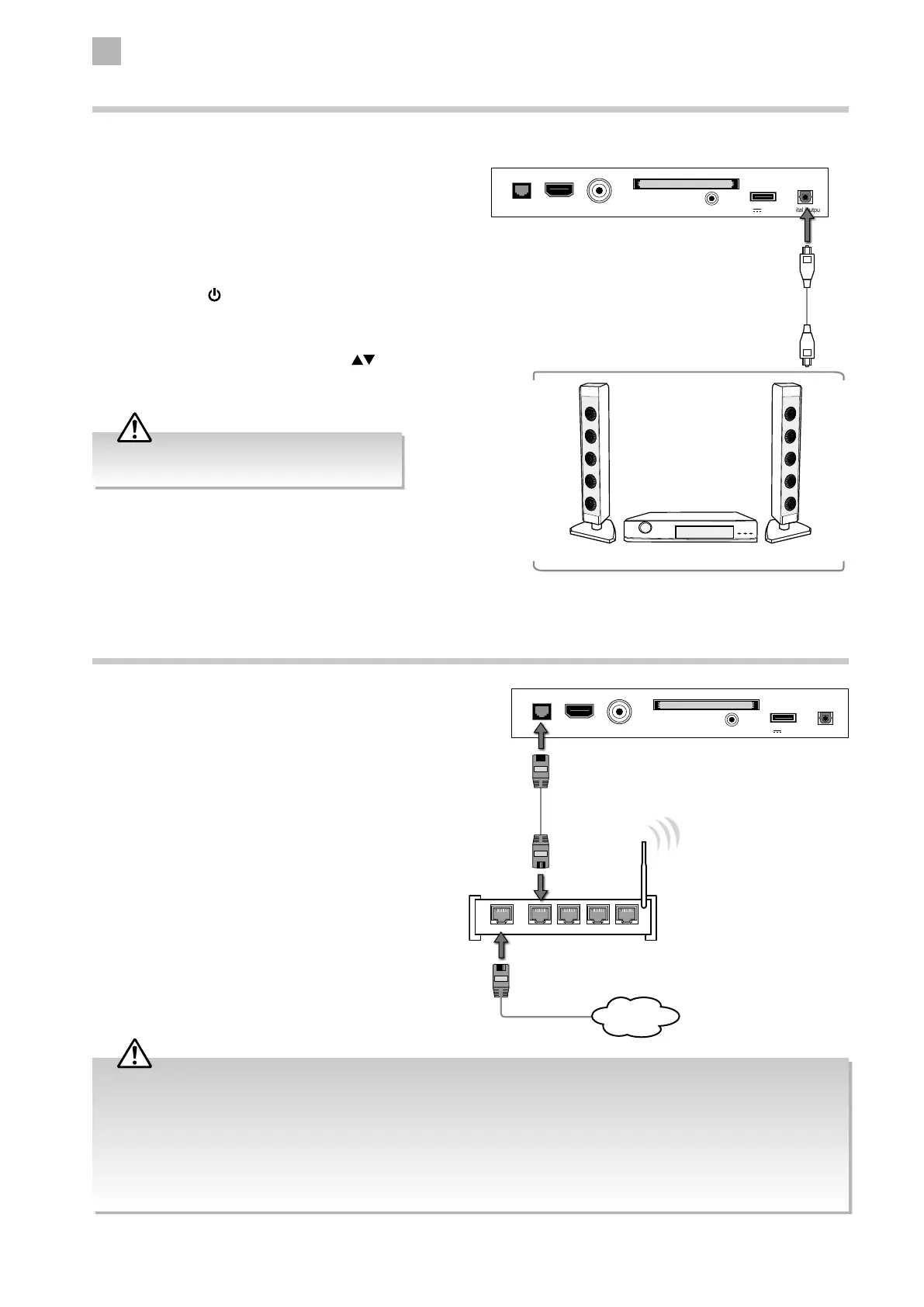

Connecting an Audio Receiver
For better sound quality, you may want to play the audio through your multi-channel audio receiver.
1. Use an optical cable to connect the TV’s Digital
Audio Output (optical) socket to an external audio
receiver’s audio input socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the center of joystick function button under the
TV frame or the
button on the remote control to
turn on your TV.
4. Press the INPUT button on the remote control to
display the Input Source menu. Use the
buttons
on the remote control to select the desired input
source and then press the OK button to confirm.
The TV’s volume will not be affected. You may
control the audio level via the Audio Receiver.
Audio Receiver
Rear Right Side View of TV
LAN RF
COMMON INTERFACE (CI)
HEADPHONES
USB
5V 500mA
Digital Output
HDMI2
Optical Cable
(not included)
Connecting to Network
Connects your TV to the internet router by an
Ethernet cable. It allows access to some IP channels
that are available on T2 products. These are accessible
through the normal EPG / channel list. It can also
allow access to Red button plus services on some TVs.
Wired a Network Connection
Use an LAN or Ethernet cable (CAT5 or better with
RJ45 connector) to connect the TV’s LAN socket to the
corresponding port on your router.
• This unit cannot be connected to a standalone modem directly. A router or a modem incorporated with a router has to be
used.
• When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the
LAN cable but unplug while pressing down on the lock.
• Do not connect a modular phone cable to the LAN socket.
• Since there are various connection configurations, please follow the specifications and instructions of your
telecommunication carrier, Internet service provider, and router setting guidebook.
1WAN 2 3 4
Rear Right Side View of TV
LAN RF
COMMON INTERFACE (CI)
HEADPHONES
USB
5V 500mA
Digital Output
HDMI2
Ethernet Cable
(not included)
Internet
