Setting up your TV
Make sure all the devices and the TV are turned off.
The names of the devices shown in the following illustration are examples.
Note
When using EXT-3 terminal, you can use the cable clamp to tidy the cables.
Please read the user manuals of each device before setting up.
Connecting cables are not supplied with this TV.
You can tidy the cables using the cable clamp on the back of the stand.
Find the best connections that are possible with your devices. Æ (P. 11)

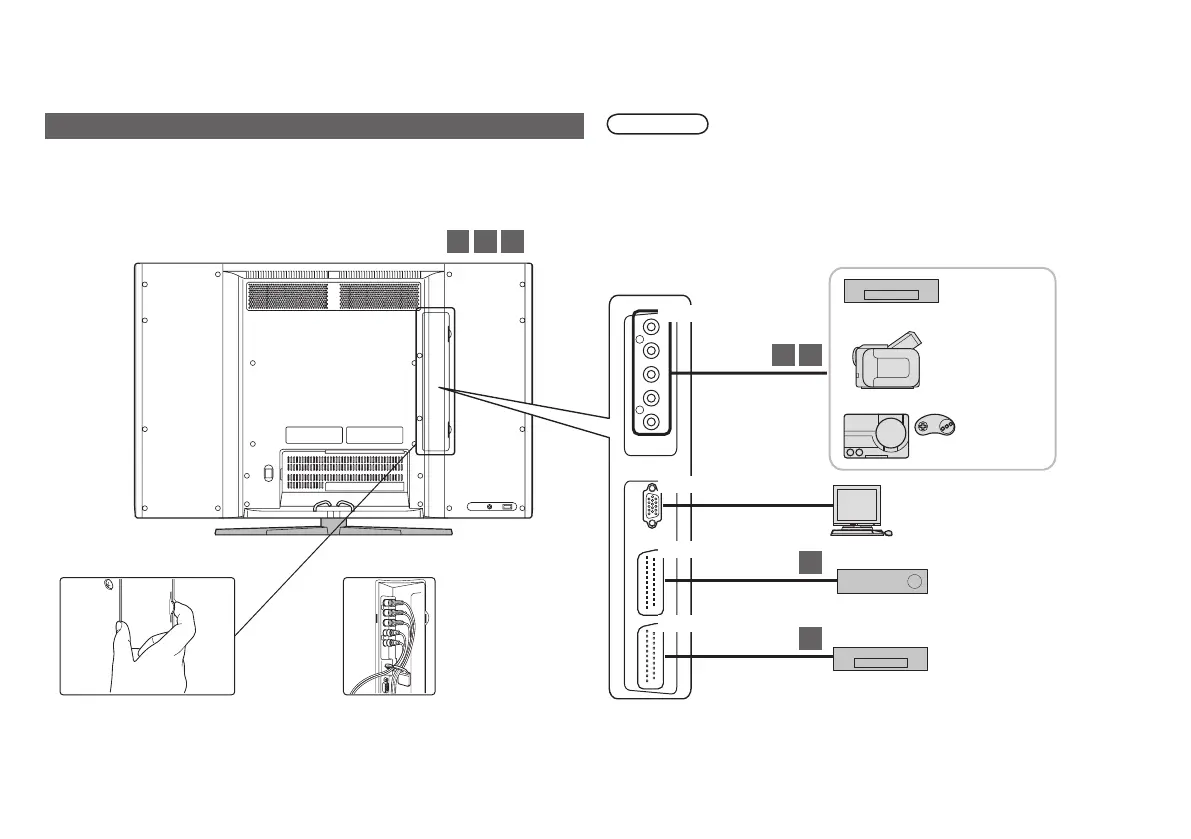

Connecting external devices
: type of connections
C D E
DVD player
Video camera
Game consoles
C E
D
D
EXT-1
EXT-2
EXT-1 Satellite broadcast tuner
EXT-2 VCR / DVD recorder
PC IN (D-SUB)
PC terminal
Refer to P. 48
EXT-3
Removing the terminal cover Using the cable clamp*
To remove the terminal cover, press both tips at same time.
When attaching the TV to the wall, make sure to remove the terminal cover rst.
Make sure to keep the terminal cover incase you need to attach the cover back on.
For LT-47DV1BU, the cable clamp will not be equipped.
*
