Setting up your TV

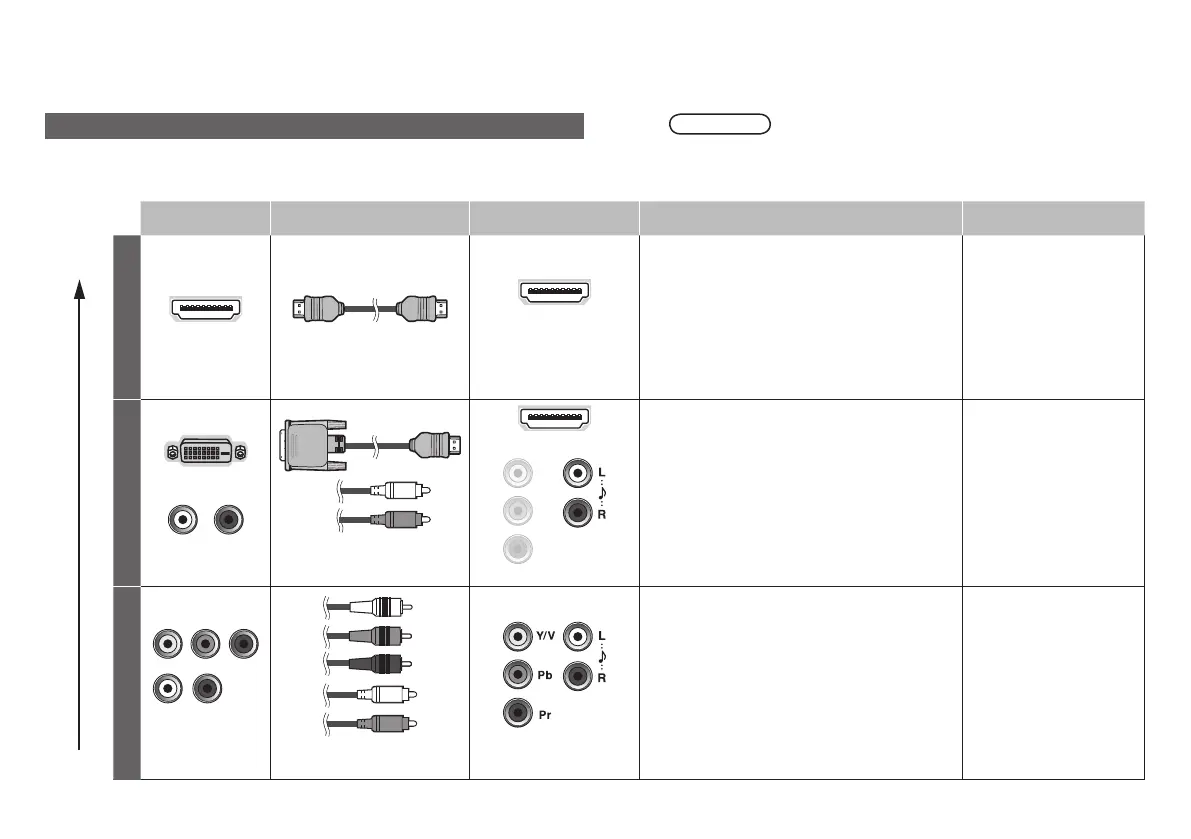

You can connect your TV to other devices in different ways. Check your devices and
choose the best connection. In addition, please read “Notes” before using.
quality
Other devices Connecting cables Connect to your TV Available signals Notes
Best
A
HDMI
HDMI cable
EXT-4
EXT-5
EXT-6
Input
HDMI (digital)
SD: 576i (625i), 480i (525i)
ED: 576p (625p), 480p (525p)
HD: 1080i (1125i), 1080p (1125p) / 24Hz,
1080p (1125p) / 50Hz,
1080p (1125p) / 60Hz,
720p (750p)
Audio L / R

HDMI
TM
(HDMI
TM
CEC
Support)
Please use a High
Speed HDMI
TM
Cable.
High Speed HDMI
TM
Cable are tested to
carry an HD signal up
to 1080p and higher.
B
DVI
Audio
DVI-HDMI cable,
Audio cable
EXT-4
EXT-3: L and R jacks
Input
DVI (digital)
SD: 576i (625i), 480i (525i)
ED: 576p (625p), 480p (525p)
HD: 1080i (1125i), 1080p (1125p) / 24Hz,
1080p (1125p) / 50Hz,
1080p (1125p) / 60Hz,
720p (750p)
Audio L / R (analogue)


Better
C
Component
video and Audio
Component video cable,
Audio cable
EXT-3
Input
Component (analogue)
SD: 576i (625i), 480i (525i)
ED: 576p (625p), 480p (525p)
HD: 1080i (1125i), 720p (750p)
Audio L / R (analogue)


Change the EXT-3
setting from “Composite”
to “Component”. (P. 27)
Note
Please do not change any of the menu settings before
completing the “Initial settings” (P. 13). Otherwise, the “Initial
settings” will not start automatically.

Choose your best connection
