MX-DVB10
1-8
Prior to performing the following procedures, remove
the metal cover, the tuner board and the DVD
changer mechanism assembly.
Remove the plastic rivet attaching the main board.
Disconnect the card wires from the connector
CN500, CN505 and CN510 on the main board
respectively.
Remove the tie band and disconnect the wire from
the connector CN513 on the main board.
Disconnect the wire from the connector CN220 on
the transformer board.
Remove the two screws marked G on the bottom of
the body.
Release the two joints marked a on the lower right
and left sides of the body using a screwdriver, and
remove the front panel assembly toward the front.
1.
2.
3.
4.
5.
6.

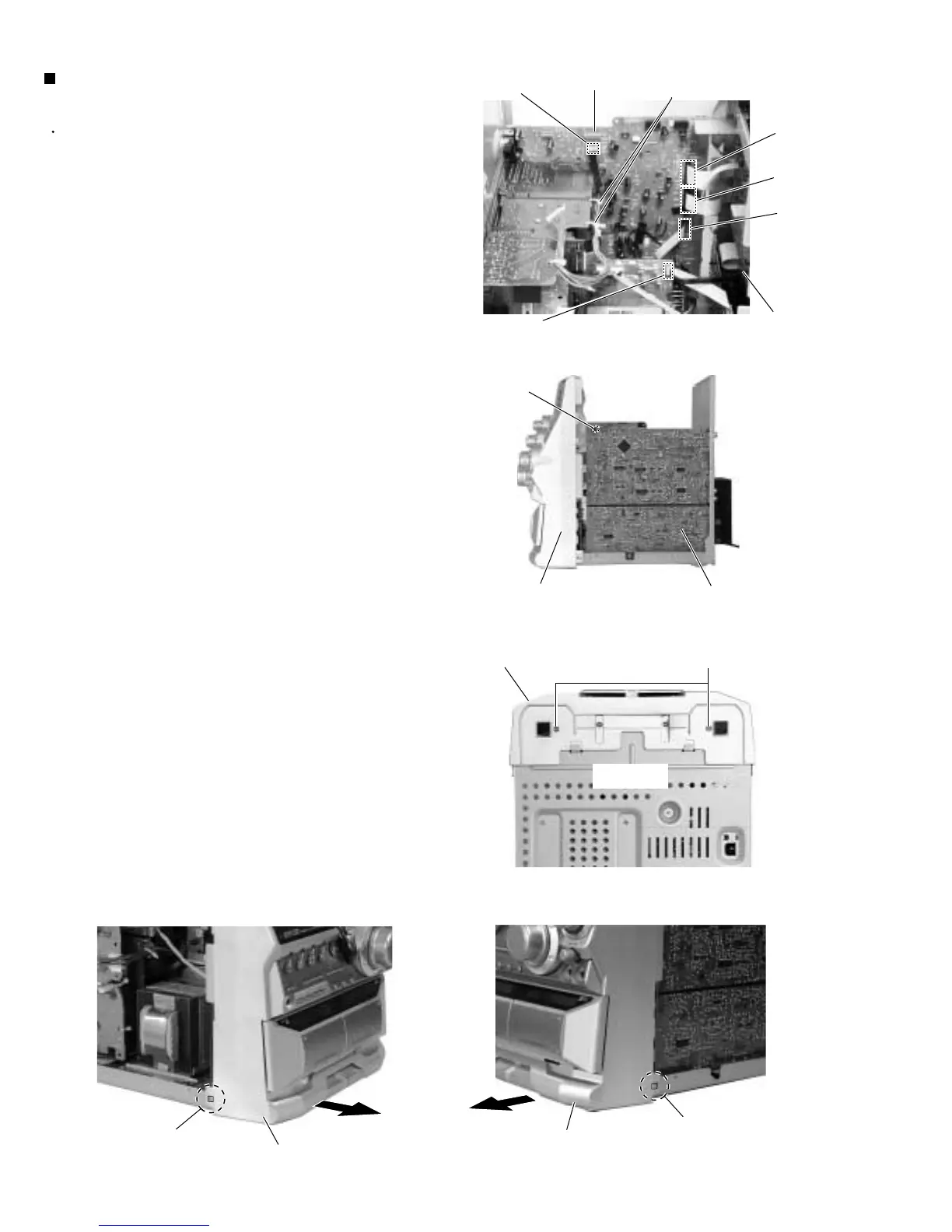

Removing the front panel assembly
(See Fig.7 to 11)
Fig.9
Fig.10
Fig.11
G
(Bottom)
Front panel assembly
Joint a
Joint a
Front panel assembly
Front panel assembly
Fig.7
Fig.8
Tie band
CN500
CN505
CN510
Transformer board
CN220
Front panel
assembly
Front panel assembly
Main board
Plastic rivet
CN513
Main board
