MX-DVB10
1-7
Prior to performing the following procedures, remove
the metal cover and the tuner board.
Disconnect the card wire from the connectors
CN540, CN541 and CN542 on the main board.
Remove the two screws marked D on the upper side
of the body and two screws marked F on the back of
rear panel.
Remove the plastic rivet attaching the main board.
Pull both the rear panel and the front panel assembly
to the outside, then remove the DVD changer
mechanism assembly by lifting the rear part of the
assembly.
1.
2.
3.
4.

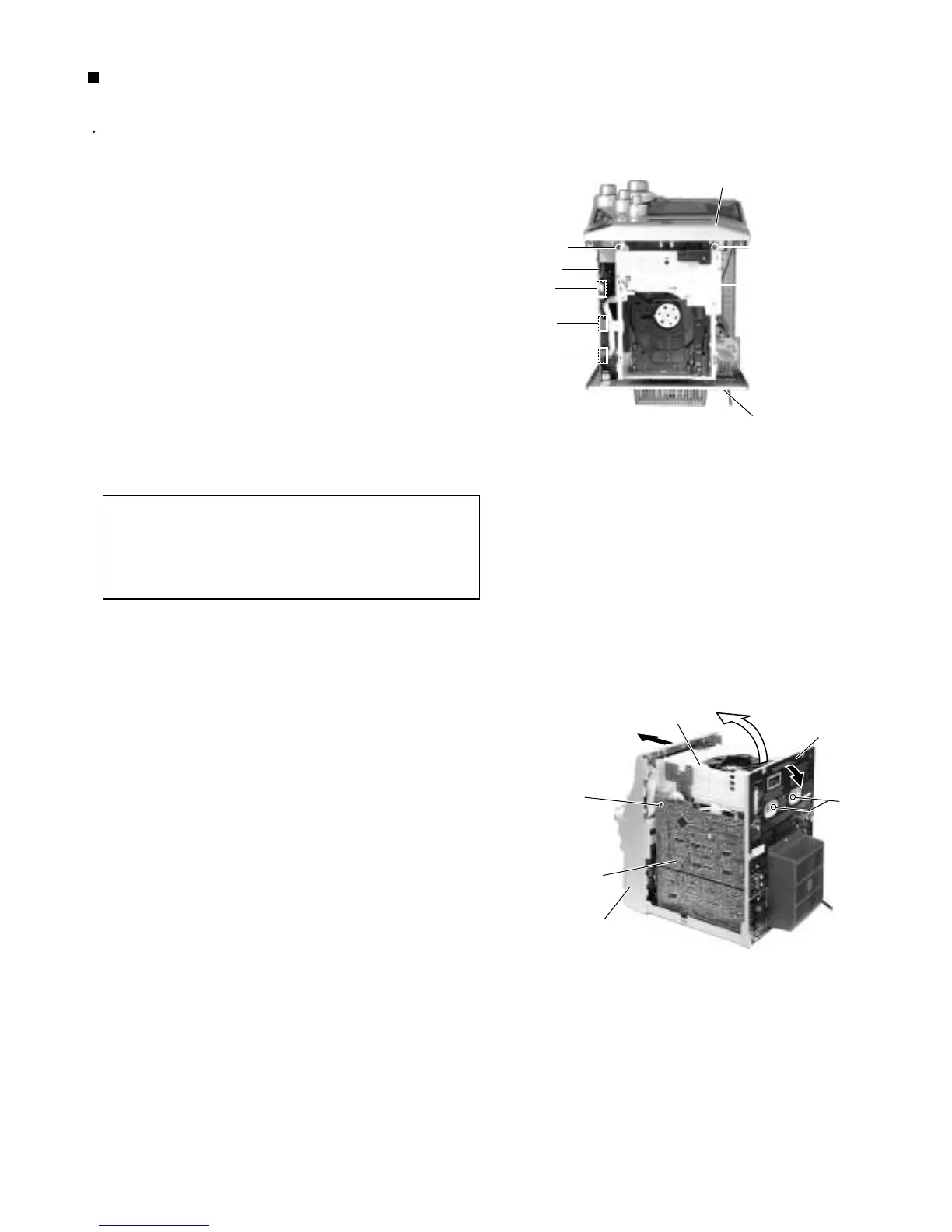

Removing the DVD changer mechanism
assembly (See Fig.5 to 6)
To prevent damage to the DVD fitting,
be sure to pull both the rear panel and
the front panel assembly enough to
remove the DVD changer mechanism
assembly.
CAUTION:
Fig.5
Fig.6
Front panel assembly
D
D
DVD changer
mechanism
assembly
Rear panel
CN542
DVD changer mechanism assembly
F
Front panel assembly
Plastic rivet
Rear panel
CN541
CN540
Main board
Main board
