(No.MB160)1-17
3.1.11 Removing the CD board
(See Fig.29)
• Prior to performing the following procedures, remove the top
cabinet, CD changer mechanism assembly and front cabinet
assembly.
(1) From the inside of the front cabinet assembly, disconnect
the wire from the connector UCW05
on the VFD board.
(2) Remove the four screws W attaching the CD board.
Reference:
When attaching the CD board, align the projections (f, g) of the
front cabinet assembly in the holes of the CD board.
3.1.12 Removing the VFD board
(See Fig.29)
• Prior to performing the following procedures, remove the top
cabinet, CD changer mechanism assembly and front cabinet
assembly.
(1) From the inside of the front cabinet assembly, disconnect
the wire from the connector UCW05
on the VFD board.
(2) Remove the three screws X attaching the VFD board.
(3) Take out the VFD board while releasing the claw h in the
direction of the arrow.
(4) From the forward side of the VFD board, disconnect the
card wire from the connector UCW7
.

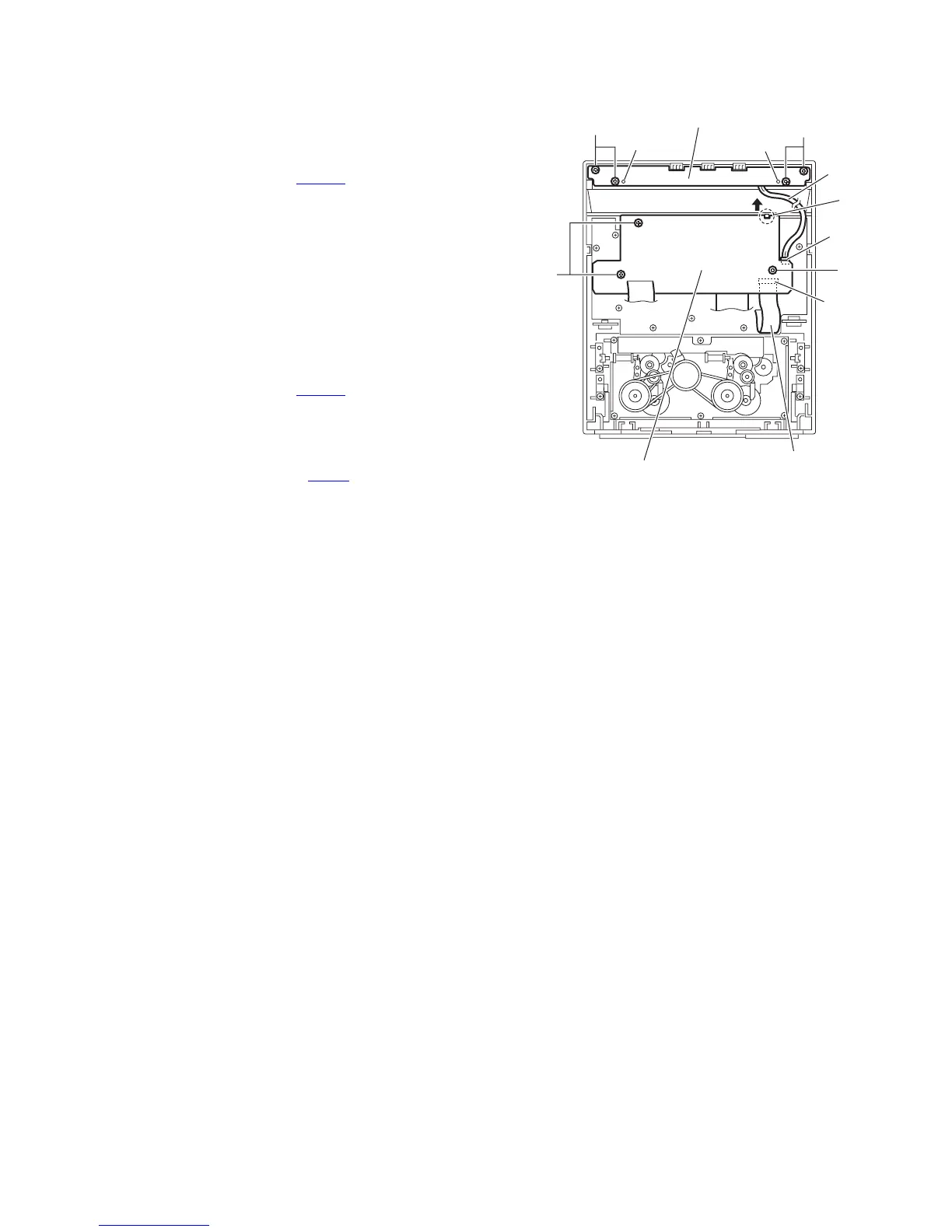

Fig.29
f
g
h
CD board
Wier
UCW05
UCW7
Card wire
VFD board
X
W
W
X
