MX-J100
1-8
Prior to performing the following procedure, remove
the top cover, the side covers, the CD Tray fitting
and the CD changer unit.
There is no need to remove the rear panel.
Disconnect the harness from head wire connector
DW1 and DW2 on the inner side of the mother
(main) board in the body.
Disconnect the harness from connector HCW1 of the
headphone board on the right side of the body.
Remove the three screws F attaching the front panel
assembly on both sides of the body.
Remove the screw V attaching the earth terminal
extending from the front compartment.
Remove the screw G attaching the front panel
assembly on the bottom of the body.
Release the two joints d on both sides and two joints
e on the bottom of the body using a screwdriver. At
the same time, disconnect the front compartment
from connector CCW1 and CCW2 of the
mother(main) board.
1.
2.
3.
4.
5.

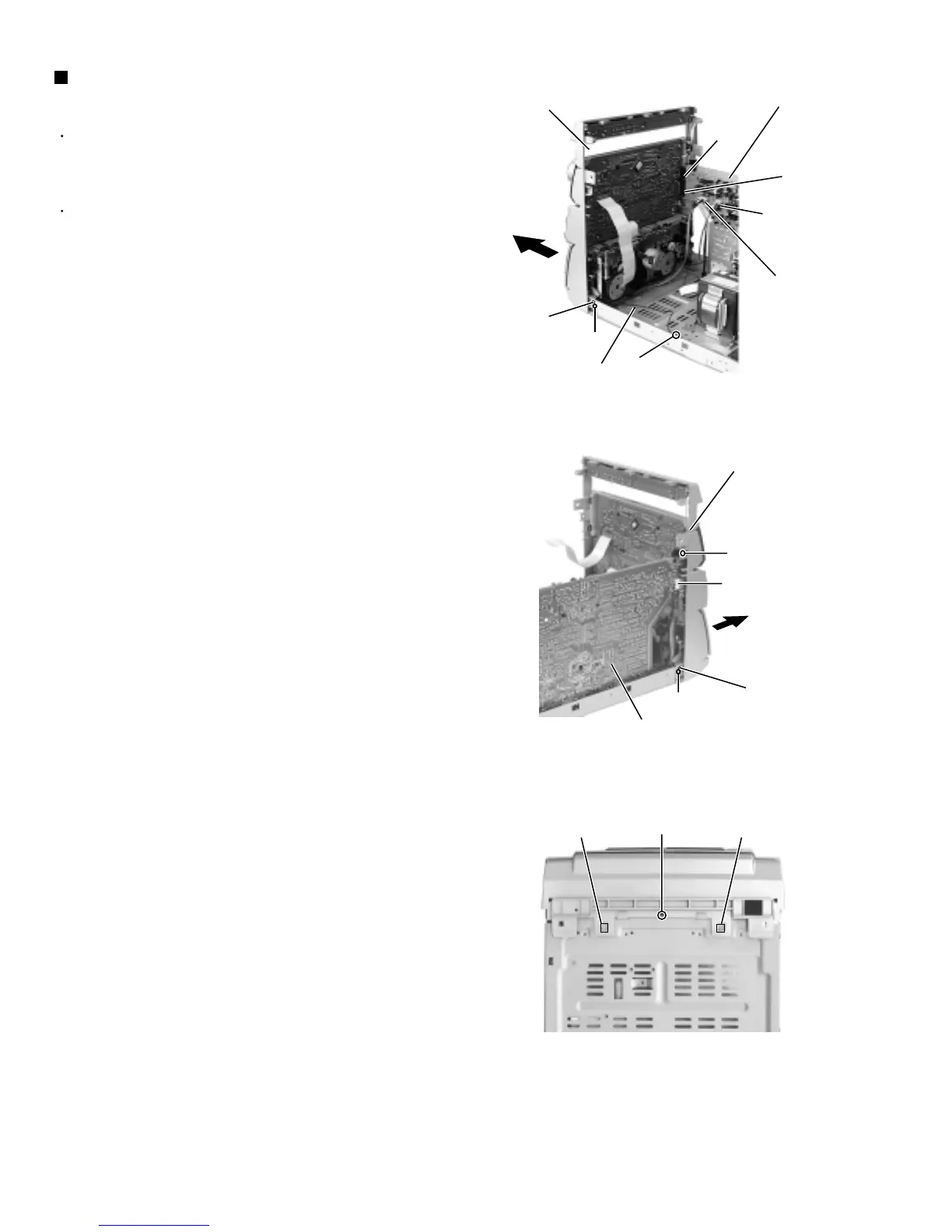

Removing the front panel assembly
(See Fig.11 to 13)
Fig.11
Fig.12
Fig.13
Mother (main) board
DW2
DW1
CCW1
CCW2
Front panel assembly
Joint d
earth wire
F
V
Front panel assembly
F
F
Mother (main) board
Headphone board
HCW1
G
Joint e
Joint e
Joint d
