MX-K1
1-10
Fig.12
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
1.
2.
3.
4.
5.
6.
Disconnect the wires from CN602 and CN603 on
the main PCB, which is located on the backside of
the CD changer unit.
Disconnect the card wire from connector CN604 of
the main PCB at the back of the CD changer unit.
The three screws "I" and the screw with the washer
"J" that retain the main PCB should be removed.
Remove the main PCB by pulling it toward the side
where the CN601 is located.
Using solder, short the CD pickup to connect to
short round.
Disconnect the card wire from the connector
CN601 on the main PCB and then remove the
main PCB.

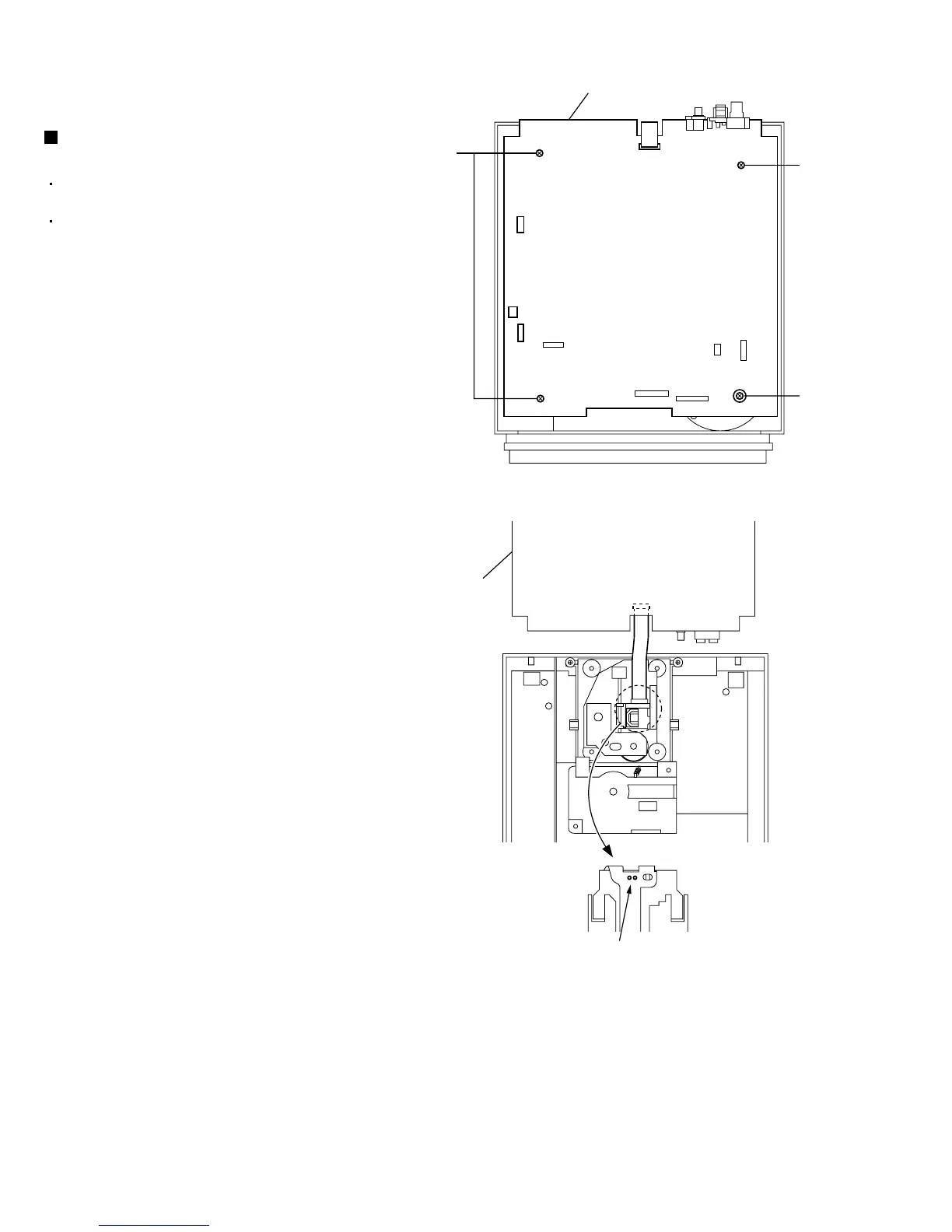

Removing the main PCB
(See Fig.12 and 13)
Fig.13
<Disassembly of units and assembly
inside this set>
[Caution]
After re-connecting the wires, be sure to
remove the shorting solder from the GND
connection.
Main PCB
CN601
CN603CN602
CN604
I
I
J
Main PCB
Short round
CN601
