MX-K1
1-9
Fig.10
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
1.
2.
3.
4.
5.
Disconnect the parallel wire and card wire from the
connectors CN101 and CN901 on the power amp
and supply PCB.
Remove the two screws "G" retaining the front
panel assembly onto the bottom of the body.
Remove the screw "H" retaining the cassette deck
mechanism and then remove the GND lug "b" that
comes from the power amp and supply PCB.
Remove the solder connecting the wire on the
control/FL PCB.
Disengage the claws "c" on both sides at the
bottom of the front panel assembly and then
remove the assembly.

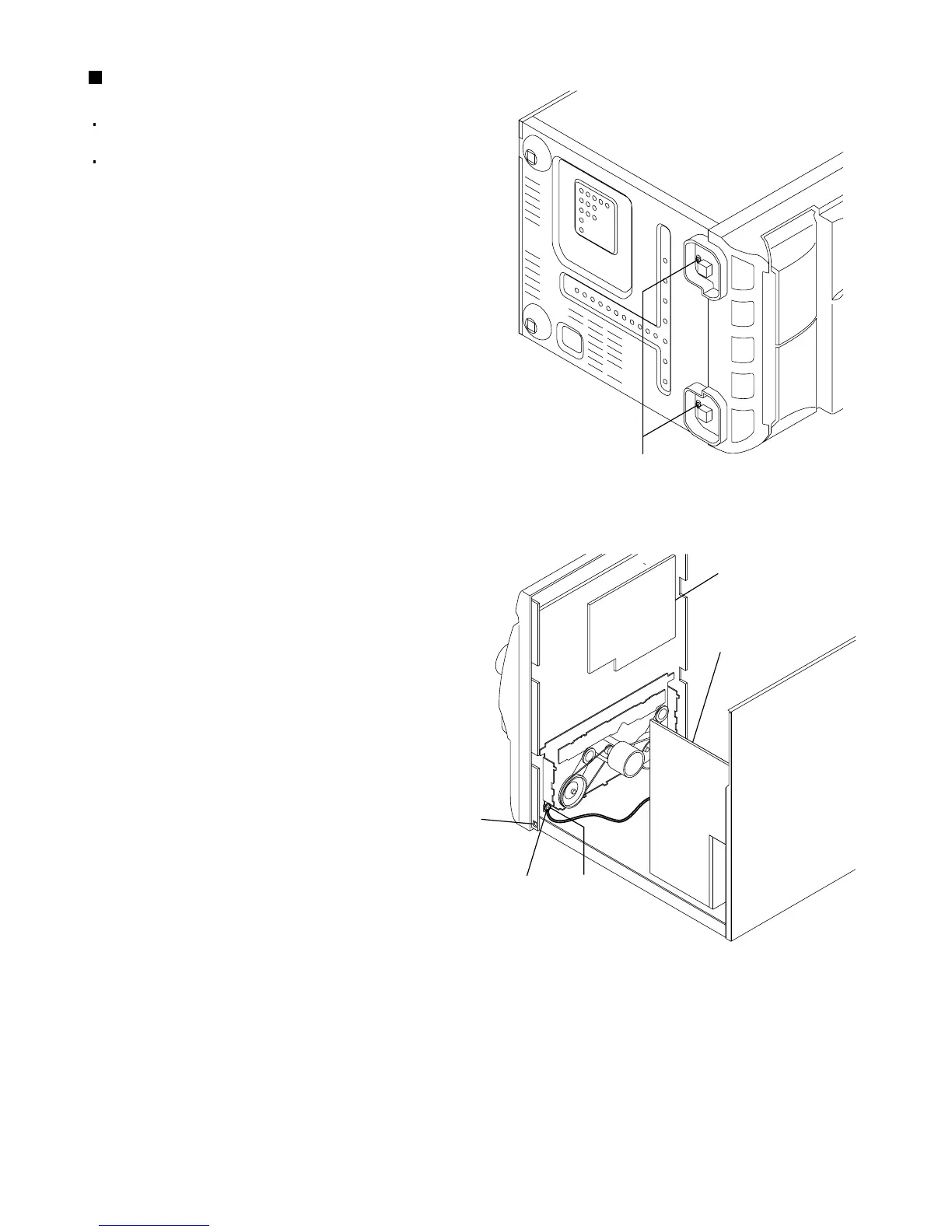

Removing the front panel assembly
(See Fig.10 and 11)
Fig.11
G
H
Power amp and
supply PCB
Control/FL PCB
Claw c
GND lug b
