JVC MX-KA3 Service Manual

MX-KA3
1-20

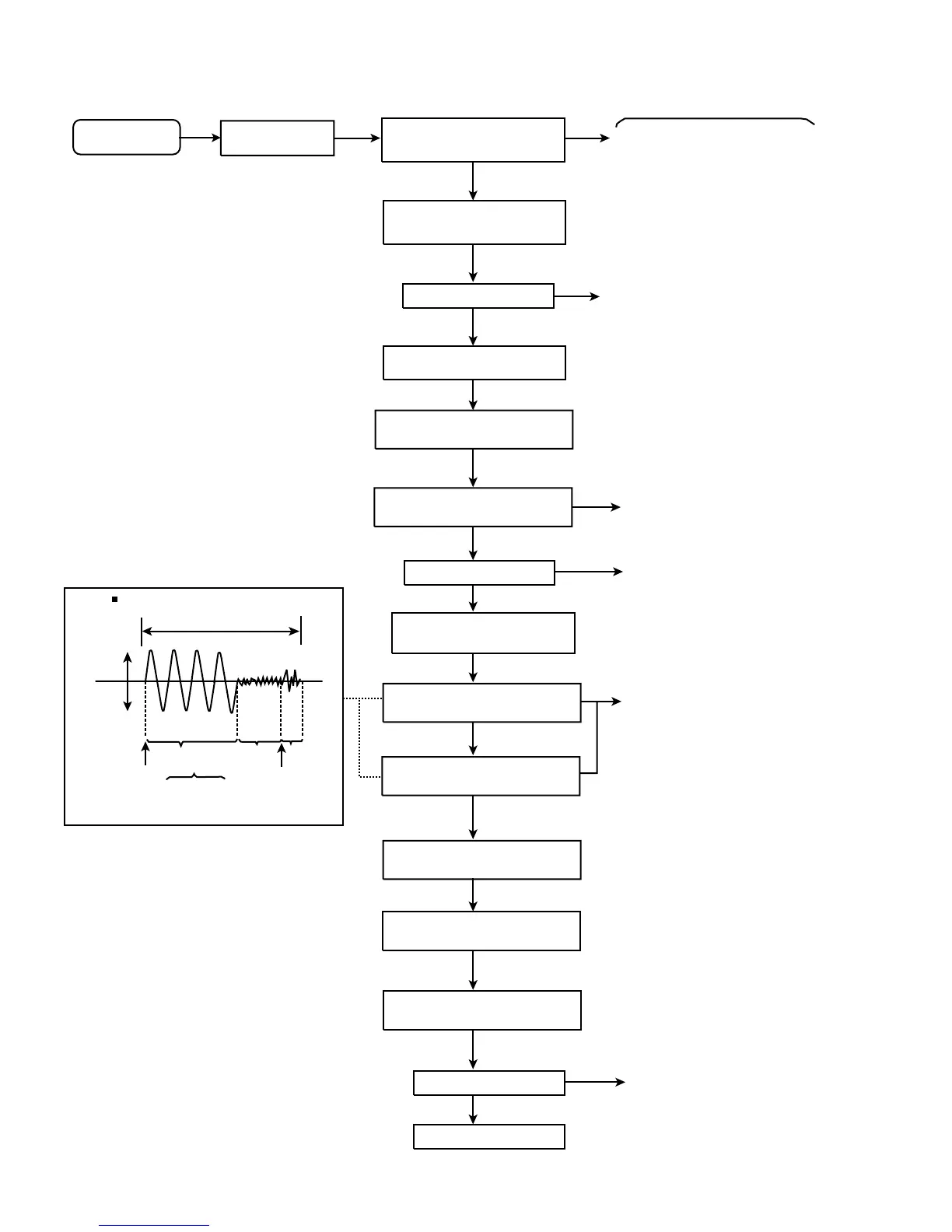

Flow of functional operation until TOC read
Slider turns REST
SW ON.
Automatic tuning
of TE offset
Laser ON
Detection of disc
Automatic measurement of
Focus S-curve amplitude
Automatic tuning of
Focus offset
Disc is rotated
Focus servo ON
(Tracking servo ON)
Automatic tuning of
Tracking error balance
Automatic measurement of
Tracking error amplitude
Automatic tuning of
Focus error balance
Disc to be
braked to stop
Tracking
servo
on states
Tracking
servo
off states
Disc states
to rotate
TOC reading
finishes
Automatic measurement
of TE amplitude and
automatic tuning of
TE balance
500mv/div
2ms/div
Fig-1
Approx.3sec
pin 20 of
IC611(TE)
Approx
0.3V
VREF
Tracking error waveform at TOC reading
Power ON
Play Key
Confirm that the Focus error
S-cuve signal at the pin32 of
IC601 is approx.2Vp-p
Confirm that the signal from
pin24 IC601 is 0V as a
accelerated pulse during
approx.400ms.
Confirm the waveform of
the Tracking error signal.
at the pin 20 of IC611 (R643)
(See fig-1)
Automatic tuning of
Focus error gain
Automatic tuning of
Tracking error gain
TOC reading
Play a disc
Confirm the eys-pattern
at the lead of Pin 5 of IC 611
Confirm that the voltage at the pin5
of CN602 is "H"\"L"\"H".
Check Point
Check that the voltage at the
pin40 of IC601 is + 5V?

JVC MX-KA3 Specifications

General

Output Power	80 W per channel
Input Sensitivity/Impedance	300 mV/50 kΩ
Frequency Response	63 Hz - 12, 500 Hz
Wow And Flutter	0.15% (WRMS)
CD Capacity	3 CDs
Dynamic Range	85 dB
Signal-To-Noise Ratio	85 dB
FM Tuner Tuning Range	87.5 MHz - 108.0 MHz
AM Tuner Tuning Range	530 kHz - 1, 710 kHz
Dimensions	267 mm x 305 mm x 433 mm
Mass	7.5 kg
Type	3-way bass-reflex type
Woofer	13.5 cm cone
Mid	5 cm cone
Tweeter	2 cm dome
Power Handling Capacity	80 W
Impedance	6 Ω
Frequency Range	45 Hz - 22, 000 Hz
Sound pressure level	89 dB/W.m
Dimensions	228 mm x 316 mm x 258 mm
Mass	3.1 kg
Power Requirements	AC 120 V, 60 Hz
Power Consumption	125 W (power on mode)
Power Consumption in Standby Mode	17 W
