JVC MX-KA3 Service Manual

MX-KA3
1-33

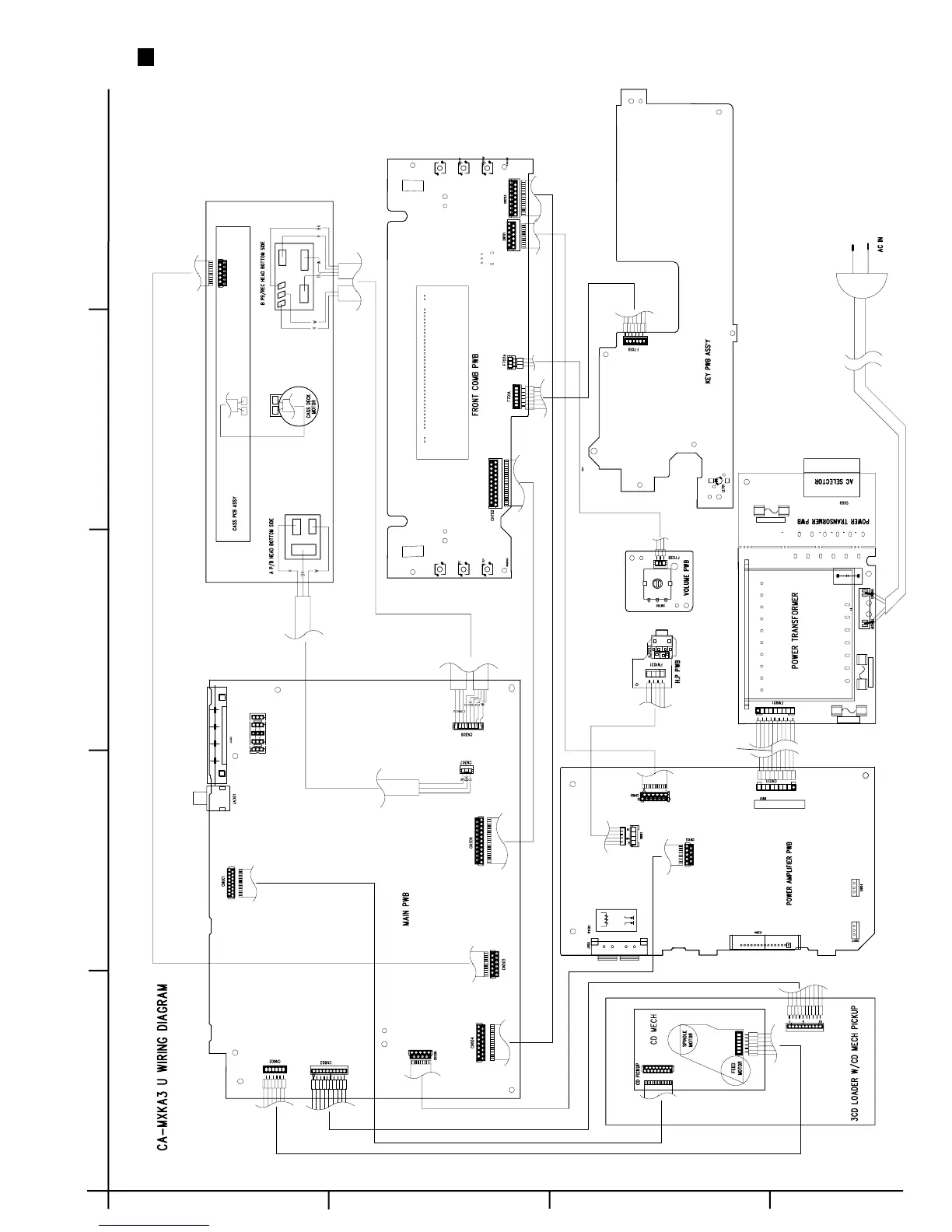

Wiring Connection
AB C
1
2
3
4
5
P/N : BI1205441U
P/N : BI12P402341
P/N : BI12P60142U
P/N : BI12P100035U
P/N : BI1205261U
P/N : BI12P30215U
P/N : BI1205291U
P/N : BI12P80102U
P/N : BI1205241U
P/N : BI1205251U
P/N : BI1205281U
P/N : BI1203941
P/N : BI12P60143U
P/N : BI12P90054U

JVC MX-KA3 Specifications

General

Output Power	80 W per channel
Input Sensitivity/Impedance	300 mV/50 kΩ
Frequency Response	63 Hz - 12, 500 Hz
Wow And Flutter	0.15% (WRMS)
CD Capacity	3 CDs
Dynamic Range	85 dB
Signal-To-Noise Ratio	85 dB
FM Tuner Tuning Range	87.5 MHz - 108.0 MHz
AM Tuner Tuning Range	530 kHz - 1, 710 kHz
Dimensions	267 mm x 305 mm x 433 mm
Mass	7.5 kg
Type	3-way bass-reflex type
Woofer	13.5 cm cone
Mid	5 cm cone
Tweeter	2 cm dome
Power Handling Capacity	80 W
Impedance	6 Ω
Frequency Range	45 Hz - 22, 000 Hz
Sound pressure level	89 dB/W.m
Dimensions	228 mm x 316 mm x 258 mm
Mass	3.1 kg
Power Requirements	AC 120 V, 60 Hz
Power Consumption	125 W (power on mode)
Power Consumption in Standby Mode	17 W
