(No.MB350)1-13
3.1.5 Removing the power board
(See Fig.15 to 19)
• Prior to performing the following procedure, remove the metal
cover/ rear cover, the CD fitting and the CD changer mecha-
nism unit.
(1) Disconnect the wire from connector CN903
and CN202 on
the power board.
(2) Disconnect the card wire from connector CW601
on the
power board.
(3) From the back of the body, remove the four screws G and
the three screws H attaching the power board.
(4) Release the two tabs f from the notch of the rear panel.
Move the power board in the direction of the arrow and re-
move frontward.
(5) From the bottom of the power board, remove the four
screws J attaching the heat sink.
(6) Remove the two screws K attaching the heat sink.

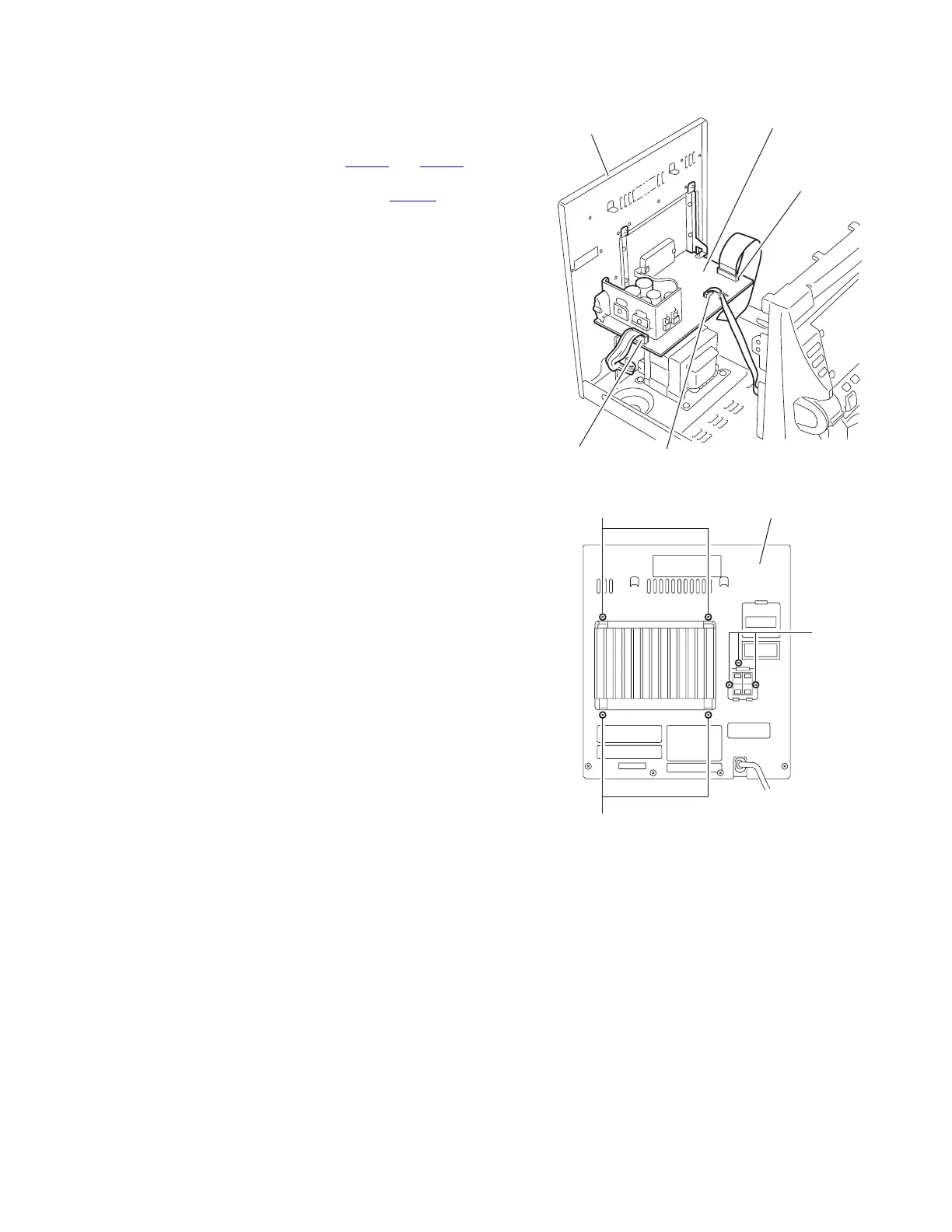

Fig.15
Fig.16
CN903
CN202
CW601
Rear panel
Power board
G
G
H
Rear panel
