JVC MX-KC4 Service Manual

2-1

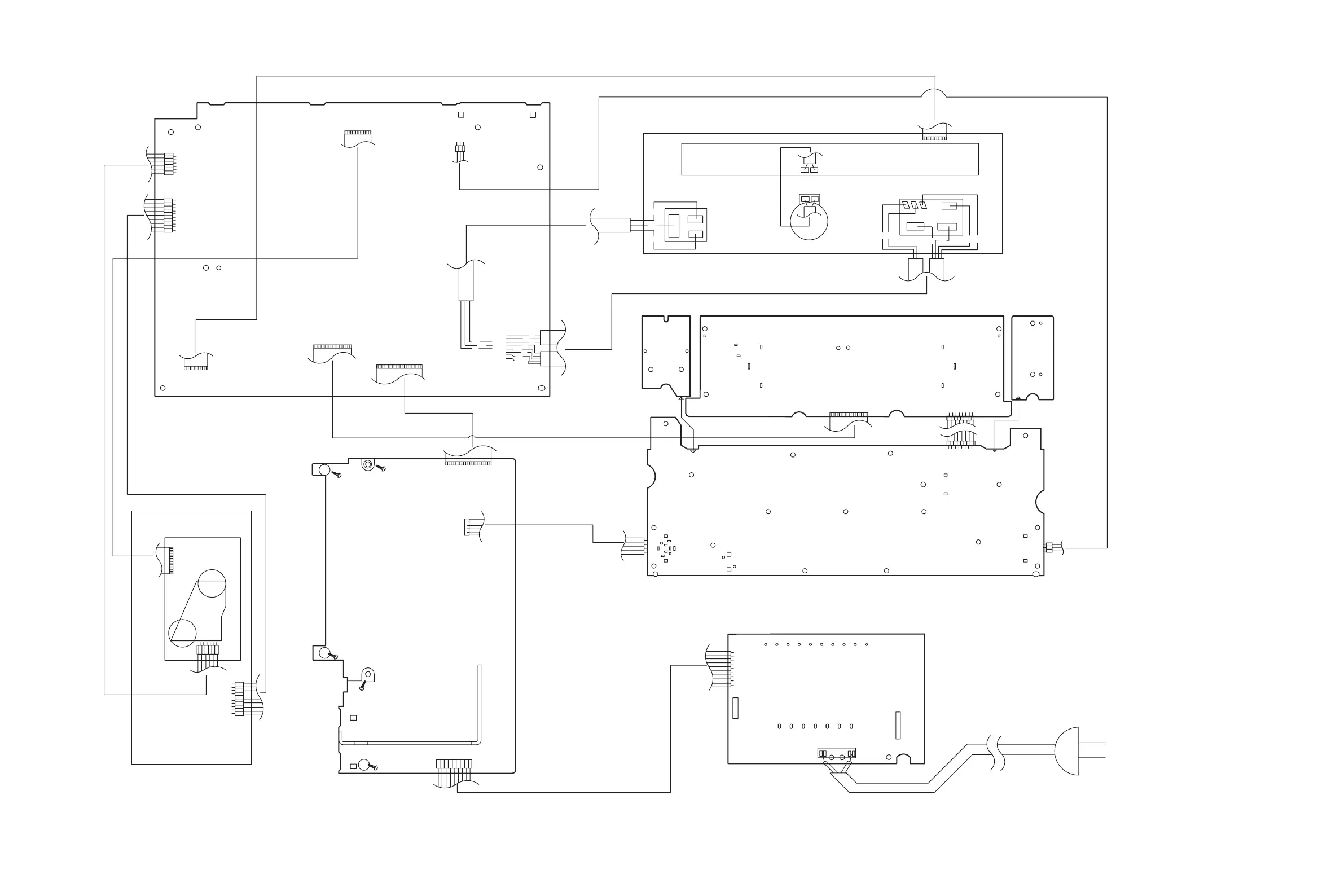

Wiring diagram
Main board
VFD board
Key board
Volume board
Power transformer
Power transformer board
CD pickup
CD mecha
3CD loader w/CD mecha pickup
Feed
motor
Spindle
motor
AC IN
Cassette board
B PB/REC head bottom side
A P/B head bottom side
Cass deck
motor
W
BK
R
R
W
G
R
BK
G
BL
W
R
BK
W
R
W
BL
W
R
BK
CW902
CN702 CN703
CN701
CN201
CN601
CN205
CN402
CN401
CN403
CW201
CN204
CN203
CN206
CW206
CW204 CW203
CW202
CW205
CW601
CN202
J1
BI1206261V
BI12P30215V
BI12P80102V
BI1206271V
BI1206251V
BI1205291U
BI12P90062V
BI12P402341
BI12P30232V
BI12P60142V
BI12P100035V
