3.1.11 Removing the CD changer mechanism assembly

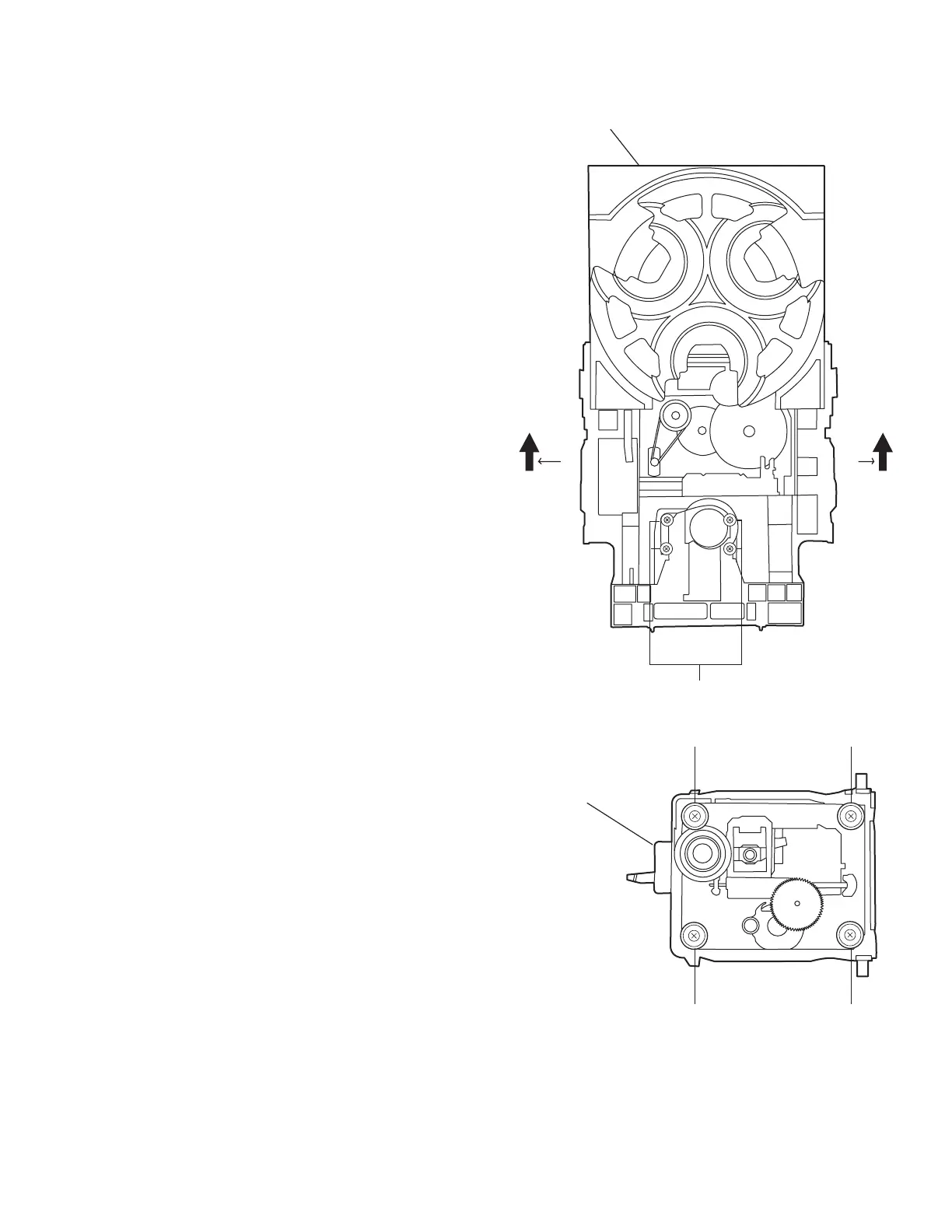

(See Fig.34 to 35)
• Also remove the CD changer unit.
(1) Turn the CD changer mechanism cover base and remove
the screws d connecting the unit to the CD changer mech-
anism assembly.
(2) Removing four screws e retaining the CD mechanism hold-
er assembly.
Caution:
When replacing the CD changer mechanism assembly, be
sure not to mistake the positions of the silver color and copper
color spring.
Fig.34
Fig.35
d
CD changer
unit
e ( Green color )
e ( Red color )
e ( Green color )
e ( Red color )
CD changer
mechanism
assembly
