3.1.2 Removing the CD fitting
(See Fig.6 to 8)
• Prior to performing the following procedure, remove the metal
cover/ rear cover.
Caution:
For protecting the CD fitting from damage, remove it before de-
taching the CD changer mechanism unit.
(1) Push STANDBY/ON key to turn on the power.
(2) Push CD tray eject key.
(3) Move the CD fitting in the direction of the arrow to release
two joints d of the CD tray.
(4) Push STANDBY/ON key to close the tray.
3.1.3 Removing the CD fitting
(See Fig.7 to 9)
[How to eject the CD tray without turning on the power]
• Prior to performing the following procedure, remove the metal
cover/ rear cover.
(1) Turn the loading pulley gear on the bottom of the CD
changer mechanism unit (part e) as shown in the figure to
move the CD tray frontward.
(2) Move the CD fitting in the direction of the arrow to release
two joints d.
(3) Push and close the CD tray.

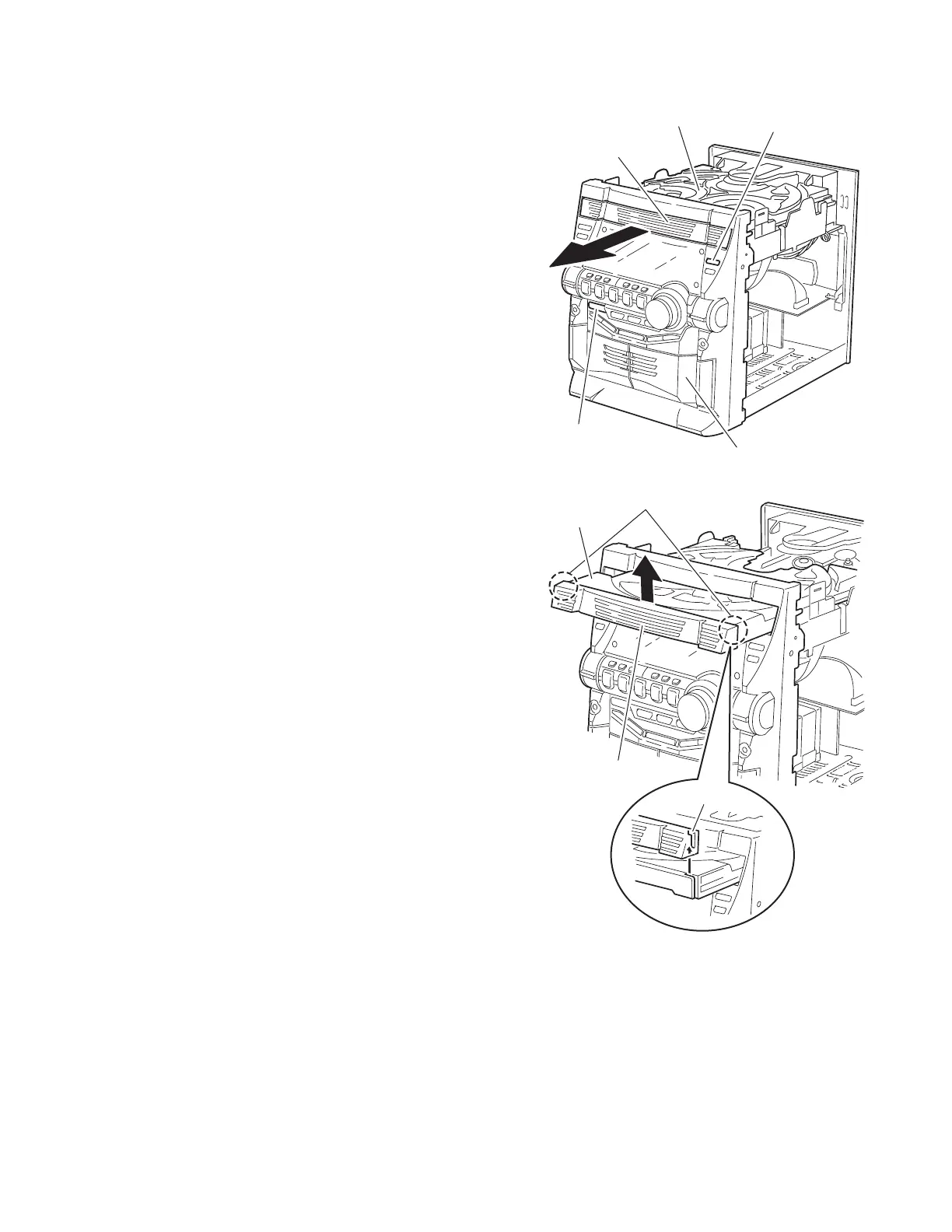

Fig.6
Fig.7
CD tray eject key
STANDBY / ON key
CD fitting
CD changer mechanism unit
Front panel assembly
d
d
CD fitting
CD tray
