JVC MX-KC68J - Specific Service Instructions; Disassembly

1-8 (No.MB664<Rev.002>)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
New CD mechanism was added.
In a model using new CD mechanism for, it stick a blue label for identification on the back side.
When it repair the CD mechanism of an article sticking this label on, please use a parts list of FMU-VK1-2M.
SECTION 3
DISASSEMBLY
3.1 Main body (Used figure are MX-KC68J)
3.1.1 Removing the Metal cover (See Fig.1, 2)
(1) Remove the six screws A attaching the Metal cover. (See
Fig.1)
(2) Remove the four screws B attaching the both side of the
Metal cover. (See Fig.2)
Fig.1
Fig.2

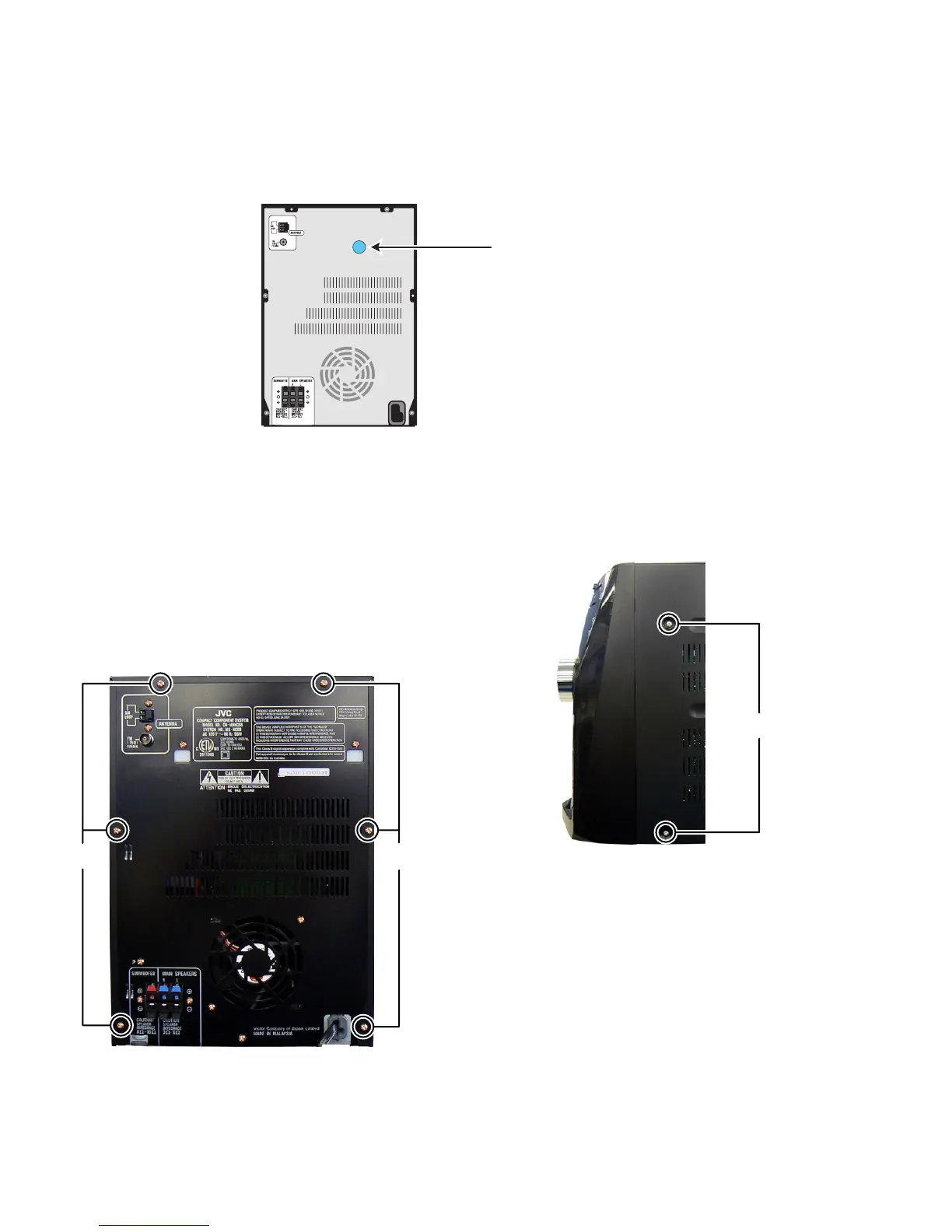

A label for identification
A
A
B
