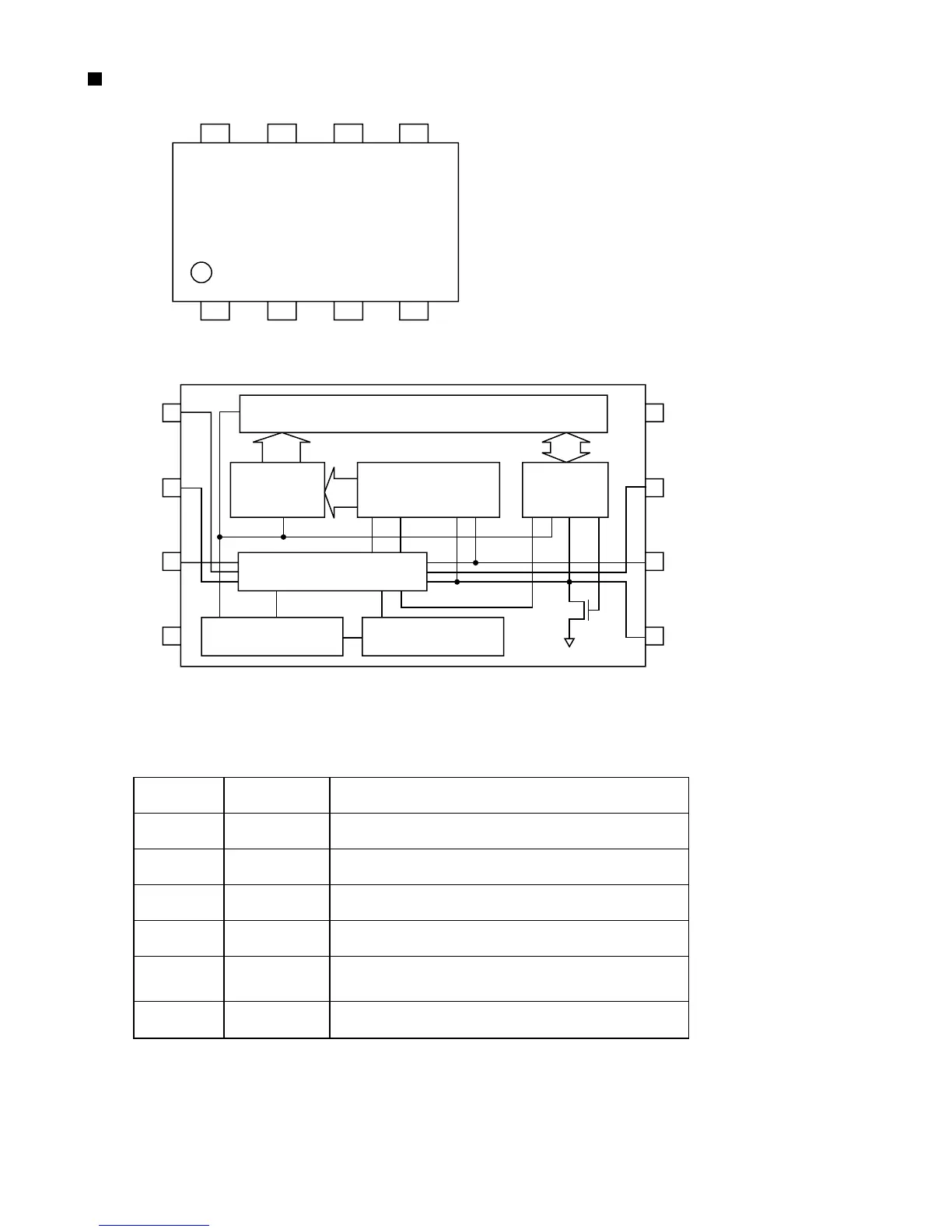

BR24C01AFV-W-X (IC201) : EEPROM
1.Pin layout
2.Block diagram
3.Pin function
A0 A1 A2 GND
Vcc WP SCL SDA
Pin name I/O
Function
Vcc
GND
A0,A1,A2
SCL
SDA
WP
-
-
IN
IN
IN / OUT
IN
*1 An open drain output requires a pull-up resister.
Power supply
Ground (0v)
Slave address set
Serial clock input
Slave and word address,
serial data input, serial data output *1
Write protect input
