JVC NX-F40 - Connecting External Digital Audio Devices; Connecting External Analog Audio Devices; Connecting the Power Cable

Preparation
10
NOTE
• You can output the audio signal from the
[DIGITAL OUT] terminal when “DVD”, “USB” or
“DGTL IN” is selected as the source in the
display window.
• When “DGTL IN” is selected as the source in the
display window, digital audio from the
[DIGITAL OUT] terminal is decoded to a linear
PCM signal.
• Connect the power cable after you complete the
other connections.
• The [STANDBY] lamp on the main unit lights up.

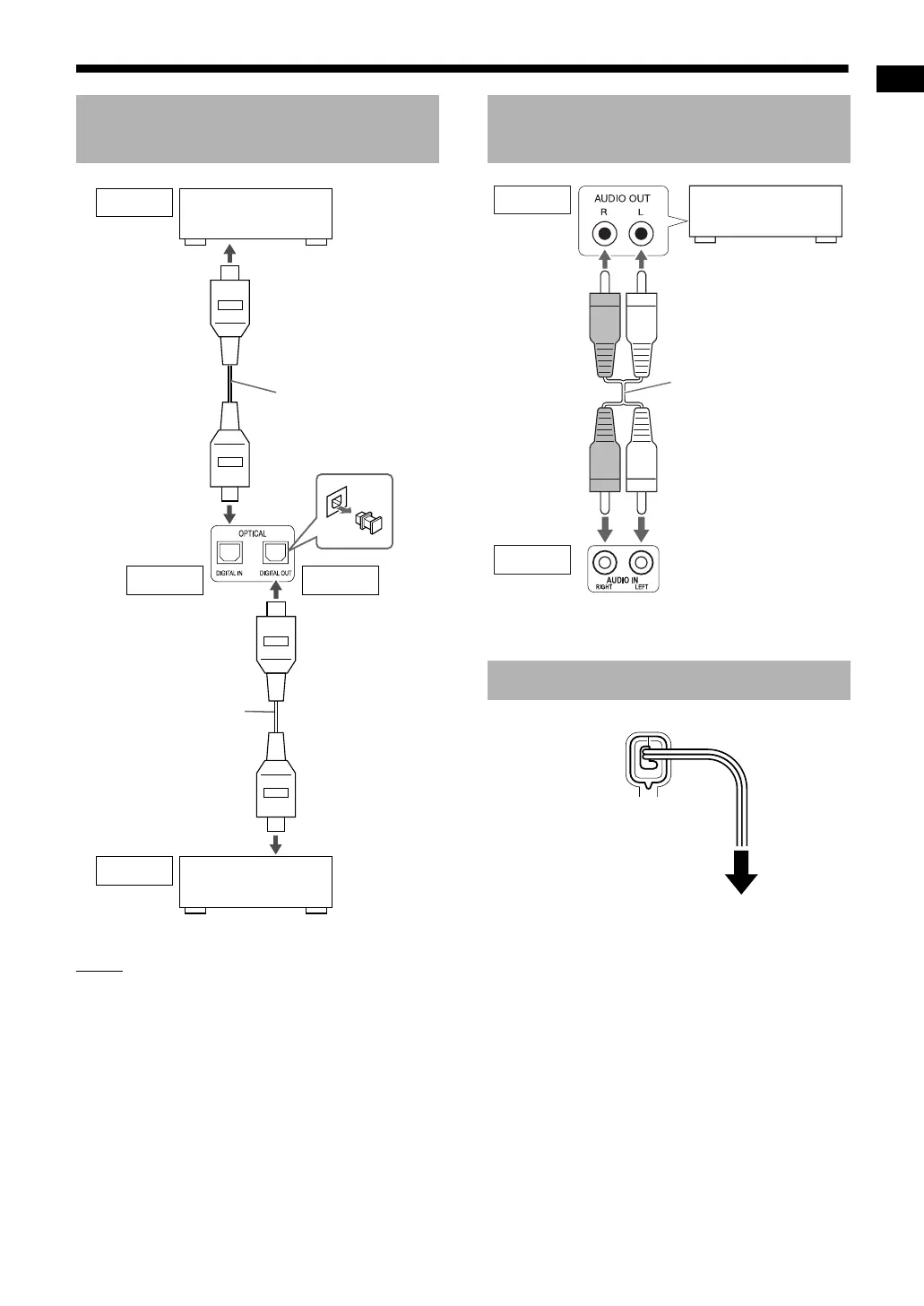

Connecting external digital
audio devices
Output MD player or
satellite receiver
To an optical digital
output terminal
Optical digital cable
(not supplied)
Main unit
(rear view)
Input Output
Optical digital cable
(not supplied)
To an optical digital
input terminal
Input
AV amplifier with
a built-in decoder
Connecting external analog
audio devices
Connecting the power cable
Output
Input
Analog audio
device
Main unit
(rear view)
Audio cable
(not supplied)
AC outlet
Main unit
(rear view)
