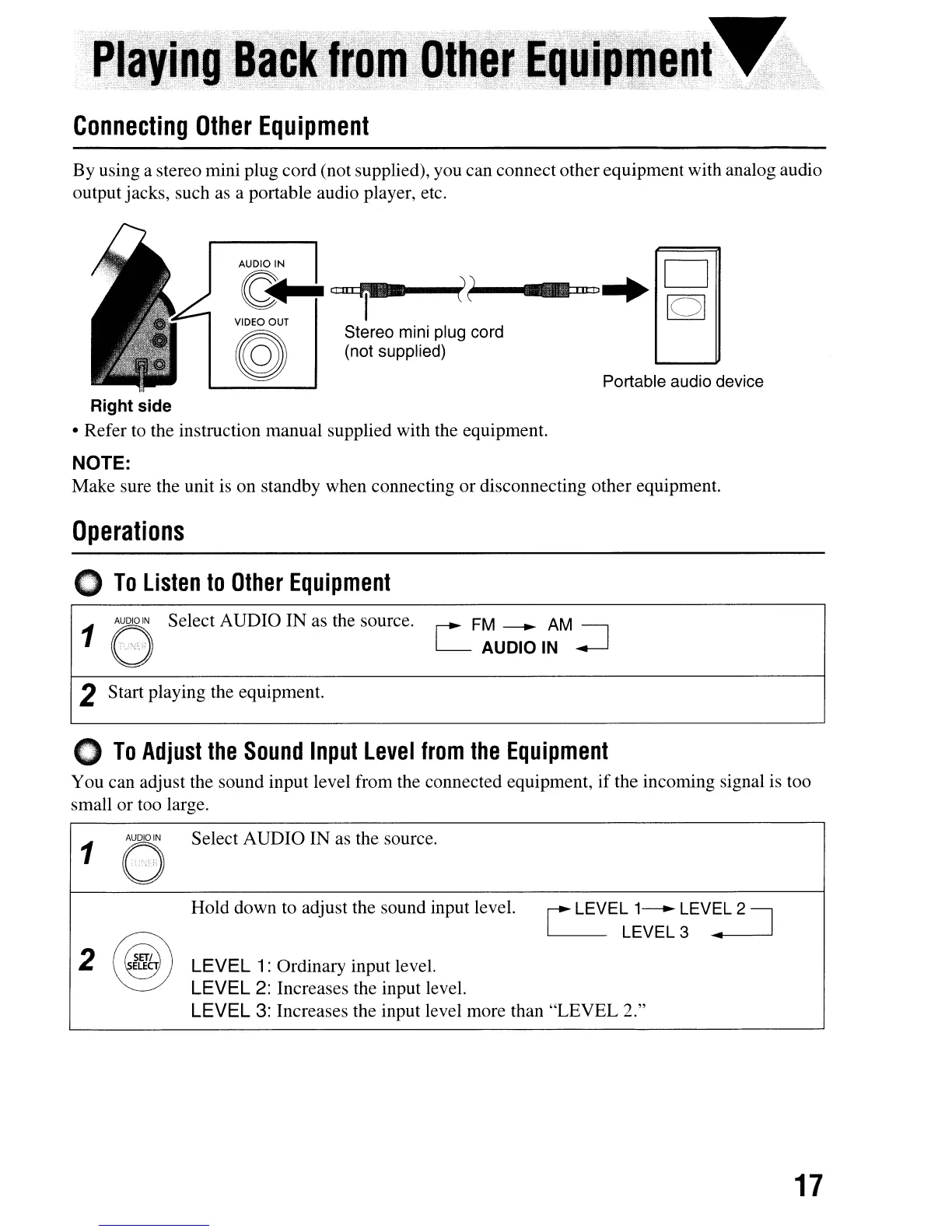

Portable audio device
Connecting
Other
Equipment
By using a stereo mini plug cord (not supplied), you can connect other equipment with analog audio
output jacks, such as a portable audio player, etc.
AUDIO IN D
e++
)~)
~lllil.
VIDEO OUT
CLllLOf
I
..
((
101
~
Stereo mini plug cord
~
(not supplied)
Right side
• Refer to the instruction manual supplied with the equipment.
NOTE:
Make sure the unit is on standby when connecting or disconnecting other equipment.
Operations
o
To
listen
to
Other
Equipment
AUDIO
IN
Select AUDIO IN as the source.
18
2 Start playing the equipment.
r--
FM
---.
AM
I
L-
AUDIO
IN
.-J
o
To
Adjust
the
Sound
Input
Level
from
the
Equipment
You can adjust the sound input level from the connected equipment,
if
the incoming signal is too
small or too large.
LEVEL 1: Ordinary input level.
LEVEL 2: Increases the input level.
LEVEL 3: Increases the input level more than
"LEVEL
2."
1
Select AUDIO IN as the source.
Hold down to adjust the sound input level.
~
LEVEL
1---.
LEVEL
2,
L-.
LEVEL 3 ..--..-.J
17
