To connect the speaker cords
Make sure the unit, main speakers, and subwoofer are connected correctly and firmly.
When connecting the speaker cords, match the polarity of the speaker terminals: white cord to
(+) and white cord with black stripe to (-).
NOTES
• DO NOT connect more than one speaker to each terminal.
• DO NOT allow the conductor of the speaker cords to be in touch with the metallic parts of the
System.

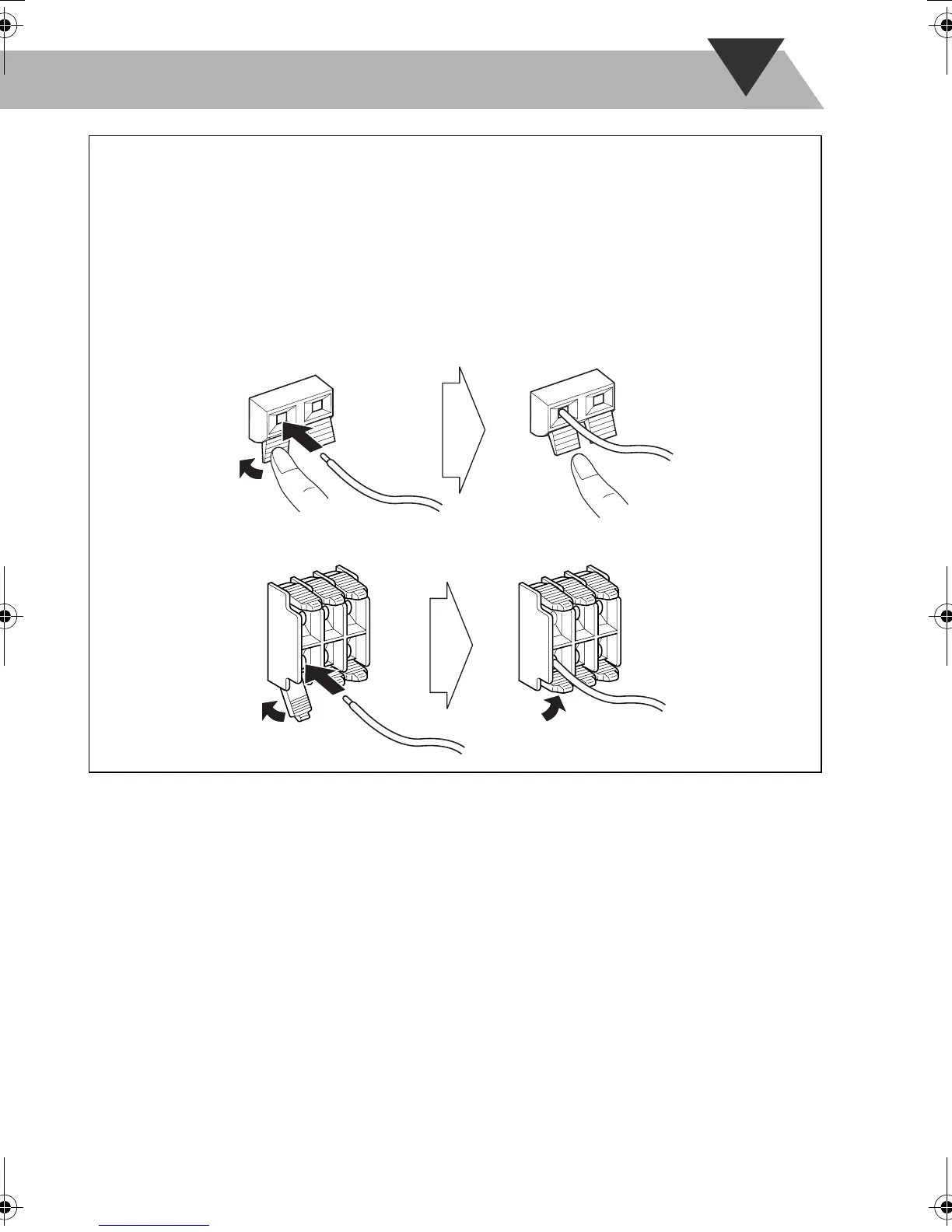

e.g. Speaker
2 Insert
1 Hold
3 Release
e.g. Unit
1 Unlock
2 Insert
3 Lock
