JVC PC-X95B User Manual

C-X95 peeve |

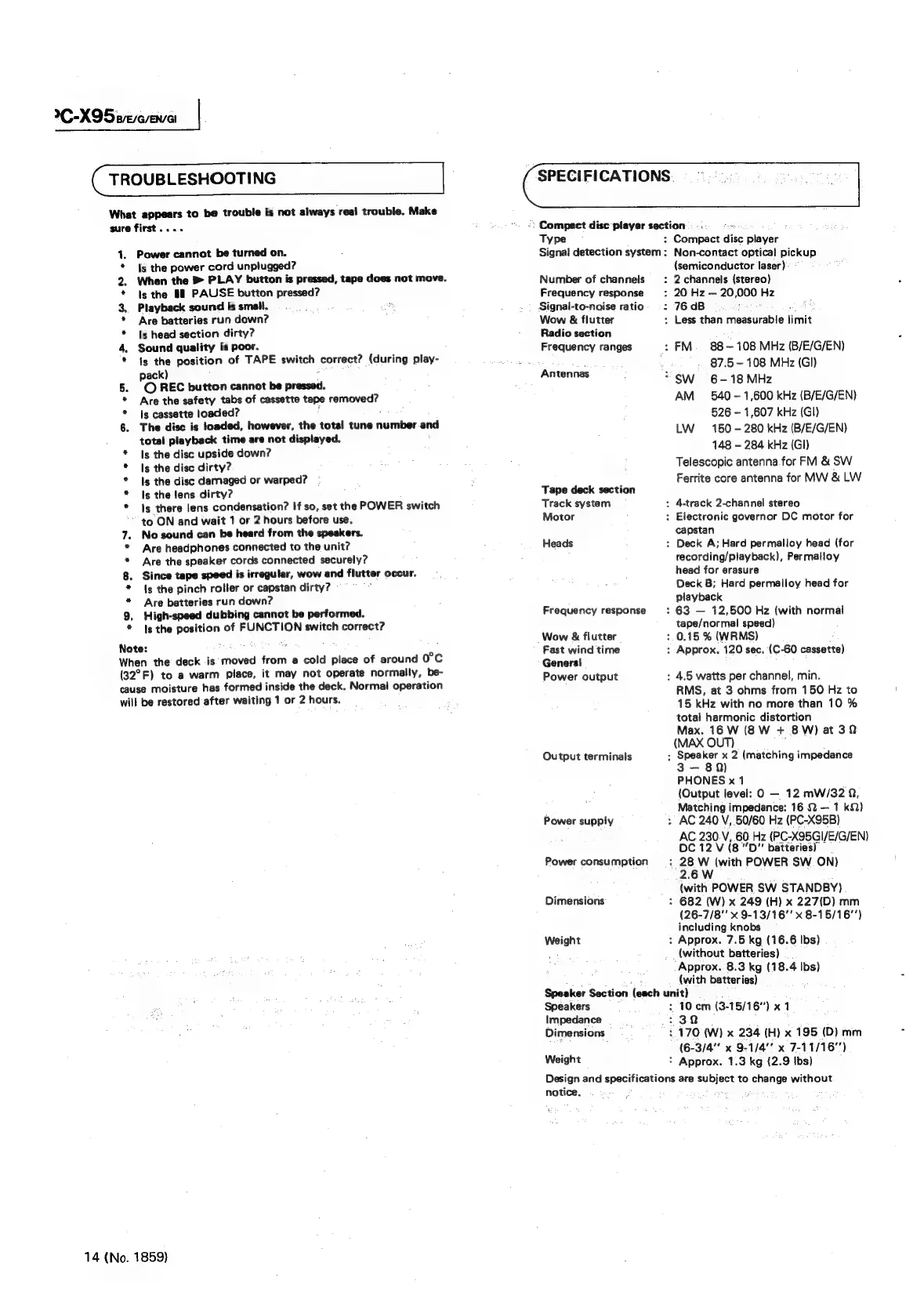

TROUBLESHOOTING
What
appears
to
be
trouble
is
not
always
real
trouble.
Make
sure
first
....
Power cannot be turned on.
Is the power cord unplugged?
When
the
PLAY
button
is
pressed,
tape
does
not
move.
Is the §8 PAUSE button pressed?
Playback sound is smait.
Are batteries run down?
Is head section dirty?
Sound quality is poor.
is the position of TAPE switch correct? (during play-
pack)
O REC button cannot be cane
Are the safety tabs of cassette tape removed?
Is
cassette
loaded?
:
The disc is loaded, however, the total tune number and
total playback time are not displayed.
Is the disc upside down?
Is the disc dirty?
Is the disc damaged or warped? -
Is the lens dirty?
ls
there
lens
condensation?
If
so,
set
the
POWER
switch
to ON and wait 1 or 2 hours before use.
No sound can be heard from the speakers.
Are headphones connected to the unit?
Are the speaker cords connected securely?
Since
tape
speed
is
irregular,
wow
and
flutter
occur.
{s the pinch roller or capstan dirty?
Are batteries run down?
High-speed dubbing cannot be performed.
Is
the
position
of
FUNCTION
switch
correct?
oP et WeDo
2 eZ
se eee @
Orxam
«On +
Note:
When
the
deck
is
moved
toa
a
cold
place
of
around
0°C
(32°F)
to
a
warm
place,
it
may
not
operate
normally,
be-
cause
moisture
has
formed
inside
the
deck.
Normal
operation
will
be
restored
after
waiting
1
or
2
hours.
14 (No. 1859)
SPECIFICATIONS
-: Compact disc player persion
Type : Compact disc player
Signal detection system: Non-contact optical pickup
(semiconductor laser) * -
Number of channels =: 2 channels (stereo)
Frequency response : 20 Hz — 20,000 Hz
Signal-to-noise ratio 2 oe qgB 2: :
Wow & flutter : Less than measurable limit
Radio section
Frequency ranges a FM. 88-108 MHz (B/E/G/EN)
: so . 87.5 - 108 MHz (Gl)
Antennas : = Sw 6-18 MHz
AM 540 - 1,600 kHz (B/E/G/EN)
526 - 1,607 kHz (Gl)
LW 150 - 280 kHz (B/E/G/EN)
148 - 284 kHz (Gl)
Telescopic antenna for FM & SW
Ferrite core antenna for MW & LW
Tape deck section
Track system : 4-track 2-channel stereo
Motor : Electronic governor DC motor for
capstan
Heads : Deck A; Hard permalloy head (for
recording/playback), Permalloy
head for erasure
Deck B; Hard permalloy head for
playback
Frequency response : 63 — 12,500 Hz (with normal
tape/normal speed)
Wow & flutter 0,15 % (WRMS)
Fast wind time : Approx. 120 sec. (C-60 cassette)
General
Power output : 4.5 watts per channel, min.
RMS, at 3 ohms from 150 Hz to
15 kHz with no more than 10 %
total harmonic distortion
Max. 16 W (8W + 8W) at 30
(MAX OUT)
Output terminals : Speaker x 2 (matching impedance
3-89)
PHONES x 1
(Output level: O — 12 mW/32 Q,
Matching impedance: 16 2 — 1 kQ)
Power supply : AC 240 V, 50/60 Hz (PC-X95B)
AC 230.V,.60 Hz (PC- X95GI/E/G/EN)
DC 12 V (8 “D" batteries)
Power consumption : 28 W (with POWER SW ON)
2.6 W
_ (with POWER SW STANDBY)
Dimensions : 682 (W) x 249 (H) x 227(D) mm
(26-7/8" x 9-13/16"' x 8-15/16"’)
including knobs
Weight : Approx. 7.5 kg (16.6 Ibs)
(without batteries)
Approx. 8.3 kg (18.4 Ibs)
(with batteries)
Speaker Section (each unit)
Speakers : 10cm (3- 15/16") x 1
Impedance 32. .
Dimensions - . ‘170 (W) x 234 (H) x 195 (D) mm
; (6-3/4"' x 9-1/4" x 7-11/16")
Weight > Approx. 1.3 kg (2.9 Ibs)
Design and ere are subject to Sane without
notice.
