[1}
Location
of
Main
Parts
Main
Board
Ass'y
E.
Head
Deck
A
Pointer
RIP.
Head
Fine
Tuning
eae
CD
Mechanism
Ass'y
Cassette
Mechanism
Ass'y

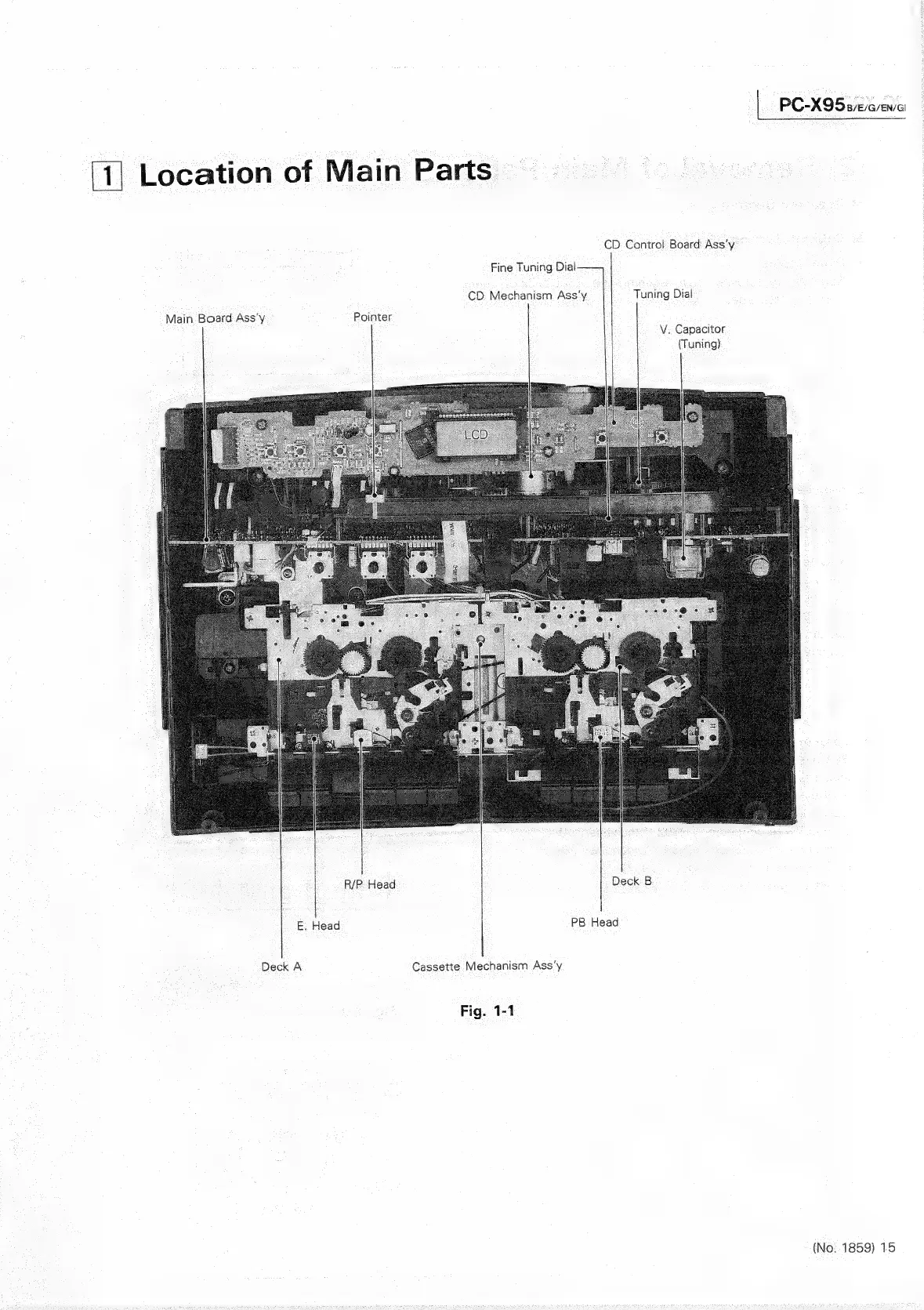

Fig.
1-1
CD
Control!
Board
Ass’y
Deck
B
PB
Head
Tuning
Dial
V.
Capacitor
(Tuning)
PC-X95
B/E/G/EN/Gi
(No.
1859)
15
