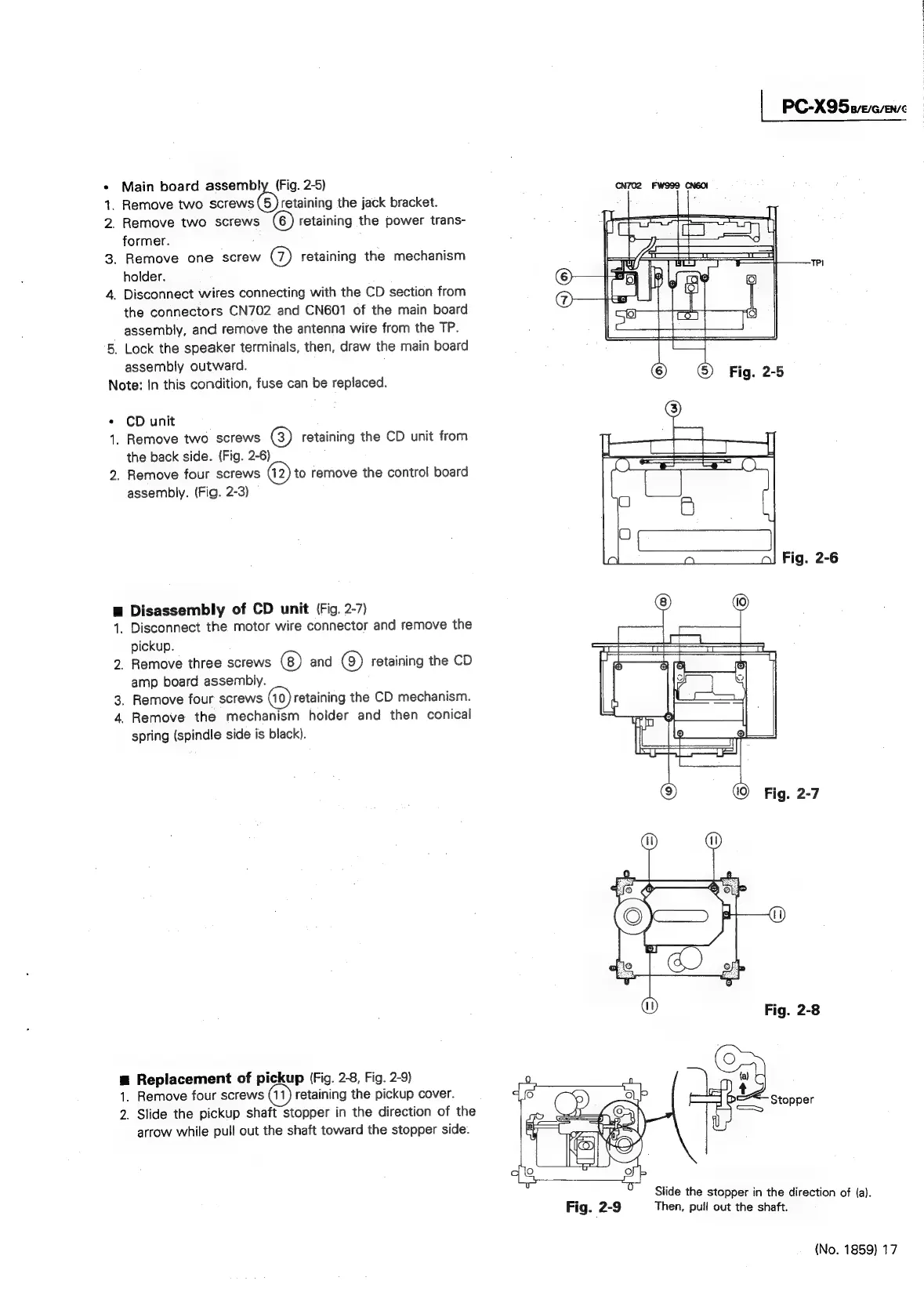

| PC-X95pecren<c
* Main board Oe 2-5)
1.
Remove
two
screws
retaining
the
jack
bracket.
2.
Remove
two
screws
retaining
the
power
trans-
former.
3.
Remove
one
screw
@)
retaining
the
mechanism
holder.
4.
Disconnect
wires
connecting
with
the
CD
section
from
the
connectors
CN702
and
CN601
of
the
main
board
assembly,
and
remove
the
antenna
wire
from
the TP.
5.
Lock
the
speaker
terminals,
then,
draw
the
main
board
assembly
outward.
Note: In this condition, fuse can be replaced.
« CD unit
1.
Remove
two
screws
GB)
retaining
the
CD
unit
from
the
back
side.
(Fig.
2-6)
2.
Remove
four
screws
to
remove
the
control
board
assembly.
(Fig.
2-3)
w
Disassembly
of
CD
unit
(Fig.
2-7)
1.
Disconnect
the
motor
wire
connector
and
remove
the
pickup.
2.
Remove
three
screws
and
(9)
retaining
the
CD
amp board assembly.
.
Remove
four
screws
(10)
retaining
the
CD
mechanism.
4.
Remove
the
mechanism
holder
and
then
conical
spring
(spindle
side
is
black).
w
a
Replacement
of
pickup
(Fig.
2-8,
Fig.
2-9)
1.
Remove
four
screws
retaining
the
pickup
cover.
2.
Slide
the
pickup
shaft
stopper
in
the
direction
of
the
arrow
while
pull
out
the
shaft
toward
the
stopper
side.
; Slide the stopper in the direction of {a}.
Fig. 2-9 Then, pull out the shaft.
(No. 1859) 17
