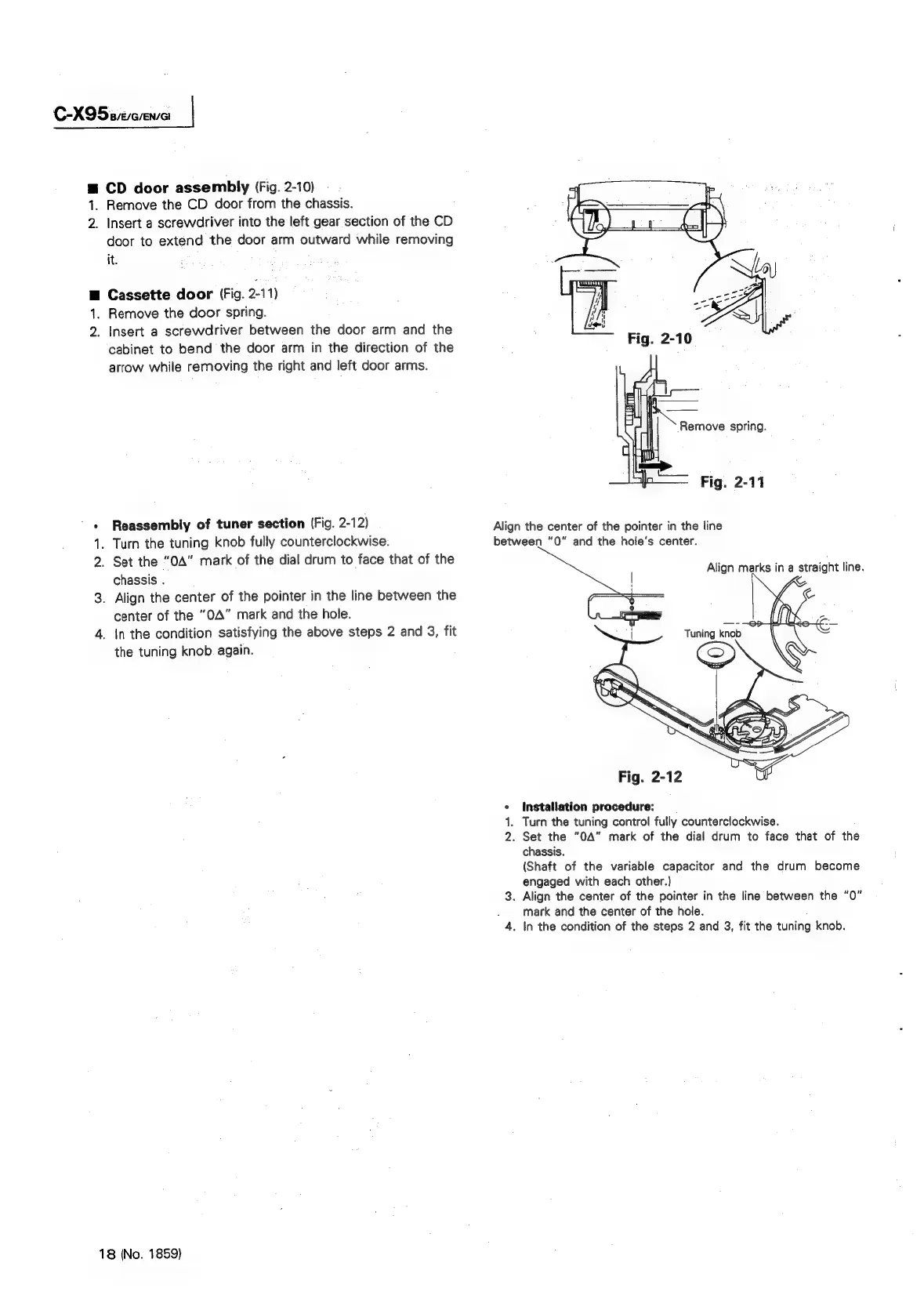

g CD door assembly (Fig. 2-10)
1.
2.
=
Remove the CD door from the chassis.
Insert a screwdriver into the left gear section of the CD
door to extend the door arm outward while removing
it.
Cassette door (Fig. 2-11)
Remove the door spring.
. Insert a screwdriver between the door arm and the
cabinet to bend the door arm in the direction of the
arrow while removing the right and left door arms.
Reassembly
of
tuner
section
(Fig.
2-12)
. Turn the tuning knob fully counterclockwise.
_
Set
the
“OA”
mark
of
the
dial
drum
to
face
that
of
the
chassis .
.
Align
the
center
of
the
pointer
in
the
line
between
the
center of the “OA” mark and the hole.
_
In
the
condition
satisfying
the
above
steps
2
and
3,
fit
the tuning knob again.
18 (No. 1859)
Remove spring.
Cc —
Fig. 2-11
Align the center of the pointer in the line
between “0” and the hole’s center.
nN
Align marks in a straight line.
Installation procedure:
Turn the tuning control fully counterclockwise.
. Set the “OA” mark of the dial drum to face that of the
chassis.
(Shaft of the variable capacitor and the drum become
engaged with each other.)
. Align the center of the pointer in the line between the “0”
mark and the center of the hole.
. In the condition of the steps 2 and 3, fit the tuning knob.
