English

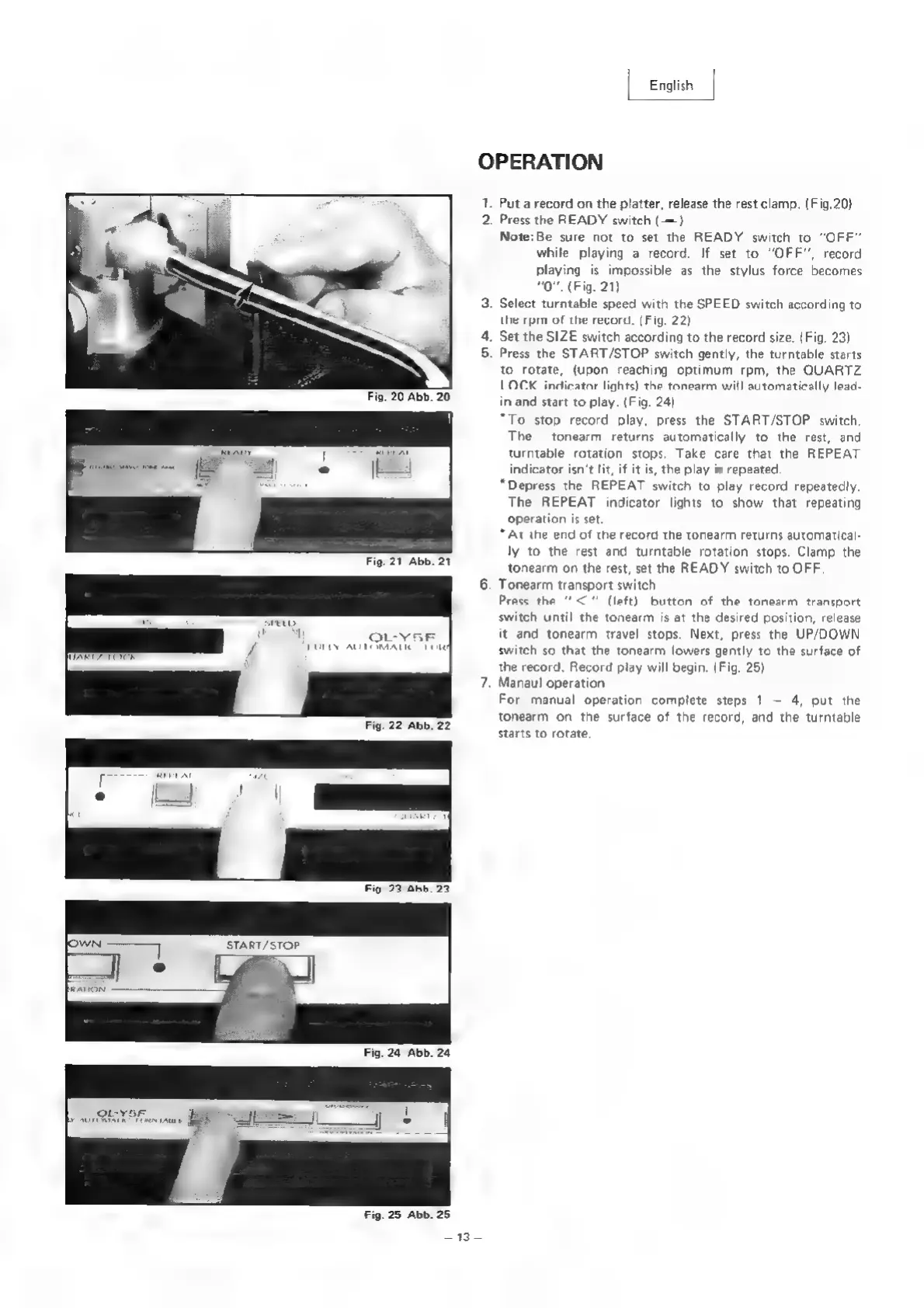

OPERATION
Put a record on the platter, release the rest clamp. (Fig.20)
Press the READY switch (-—)
Note:Be sure not to set the READY switch to “OFF”
while playing a record. If set to “OFF”, record
playing is impossible as the stylus force becomes
“O". (Fig. 21)
Select turntable speed with the SPEED switch according to
the rpm of the record, (Fig. 22)
. Set the SIZE switch according to the record size. (Fig. 23)
Press the START/STOP switch gently, the turntable starts
to rotate, (upon reaching optimum rpm, the QUARTZ
LOCK indicator lights) the tonearm will automatically lead-
in and start to play. (Fig. 24)
“To stop record play, press the START/STOP switch.
The tonearm returns automatically to the rest, and
turntable rotation stops. Take care that the REPEAT
indicator isn’t lit, if it is, the play is repeated
“Depress the REPEAT switch to play record repeatedly.
The REPEAT indicator lights to show that repeating
operation is set
“AL the end of the record the tonearm returns automatical-
ly to the rest and turntable rotation stops. Clamp the
tonearm on the rest, set the READY switch to OFF
Tonearm transport switch
Prass the <<" (left) button of the tonearm transport
switch until the tonearm is at the desired position, release
it and tonearm travel stops. Next, press the UP/DOWN
switch so that the tonearm lowers gently to the surface of
the record. Record play will begin. (Fig. 25)
Manaul operation
For manual operation complete steps 1 — 4, put the
tonearm on the surface of the record, and the turntable
starts to rotate
