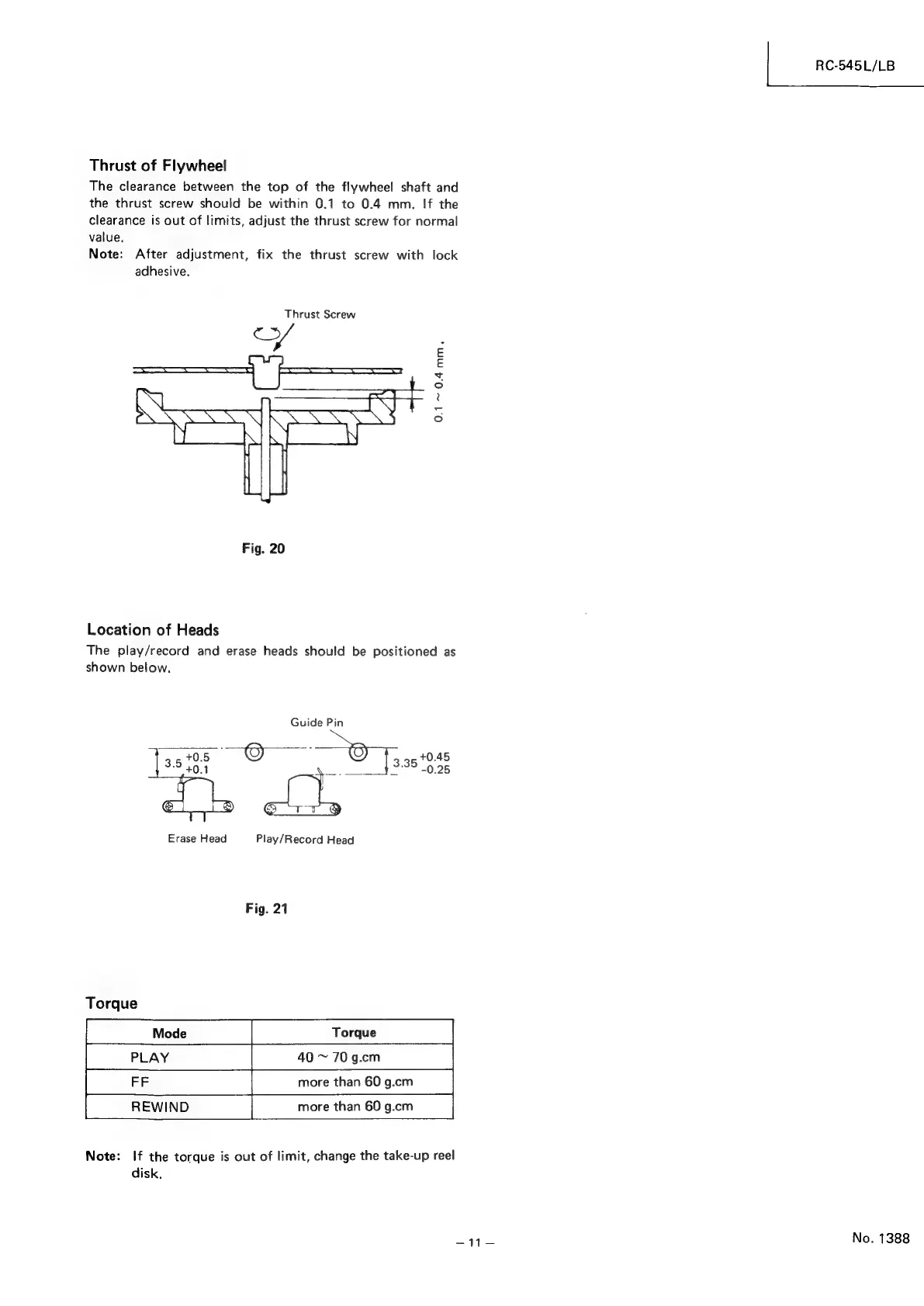

Thrust of Flywheel
The clearance between the top of the flywheel shaft and
the thrust screw should be within 0.1 to 0.4 mm. If the
clearance is out of limits, adjust the thrust screw for normal
value.
Note: After adjustment, fix the thrust screw with lock
adhesive.
Thrust Screw
¢ >/
0.1~0.4mm,
Fig. 20
Location of Heads
The play/record and erase heads should be positioned as
shown below.
Guide Pin
vs O a OT a9:948
+0.1
ri -0.25
Erase Head Play/Record Head
Fig. 21
Torque
Wot Toe
Note: If the torque is out of limit, change the take-up reel
disk.
244 —
| RC-545L/LB
No. 1388
