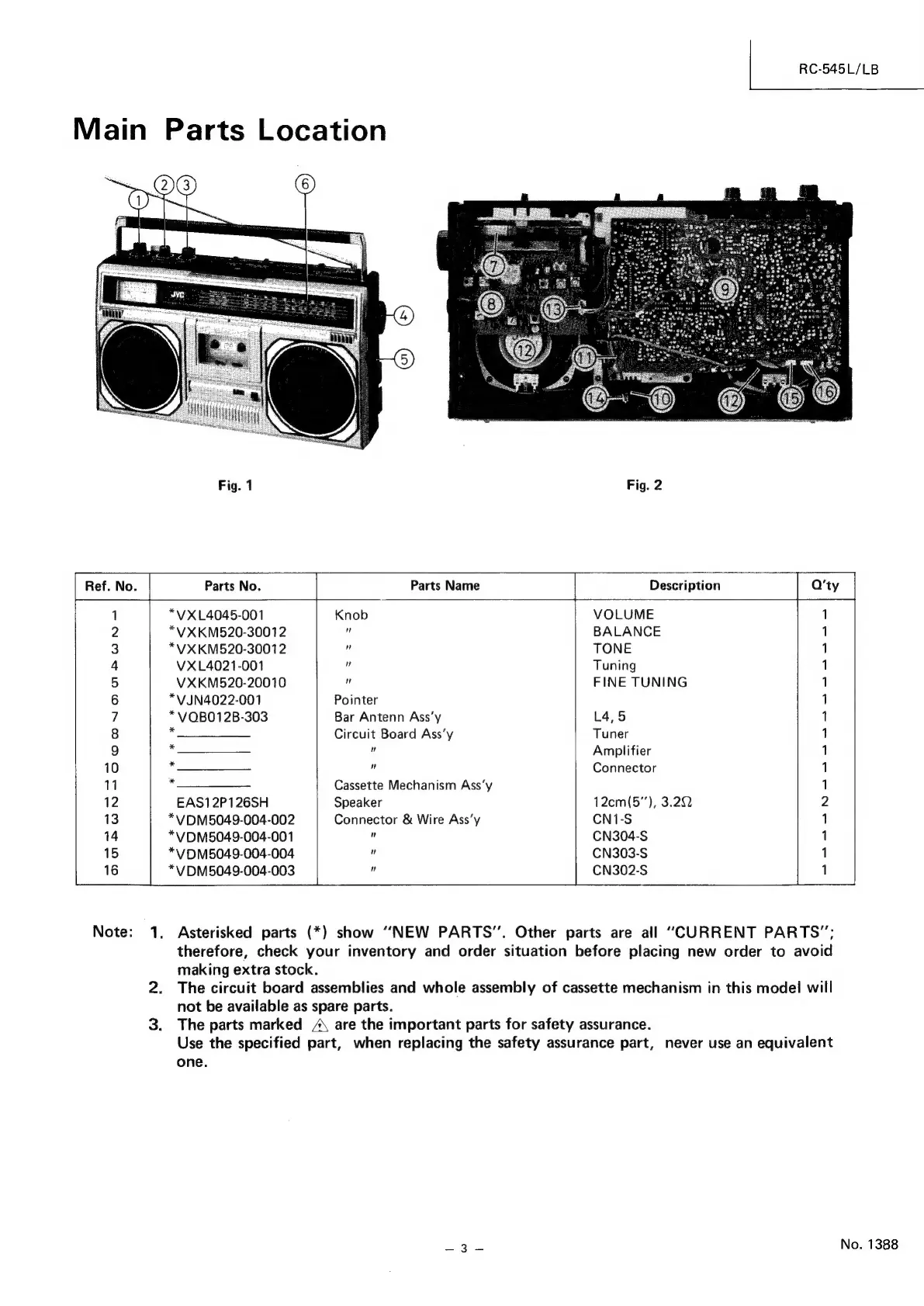

Main Parts Location
RC-545L/LB
Fig. 1 Fig. 2
Ref. No. Parts No. Parts Name Description | O’ty
1 *VXL4045-001 Knob VOLUME 1
2 *VXKM520-30012 " BALANCE 1
3 *VXKM520-30012 tf TONE 1
4 VXL4021-001 ut Tuning 1
5 VXKM520-20010 i" FINE TUNING 1
6 *VJN4022-001 Pointer 1
7 *VQB012B-303 Bar Antenn Ass’y L4,5 1
8 a Circuit Board Ass’y Tuner 1
9 . " Amplifier 1
10 * " Connector 1
11 _ Cassette Mechanism Ass‘y 1
12 EAS12P126SH Speaker 12cm(5"’), 3.2Q 2
13 *V/DM5049-004-002 Connector & Wire Ass’y CN1-S 1
14 *\V/DM5049-004-001 " CN304-S 1
15 *V/DM5049-004-004 ” CN303-S 1
16 *VDM5049-004-003 u CN302-S 1
Note: 1,
|
Asterisked parts (*) show “NEW PARTS”. Other parts are all “CURRENT PARTS”;
therefore, check your inventory and order situation before placing new order to avoid
making extra stock.
The circuit board assemblies and whole assembly of cassette mechanism in this model will
not be available as spare parts.
The parts marked \ are the important parts for safety assurance.
Use the specified part, when replacing the safety assurance part, never use an equivalent
one.
No. 1388
