RC-545L/LB

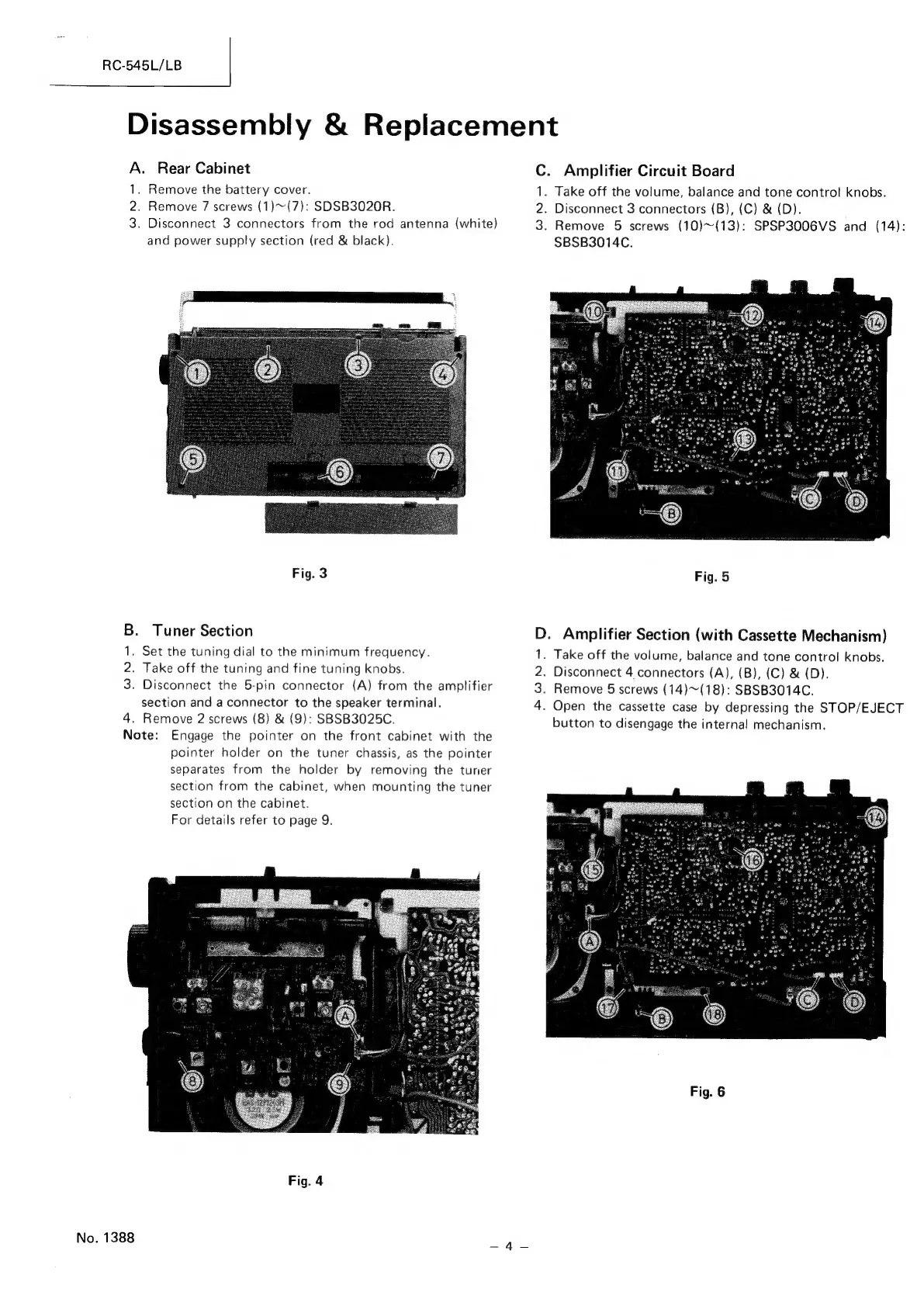

Disassembly & Replacement
A. Rear Cabinet
1. Remove the battery cover.
2. Remove 7 screws (1)~(7): SDSB3020R.
3. Disconnect 3 connectors from the rod antenna (white)
and power supply section (red & black).
C.
1
2.
3.
Amplifier Circuit Board
Take off the volume, balance and tone control knobs.
Disconnect 3 connectors (B), (C) & (D).
Remove 5 screws (10)~(13): SPSP3006VS and (14):
SBSB3014C.
Fig. 3
B. Tuner Section
1. Set the tuning dial to the minimum frequency.
2. Take off the tuning and fine tuning knobs.
3. Disconnect the 5-pin connector (A) from the amplifier
section and a connector to the speaker terminal.
4. Remove 2 screws (8) & (9): SBSB3025C.
Note: Engage the pointer on the front cabinet with the
pointer holder on the tuner chassis, as the pointer
separates from the holder by removing the turer
section from the cabinet, when mounting the tuner
section on the cabinet.
For details refer to page 9.
Fig. 4
No. 1388
Fig. 5
D.
Amplifier
Section
(with
Cassette
Mechanism)
BRWN
. Take off the volume, balance and tone control knobs.
. Disconnect 4 connectors (A), (B), (C) & (D).
. Remove 5 screws (14)~(18): SBSB3014C.
Open the cassette case by depressing the STOP/EJECT
button to disengage the internal mechanism.
Fig. 6
