RC-545L/LB

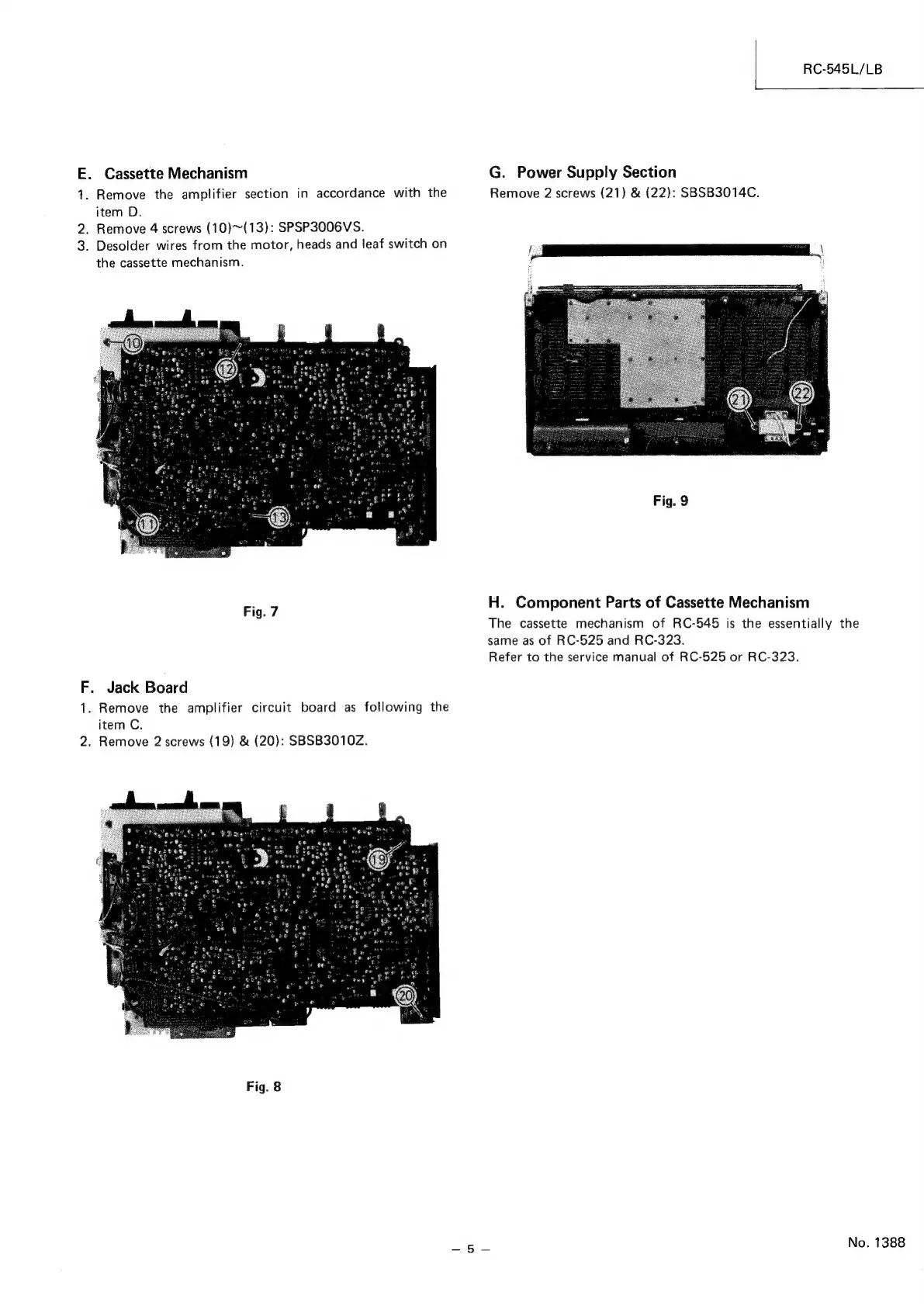

E. Cassette Mechanism G. Power Supply Section
1. Remove the amplifier section in accordance with the Remove 2 screws (21) & (22): SBSB3014C.
item D.
2. Remove 4 screws (10)~(13): SPSP3006VS.
3. Desolder wires from the motor, heads and leaf switch on
the cassette mechanism.
Fig. 9
H. Component Parts of Cassette Mechanism
The cassette mechanism of RC-545 is the essentially the
same as of RC-525 and RC-323.
Refer to the service manual of RC-525 or RC-323.
Fig. 7
F. Jack Board
1. Remove the amplifier circuit board as following the
item C.
2. Remove 2 screws (19) & (20): SBSB3010Z.
Fig. 8
No. 1388
