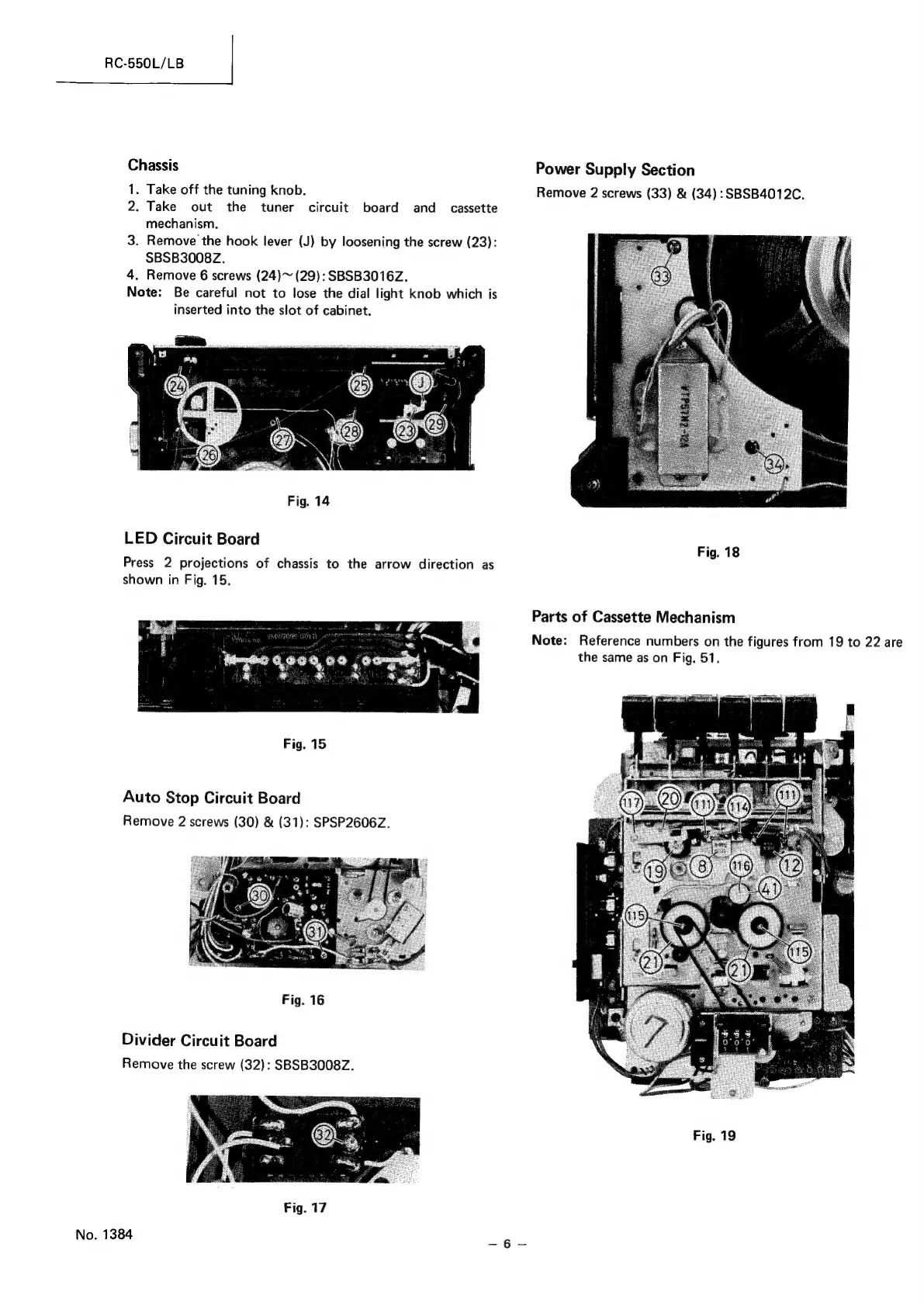

RC-550L/LB
Chassis
Power
Supply
Section
1.
Take
off
the
tuning
knob.
Remove
2
screws
(33)
&
(34)
:SBSB4012C.
2.
Take
out
the
tuner
circuit
board
and_
cassette
mechanism.
3.
Remove
the
hook
lever
(J)
by
loosening
the
screw
(23):
SBSB3008Z.
4.
Remove
6
screws
(24)~
(29):
SBSB3016Z.
Note:
Be
careful
not
to
lose
the
dial
light
knob
which
is
inserted
into
the
slot
of
cabinet.
LED
Circuit
Board
Press
2
projections
of
chassis
to
the
arrow
direction
as
shown
in
Fig.
15.
Fig.
18
Parts
of
Cassette
Mechanism
Note:
Reference
numbers
on
the
figures
from
19
to
22
are
the
same
as
on
Fig.
51.
W380
0,000,
00
{comma
eS
Be
Fig.
15
Auto
Stop
Circuit
Board
Remove
2
screws
(30)
&
(31):
SPSP2606Z.
Fig.
16
Divider
Circuit
Board
Remove
the
screw
(32):
SBSB3008Z.
Fig.
19
Fig.
17
No.
1384
