VOLTAGE SELECTOR

110V-

127V

220V-

230V

CD PORTABLE SYSTEM

POWERING UP

This portable system operates on battery or AC power.

BATTERY POWER

Insert 6 D-sized (13A/LR20) alkaline batteries (not sup-

plied) and you can take your stereo just about anywhere.

Open the battery compartment door on the back of the

unit by pressing down on the two tabs and pulling out the

cover. Insert batteries as shown on the back of the unit.

FIRST THINGS

Important Battery Information

• If you’re not going to use your player for a month or

more, be sure to remove batteries because they can leak and cause damage.

• Dispose of batteries in the proper manner, according to federal, state, and local regula-tions.

• Any battery may leak electrolyte if mixed with a different battery type. If inserted incor-

rectly, if all batteries are not replaced at the same time, if disposed of in fire, or if an

attempt is made to charge a battery not intended to be recharged.

• Discard leaky batteries immediately. Leaking batteries can cause skin burns or other per-

sonal injury.

AC POWER

Setting the VOLTAGE SELECTOR

To avoid damaging the system, select the voltage range before plugging in the system. Open

the battery compartment cover on the back of the unit by pressing down the two tabs and

pulling out the cover. Select the voltage range for your area with the VOLTAGE SELECTOR

inside the battery compartment by using a screwdriver or similar.

Connecting the AC Power Cord

Plug the power supply cord into the AC power jack on the back of the unit, and into an AC

power outlet.

ANTENNAS

The AM antenna is built in, so adjusting the position of the unit may help AM (MW) reception.

The FM whip antenna on the back of the unit can be extended and rotated for better FM

reception.

FUNCTION Switch-Move the switch to select which part of the portable stereo you want to

select - RADIO, TAPE or CD.

VOLUME – Turn the volume knob to increase or decrease volume to desired level.

S-BASS – Turn on S-BASS by pressing button down for enhanced bass effect. Turn off

S-BASS (up position) for normal bass sound.

POWER OFF (standby) – Move the FUNCTION switch to TAPE position with no cassette

button pressed, to turn unit off.

REC – Press to record from the radio or CD player.

PLAY – Press to play cassettes.

REW – From stop mode, press to rewind the tape toward the beginning.

FF – From stop mode, press to advance the tape toward the end.

STOP/EJECT – Press to stop current tape activity, or to open the cassette compart-

ment door when no buttons are active.

PAUSE – Press to interrupt tape play or record mode. Press a second time to resume

tape play or tape record mode.

PLAYING A CASSETTE TAPE

1. Move the FUNCTION switch to TAPE.

2. Press STOP/EJECT to open the cassette compartment door.

3. Insert cassette tape into the compartment with the open edge facing up and the full reel

on the right.

4. Close the door securely.

5. Press REW or FF to move tape to the desired starting point.

6. Press PLAY to begin playing the tape. The cassette tape plays until it reaches the end of

the side, then it automatically stops.

RECORDING ON CASSETTE TAPES

You can record from the radio or the CD player.

For best recording, use normal bias tape.

• It may be unlawful to record or playback copyrighted material without the consent of the

ERASE PROTECTION

When you record new material, the cassette deck records over whatever is on a tape. To

protect a tape from accidental erasure, break off one or both plastic tabs (one for each

tape side) on the top of the cassette tape. If you decide later to record on the tape, seal the

hole with a piece of cellophane tape.

GENERAL CONTROLS

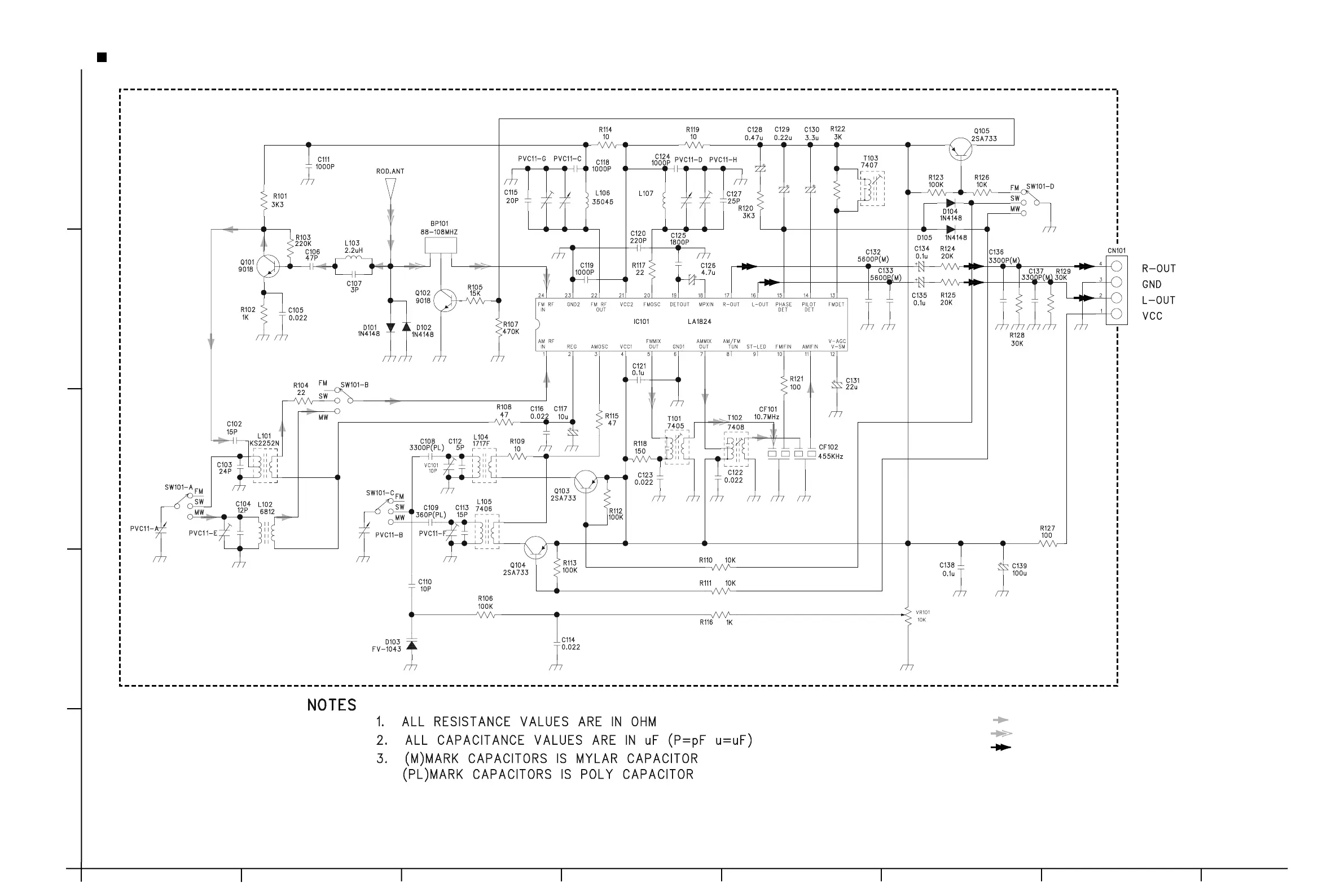

USING THE RADIO

TUNING IN RADIO STATIONS

Move the FUNCTION switch to RADIO to turn the radio on.

• Set BAND to FM, SW or MW.

• Tune in desired station by turning the TUNING wheel knob.

In SW reception, you can finely tune in desired station by turning the FINE TUNE knob on

the right side of the unit.

• To turn off the radio, move FUNCTION switch to TAPE.

USING THE TAPE PLAYER

WARNING

A little bit of slack in your tapes can cause scratches on the tape, or

worse yet, the tape could break. If you notice some slack in the tape

use a pencil to tighten it up before you insert in.

RECORDING FROM

THE RADIO

1. Insert a cassette tape into the tape deck and close door.

2. Move the FUNCTION switch to RADIO and select a radio station.

3. Press REC to begin recording. REC and PLAY lock down.

4. Press STOP/EJECT to end recording.

5. To turn off radio, slide FUNCTION switch to

TAPE.

RADIO RECORDING TIPS

• To temporarily pause the recording, press PAUSE on the cassette deck. Press Pause

again to resume recording.

RECORDING FROM CDs

1. Insert a cassette tape into the tape deck and close the door.

2. Press REC and PAUSE at the same time.

3. Move the FUNCTION switch to CD.

4. Insert the CD you want to record into CD compartment.

5. You can begin recording at track 1 – or press SKIP/SEARCH or to choose the

track you want to record – press the PLAY/PAUSE button, then immediately release the

PAUSE button on the tape deck.

TIP

Using the PAUSE button on the cassette deck instead of the STOP/EJECT

button to momentarily interrupt recording gives you a much cleaner sounding

recording.

PROGRAMMING

Pressing the PROG. Key in the stop mode will enter into program create mode. The

program symbol will be displayed and a flashing track 1.

With SKIP/SEARCH keys, another flashing track number can be selected. Through the

second press of the PROG key, the selected track number (flashing) will be stored to

program place.

For 1 second, the program place is displayed continuously, then again the selected track is

flashing. The next press of the PROG key will store program place 2.

To finish program create mode, press STOP key and it will enter into stop mode. Up to 20

tracks can be stored, then it will enter to stop mode automatically.

Pressing PLAY key will lead to normal play mode, the PROG symbol in the display

USING THE CD PLAYER

indicates that there is a program existing.

You can enter program play mode by pressing STOP, PROG, and PLAY. A flashing PROG

symbol will then flash to indicate your selection of the mode.

TIP

When playing a CD-R or CD-RW

User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be played back only if they

are already “final-ized.”

• You can play back your original CD-Rs or CD-RWs recorded in music CD format. (However,

they may not be played back depending on their characteristics or recording conditions.)

• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc

characteristics, damage or stain on them, or if the player’s lens is dirty.

• CD-RWs may require a longer readout time. (This is cause by the fact that the reflectance

of CD-RWs is lower than for regular CDs.)

CLEANING THE EXTERIOR

• Disconnect the system from AC power before cleaning the exterior of the unit with a

soft dust cloth.

HANDLING CDs

• Do not touch the signal surfaces. Hold by the edges, or by one edge and the hole.

• Do not affix labels or adhesive tape to the label surfaces. Also, do not scratch or

damage the label.

• Discs rotate at high speeds inside the player. Do not use damaged (cracked or warped)

discs.

CLEANING CDs

• Dirty discs can cause poor sound quality. Always keep discs clean by wiping them

gently with a soft cloth from the inner edge toward the outer perimeter.

• If a disc becomes dirty, wet a soft cloth in water, wring it out well, wipe the dirt away

gently, and then remove any water drops with a dry cloth.

• Do not use record cleaning sprays or antistatic agents on discs. Also, never clean discs

with benzene, thinner, or other volatile solvents which may cause damage to the disc

surface.

TAPE CARE

• Don’t expose tapes to sunlight or store in hot places. High temperatures may warp

the

shell

damage the tape itself.

• Keep cassettes in their boxes when not in use.

• Cassette tapes can be erased by magnetic fields produced by magnets, electric

motors, electrical transformers, and other devices. Keep tapes away from magnets and

magnetic fields.

LOADING A CD

1. Move the FUNCTION switch to CD; “-” appears in the display if no CD is loaded.

2. Press CD OPEN to open the CD door.

3. Place a CD into the tray with the label facing up.

4. Close the CD door. “-” flashes in the CD display, then the total number of tracks

appears.

5. To remove the CD, press CD OPEN , grasp the CD by its edges, and carefully pull it

out.

PLAYING A CD

1. Press (PLAY/PAUSE) to play all the tracks in order starting with Track

1. The

current track number appears in the display.

Note: Press (PLAY/PAUSE) to temporarily stop the CD. Pause TNO flashes in the

display. Press (PLAY/PAUSE) again to resume playing the CD.

2. Adjust VOLUME to a comfortable level.

3. Press STOP to stop playing the CD before all tracks have played. Wait a few seconds

for the CD to stop turning, then press CD OPEN to open the CD compartment door

and remove the CD.

AUTOMATIC SEARCH

Automatic search lets you quickly locate the beginning of any track on the CD, including

the track currently playing.

If the CD is playing:

• Press SKIP/SEARCH to return to the beginning of the previous track.

• Press SKIP/SEARCH to skip to the beginning of the next track.

If the CD is stopped, repeatedly press SKIP/SEARCH

SKIP/SEARCH until

the display shows the number of the track you want to play, then press (PLAY/

PAUSE). The CD player starts playing the selected track.

TRACK SEARCH

• In PLAY or PAUSE mode, press and hold SKIP/SEARCH to move forward through

a track at high speed.

•

In PLAY or PAUSE mode, press and hold

SKIP/SEARCH

to move backward

through a track at high speed.

RANDOM

Press this button and the tracks of a CD will be played in random order. If RANDOM is

pressed during stop ode it will start play in RANDOM mode. The LCD will light the

RANDOM segment of the display. The RANDOM mode can be switched off by pressing

the RANDOM or STOP key. It will also be switched off by opening the flap. If pressing

this key during program play mode, there is no reaction. This function is not available.

REPEAT

The REPEAT button allows you to repeat one track or all tracks. To scroll through the

choices, continually press and release the REPEAT button and check the display to see

which choice you’ve selected. The following chart illustrates how REPEAT works in

various modes.

Play Mode: Repeat 1 replays current track Repeat all replays entire CD

Random Mode: Repeat 1 replays current track Repeat all replays entire CD

Program Mode: Repeat 1 replays current track Repeat all replays the program

CARE AND MAINTENANCE

CLEANING THE TAPE HEADS

Iron oxide particles from the magnetic tape can build up on the parts that come in

contact with the tape. These deposits can cause incomplete erasure, muffled playback

sound, and might prevent automatic stop.

To clean a cassette deck, open the compartment door, push the PLAY button and gently

clean the heads, capstan, and pinch wheel with a head cleaner.

Always unplug the power cord before cleaning, and allow 30 minutes drying time when

using a liquid cleaner.

Clean heads after every 25 hours of use.

• Demagnetize the head occasionally with a head demagnetizing cassette (available from

many audio equipment stores).

• Never use any metal objects on or near the tape heads.

• Do not allow any cleaning material to fall into the tape assembly.

TROUBLESHOOTING TIPS

RC-BX30

REMOTE FUNCTIONS

• Never open the cabinet under any circumstances. Never operate this product with the

cabinet removed. Any repairs of internal adjustments should be made only by a trained

service technician.

• Do not touch the player with wet hands. If any liquid enters the player cabinet, take the

player to a trained service technician for inspection.

• This Compact Disc Player uses a laser to read the music on the disc. The laser

mechanism corresponds to the cartridge and stylus of a traditional record player. Al-

though this product incorporates a laser pick-up lens, it is completely safe when oper-

ated according to directions.

INSTRUCTIONS

For Customer Use :

Enter below the Model No. and Serial No.

which are located either on the rear, bottom

or side of the player. Retain this information

for future reference.

Model No.

Serial No.

Printed in China

0602NNMCREORI

VICTOR COMPANY OF JAPAN, LIMITED

Problem Solution

• Make sure power cord is securely plugged into

the AC power outlet (or that the batteries are

fresh).

• Unplug the unit for a moment, and then plug it

back in.

• Check the outlet by plugging in another device.

• Adjust volume setting.

• Make sure you’ve selected the correct function:

CD,

TAPE, or, RADIOs.

• Adjust the FM whip antenna for better FM

reception.

• Adjust the FINE TUNE knob.

• Rotate the unit to achieve better AM reception.

• Try turning off electrical appliances near the unit,

such as hair dryers, vacuum cleaners, or

fluorrescent lights.

• Make sure the tray contains a CD.

• Make sure the CD’s label is facing up.

• Make sure that Pause mode is not activated.

• Make sure CD function is selected.

• Inspect the recording head and clean it if

necessary.

• Demagnetize recording head

(as explained in “Care and Maintenance”).

System doesn’t turn

on.

No sound

Poor radio reception

CD doesn’t play

LVT0533-011A [UJ]

SPECIFICATIONS

Amplifier : Output Power 2 W/CH (at 10 % THD)

Speaker Impedance 4 ohm (8.5 cm x 2)

CD : Sampling Frequency 44.1 kHz

D/A Converter 16 bit linear

Beam Source Semiconductor laser (wavelength 780 mm)

Frequency Response 125 Hz - 10 kHz (+/- 6 dB)

Dynamic Range 70 dB (min)

Harmonic Distortion 1.5 % (max)

Channel Separation 40 dB (min)

Signal Noise 50 dB (min)

Radio : Tuning Range FM 88 MHz - 108 MHz, MW 530 kHz - 1600 kHz,

SW 6 MHz-17 MHz

Antenna FM/SW Rod Antenna, MW Ferrite Bar Antenna

Cassette : Tape Speed 4.75 cm/sec

Wow & Flutter 0.35 % WTD

Recording System AC Bias

Erase System Magnetic Erase

S/N 35 dB (min)

Track System 4 track, 2 channel, stereo

Monitor System Variable sound monitor

Frequency Range 125 Hz - 6300 Hz

(Normal)

General : Power Supply 110V-127V/220V-230V, 50 Hz/60 Hz

DC 9 V, “D” size (13A/LR20) or equivalent size

battery x 6

Power Consumption 15 W, 3 W (Standby)

Unit Dimension 403(W) x 169(H) x 237(D) mm

Mass 3.3 kg (without batteries)

PRECAUTIONS

WARNING LABEL,

PLACED INSIDE

THE UNIT

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUST-

MENTS OR PERFORMANCE OF PRO-

CEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPO-

SURE.

CLASS 1

LASER PRODUCT

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation

when open and interlock failed or

defeated. Avoid direct exposure to

beam.

3. CAUTION: Do not open the top cover.

There are no user serviceable parts

inside the Unit; leave all servicing to

qualified service personnel.

WARNING:

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOIS-

TURE.

Can’t find the AC power cord? Look in the

battery compartment on the back of the unit.

Distorted or noisy

recordings

RC-BX30(UJ)_E.p65 2002.05.24, 14:491

JVC RC-BX30

Table of Contents

Other manuals for JVC RC-BX30

Related product manuals
