JVC RC-BX33SL - Disassembly method; Removing the rear panel

RC-BX33SL
Disassembly method
Removing the rear panel
1.
From behind the body, remove the Five screws
A
retaining the rear panel.
2.
Open the Battery door, then remove One Screw
B
retaining in the battery compartment
bottom side.
3
Then remove the Two screws
C
retaining the bottom of rear panel.
4
Take out the rear panel from the body. And disconnect the CN302 on the main board
right side.
Note:
Be careful of the FM antenna white wire, it is connection with the tuner PCB up side.
You can directly take out from the tuner PCB.
When you re-assembly the product, plug the FM antenna white wire into the Tuner
PCB'S "FM ANT" position.

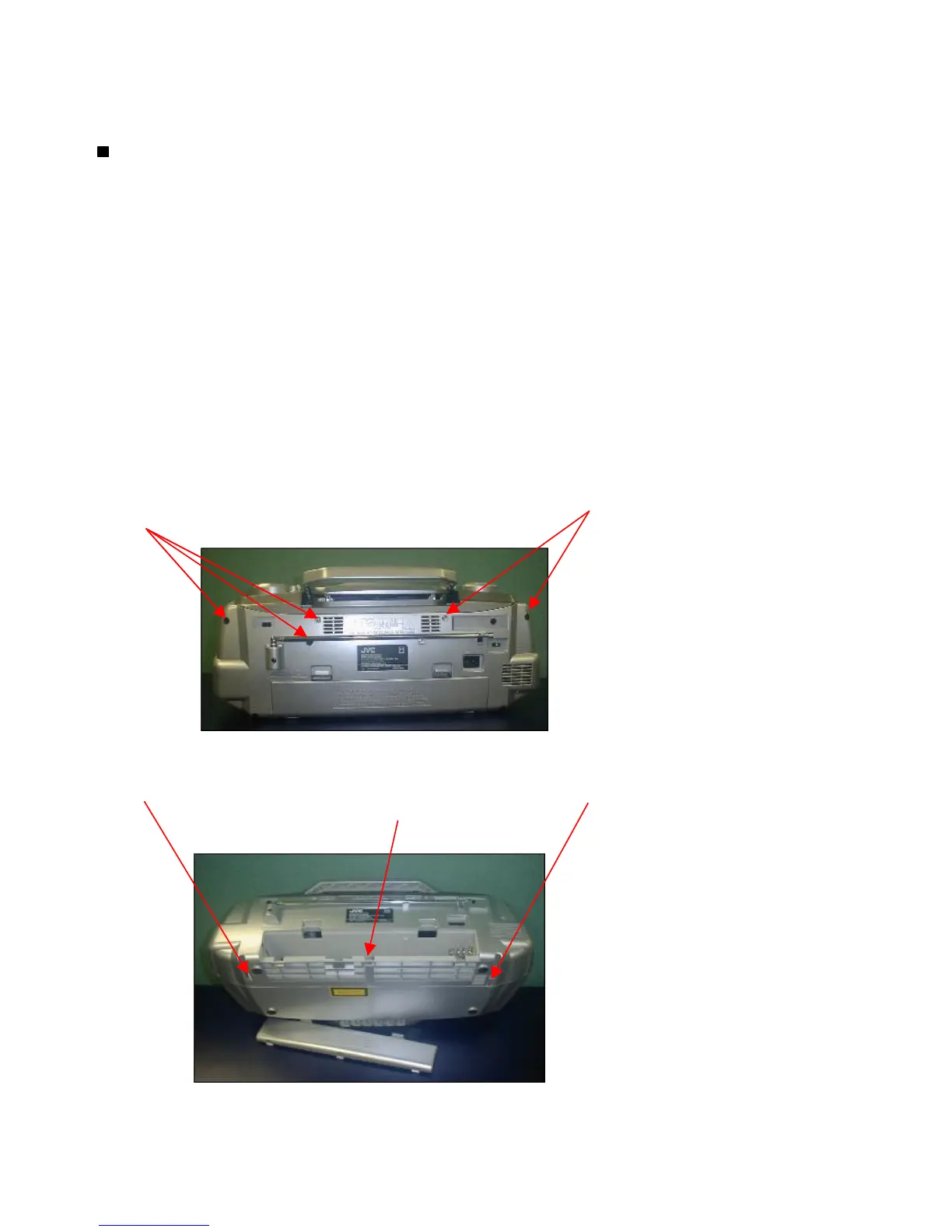

Screw A.
Screw A.
Screw C.
Screw C.
Screw B.
1-4
