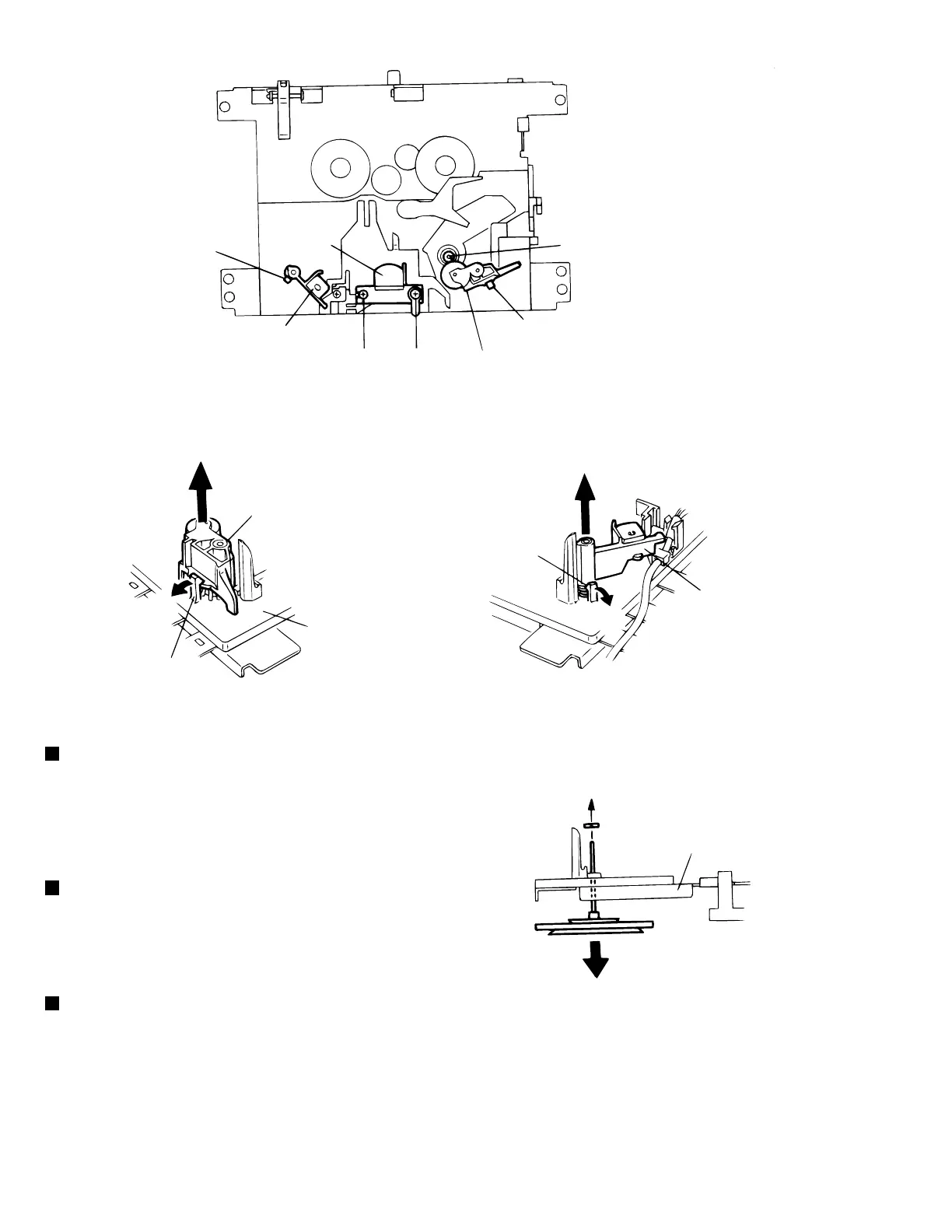

Pinch roller arm assembly (Fig.4 to 5)
1. Pull out the stopper protruding from the base assembly
in the direction of the arrow e to remove it from the
pinch roller arm assembly.
2. Then, pull out the pinch roller arm assembly in the
direction of the arrow f.
Rec/PB head and erase head (Fig.4 to 6)
1. Remove two screws B, C retaining the Rec/PB head.
2. Pull out the stopper of the erase head in the direction of
the arrow g.
3. Pull out the erase head in the direction of the arrow h.
Flywheel assembly (Fig.7)
1. Remove the split washer retaining the flywheel
assembly in the direction of the arrow i.
2. Pull the flywheel assembly out of the back side of the
cassette mechanism assembly in the direction of the
arrow j.
Fig.4
Fig.5 Fig.6
Fig.7
f
e
B
C
j
Stopper
Rec/PB
head
Erase head
Capstan shaft
Stopper
Pinch roller arm ass’y
h
Stopper
g
Erase head
Stopper
Pinch roller arm ass’y
P washer
Base ass’y
Flywheel
i
Base ass’y
