TA2104AN (IC1) : AM/FM 1 chip tuner IC
2.Pin function

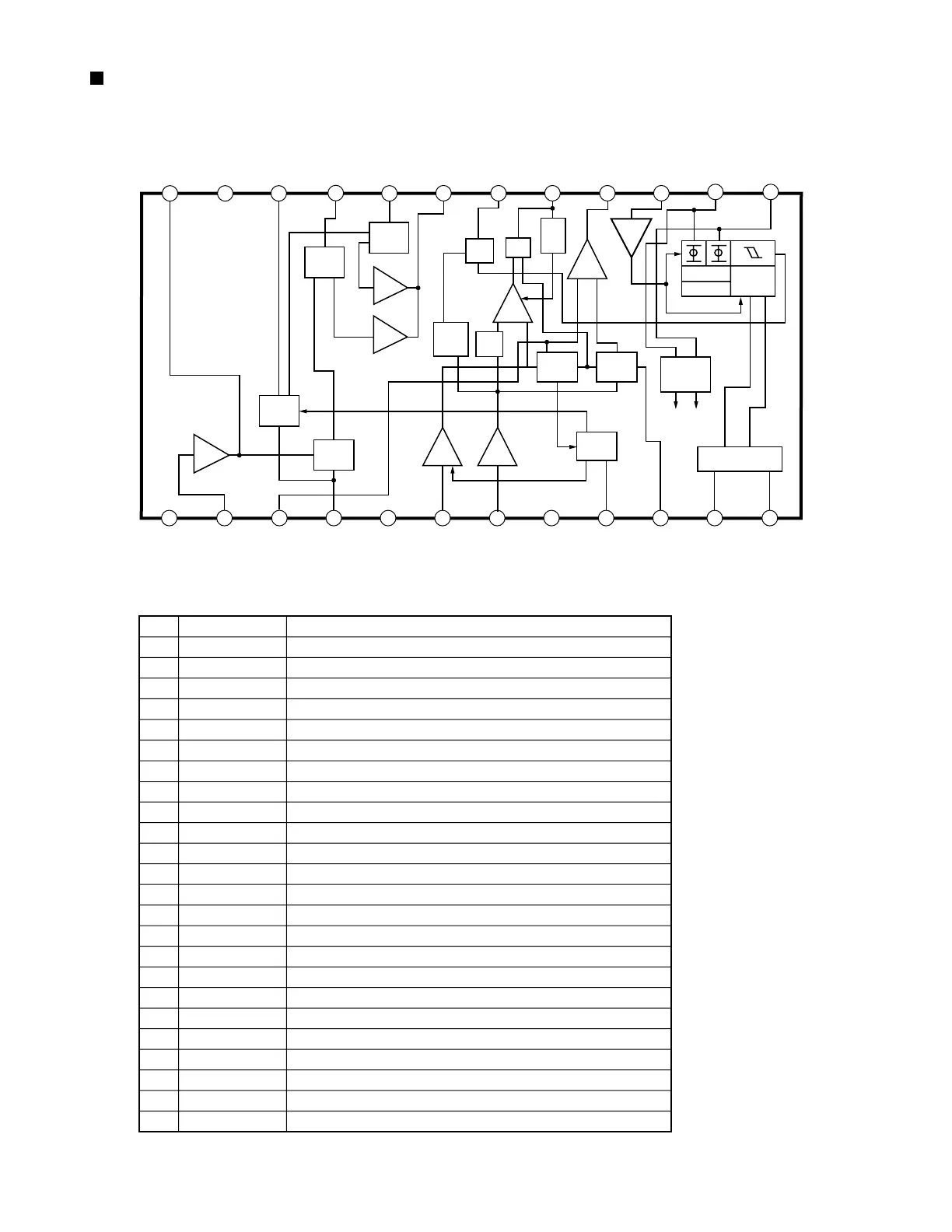

1.Terminal layout & Block diagram
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
RF GND
FM RF IN
AM LOW CUT
MIX OUT
Vcc
AM IF IN
FM IF IN
GND
AGC
QUAD
R-OUT
L-OUT
LPF2
LPF1
MPX IN
DET OUT
IF REQ
ST LED
OSC OUT
AM OSC
FM OSC
AM RF IN
RF Vcc
FM RF OUT
RF Stage ground
FM RF Input
AM Low Frequency Cut Filter External Component
Mixer Output
Power Supply
AM IF Amplifier Input
FM IF Amplifier Input
Ground
AM AGC External Capacitor
FM Quadrature Detector Terminal
Audio output CH-R
Audio output CH-L
LPF Terminal for Phase Detector / AM, FM Switching
LPF Terminal for Synchronous Detector / VCO Stop
FM MPX Input
AM/FM Detector Output
IF Output / IF Request control
FM Stereo Indicator Output
Local Oscillator Output
AM Oscillator
FM Oscillator
AM RF Input
RF Stage Vcc
FM RF Amplifier Output
Pin
1
2
3
4
5
6
7
8
9
Pin Name
Function
