1-12
RC-BZ5LB/BZ5RD
RC-BZ6BU
Prior to performing the following procedure, remove
the front cabinet assembly and the rear cabinet
assembly.
Disconnect the harnesses from connector CN306
and CN307 on the power board in the power
transformer assembly.
Remove the two screws H attaching the AC jack of
the power board and the two screws I attaching the
power transformer.
Remove the power transformer assembly toward the
front.
1.
2.

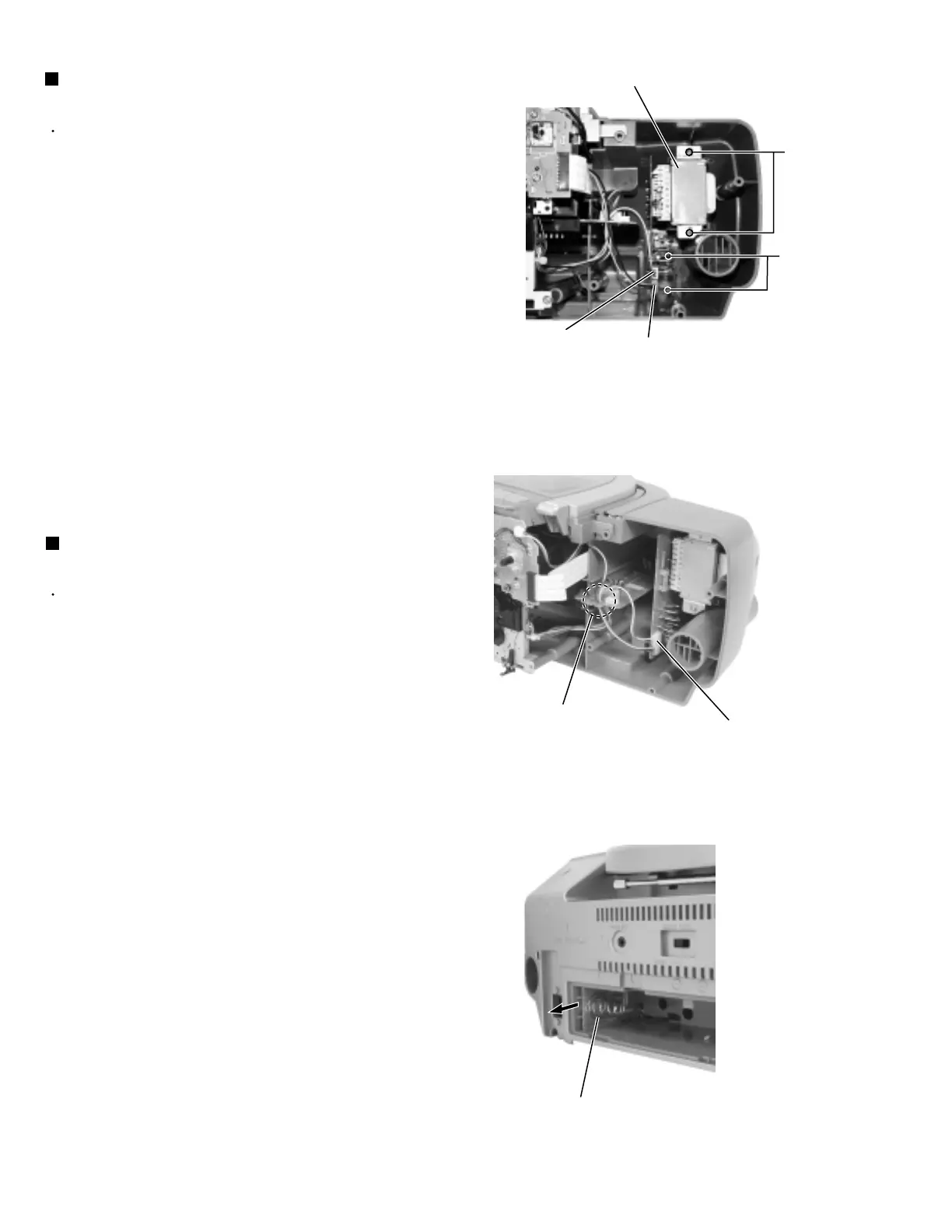

Removing the power transformer
assembly (See Fig.20)
Prior to performing the following procedure, remove
the front cabinet assembly and the rear cabinet
assembly.
Disconnect the battery terminal wire from connector
CN307 on the power board.
Remove the battery board on the back of the rear
cabinet.
1.
2.
Removing the battery board
(See Fig.21 and 22)
Power transformer assembly
Power board
CN307
CN306
I
H
Fig.20
Fig.21
Fig.22
Power board
CN307
Battery board
Release the hornese
