1-7
RC-BZ5LB/BZ5RD
RC-BZ6BU
Prior to performing the following procedure, remove
the front cabinet assembly.
Remove the eight screws B in the front cabinet.1.

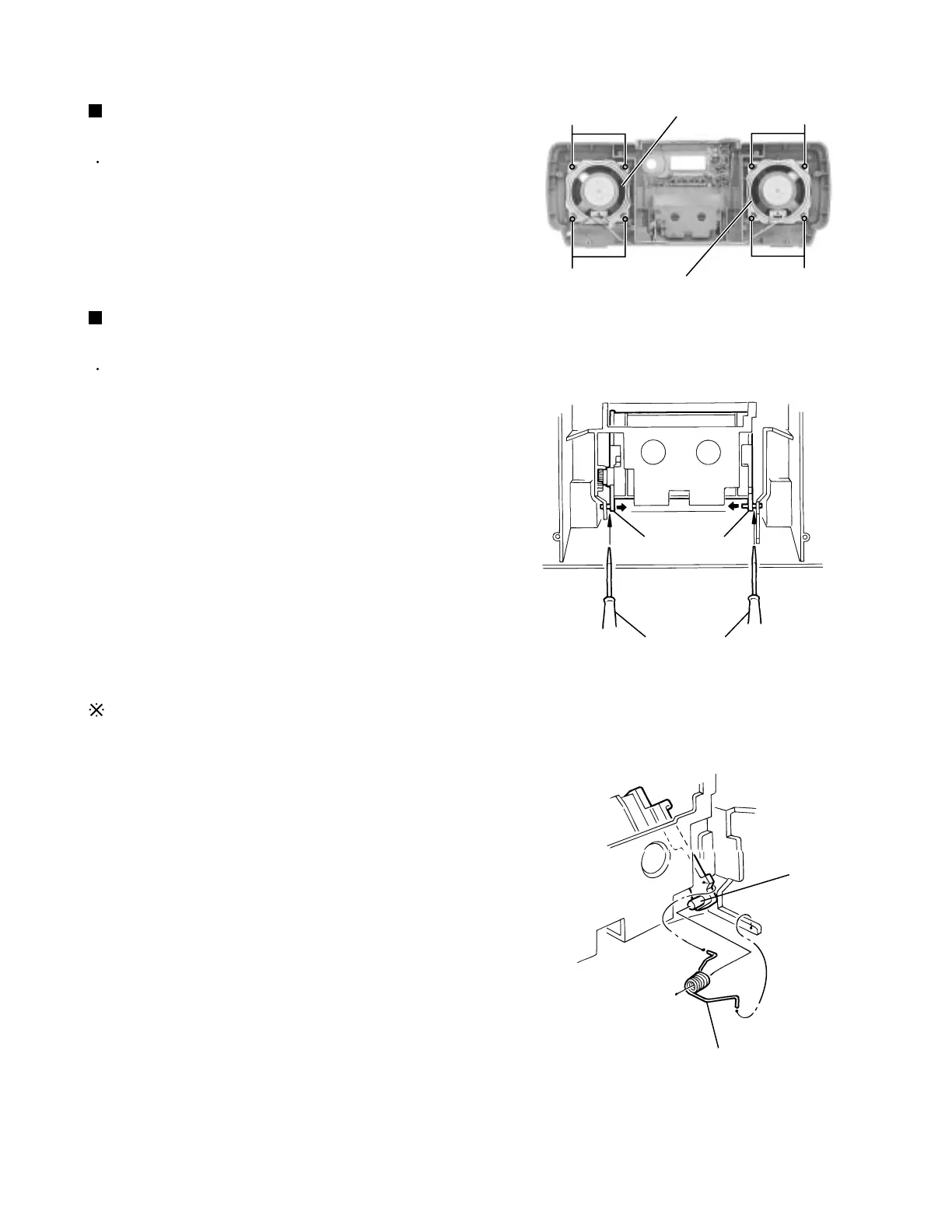

Removing the speaker (L) and (R)
(See Fig.4)
Prior to performing the following procedure, remove
the front cabinet assembly.
Remove the door spring in the front cabinet
assembly.
Insert a screwdriver between the door arm and the
front cabinet and slide the door arms inward, then
detach the cassette door from the front cabinet.
1.
2.
Removing the cassette door
(See Fig.5 and 6)
Reattach the door spring to the cassette door shaft
with opening the cassette door.
Fit another end of the door spring to the front cabinet
rib.
Fit the shorter end of the door spring to the cassette
door.
1.
2.
3.
Reattaching the door spring
<Front cabinet assembly>
B
B
B
B
Speaker (L)
Speaker (R)
Fig.4
Fig.5
Fig.6
Door arms
Screwdriver
Shaft
Door spring
