3.1.11 Removing the power transformer and the battery board
(See Fig.24, 25)
(1) Remove the two screws U attaching the power transform-
er.
(2) Remove the two screws V attaching the power socket.
(3) Remove the support board attaching the battery board.
(4) Release the tab d setting the battery board and pull out the
battery board.
(5) If necessary, unsolder the solder points.
Caution:
When you remove the power transformer, the band setting the
cord to the screw hole comes off.

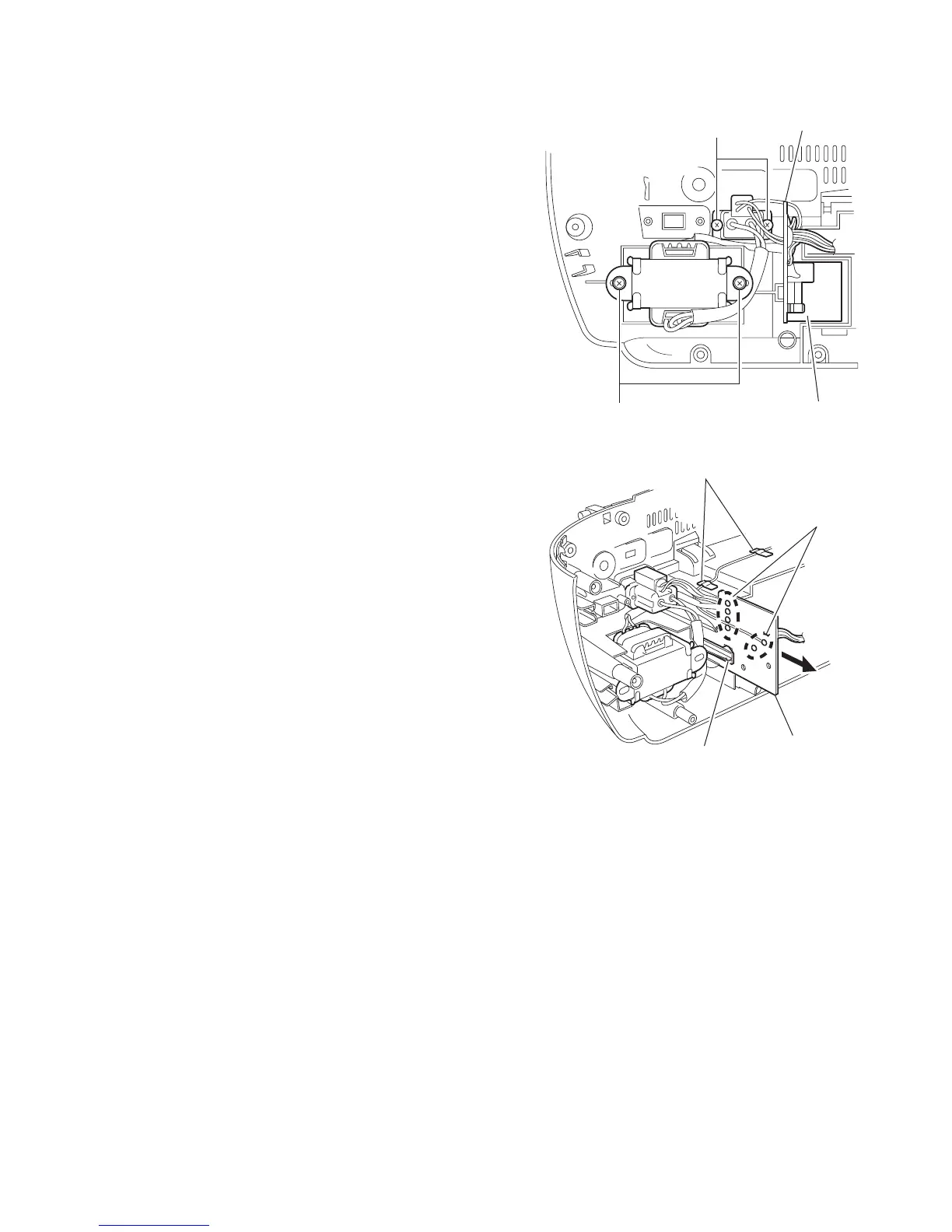

Fig.24
Fig.25
U
Battery board
V
Support board
Tap e
Tab d
Battery board
Solder point
