3.1.9 Removing the LCD & switch board
(See Fig.22)
• Prior to performing the following procedure, remove the cas-
sette mechanism assembly.
(1) Remove the eight screws S attaching the LCD & switch
board.

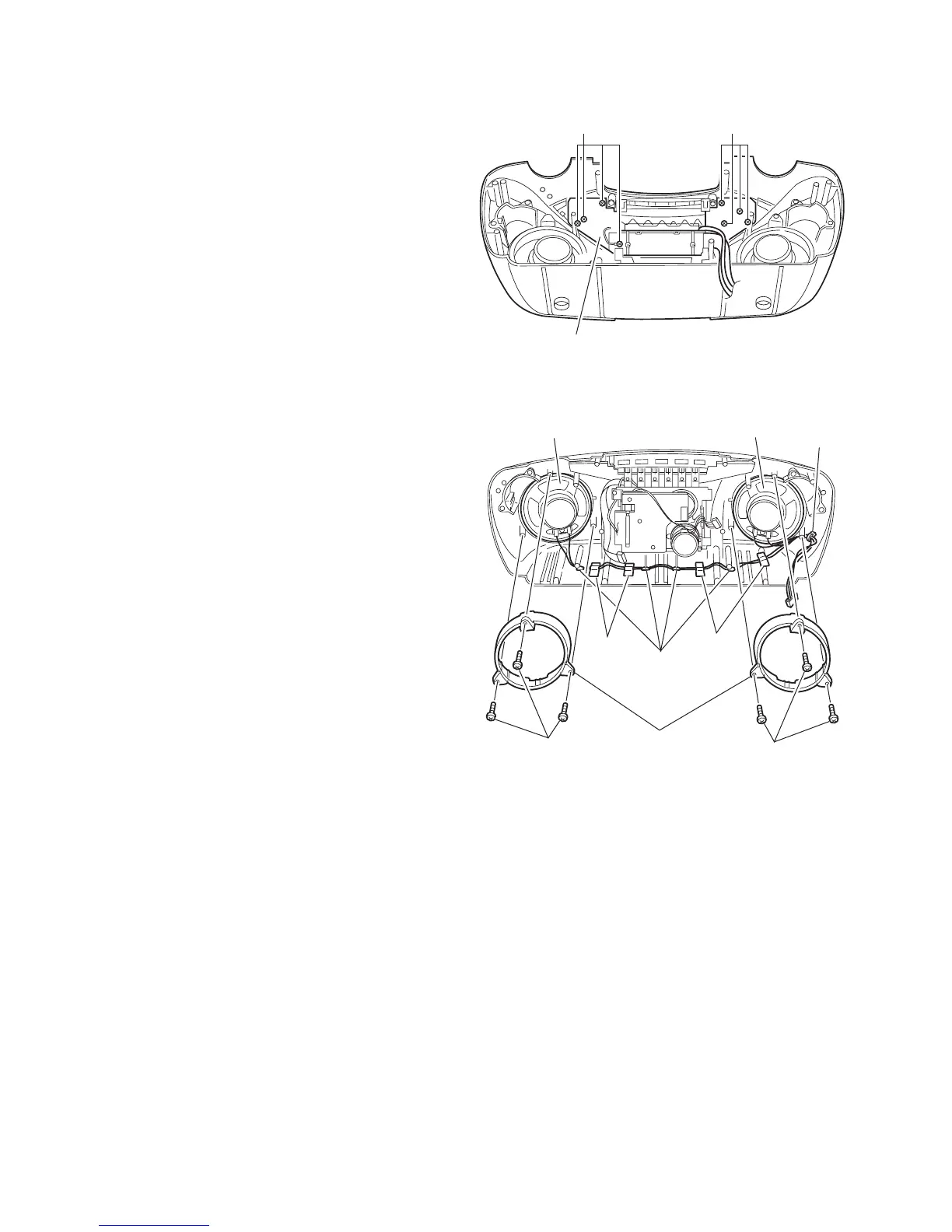

Fig.22
3.1.10 Removing the speaker
(SeeFig.23)
(1) Remove the six screws T attaching the speaker bracket.
(2) Peel the tape and glue off attaching the speaker cord.
Caution:
The band comes off when you remove the speaker.
Fig.23
LCD & switch board
S
S
Speaker Speaker
Speaker bracket
Band
Tap e
Tape
Glue
T
T
