JVC RC-EX30B Service Manual

(No.MB279)1-7

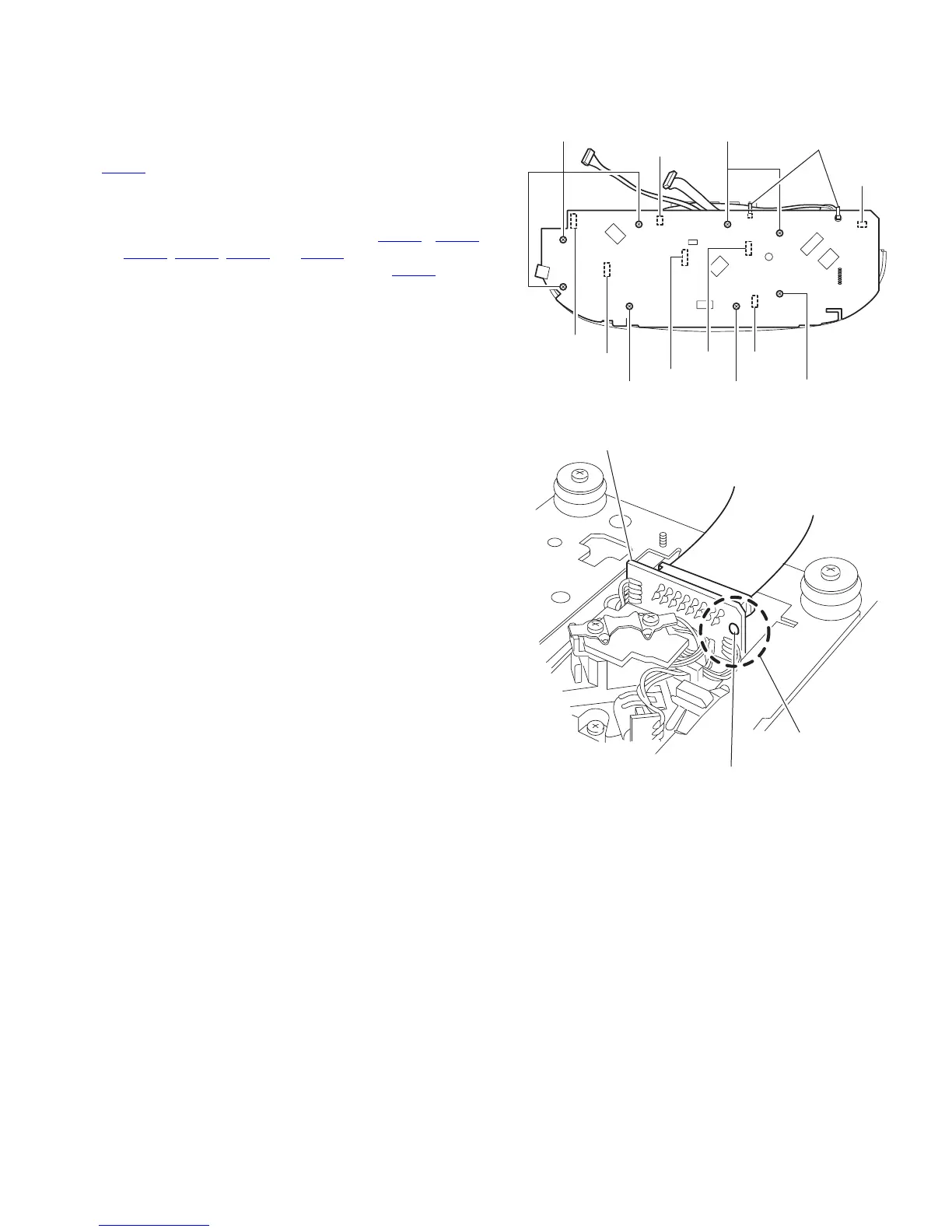

3.1.3 Removing the main body
(See Fig.9, 10)
Caution:
Make sure to solder the short-circuit point on the CD servo
board before disconnecting the card wire from connector
CN201
on the main board and from the CD servo board. If you
don't observe this instruction, the pickup may be damaged.
(1) Remove the eight screws G attaching the main board on
the top cover assembly.
(2) Disconnect the wire from connector CN501
, CN502,
CN511
, CN202, CN401 and CN504 on the main board.
(3) Disconnect the card wire from connector CN201 on the
main board.
Caution:
If necessary, cut the band.
Fig.9
Fig.10
CN504
CN501
CN202
CN201
CN502
G
G
GGG
CN511
Band
CN401
Unsolder
Short-circuit point
CD servo board
