JVC RC-EX30B Service Manual

(No.MB279)1-9

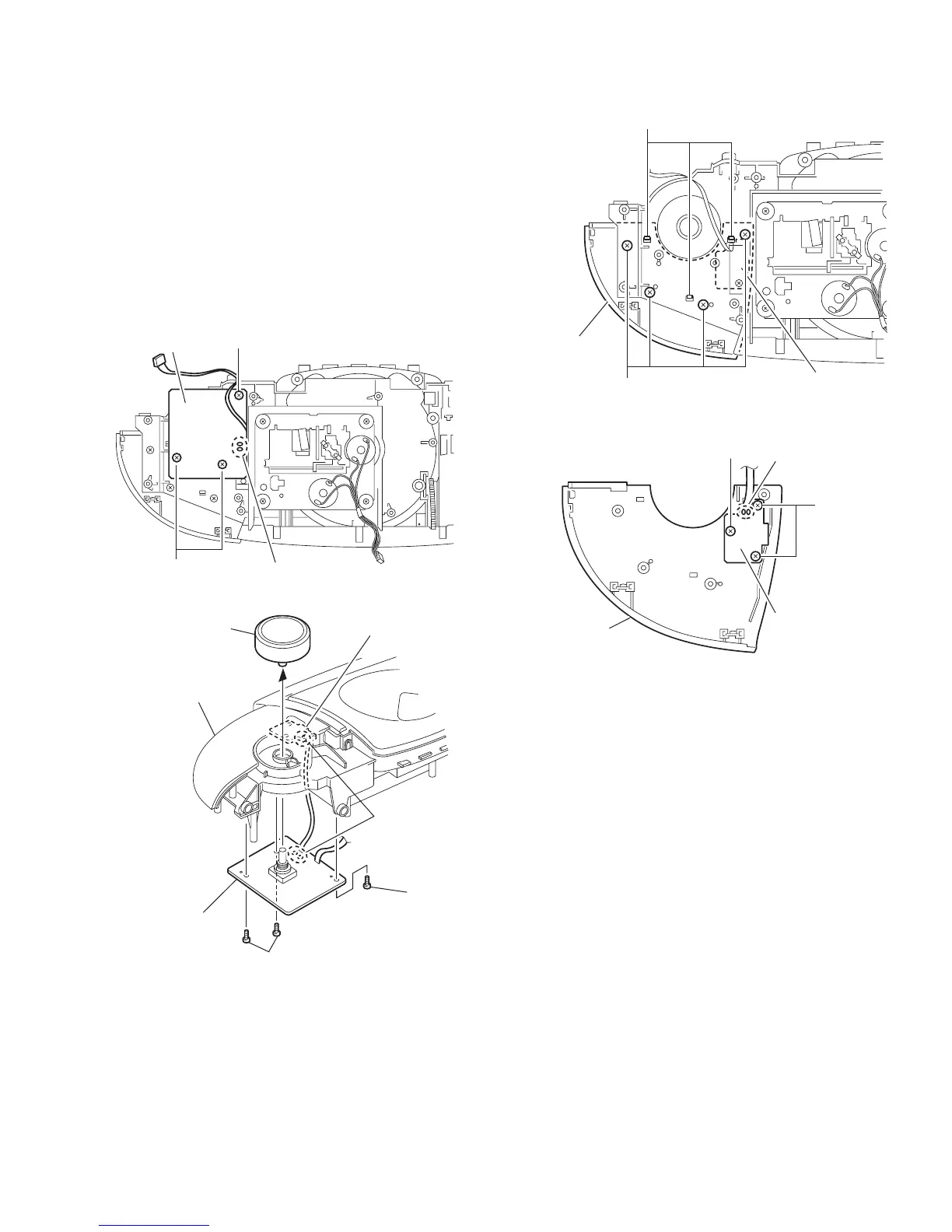

3.1.6 Removing the volume board and the power switch board
(See Fig.13 to 16)
• Prior to performing the following procedure, remove the main
board.
(1) Remove the three screws K attaching the volume board.
(2) Pull out the volume board from the volume knob.
(3) Remove the four screws L attaching the cover on the side
of the power switch.
(4) Release the three tabs b of the cover on the side of the
power switch.
(5) Remove the three screws M attaching the power switch
board to the cover.
Caution:
If necessary, unsolder the solder points.
Fig.13
Fig.14
Fig.15
Fig.16
K
K
Volume board
Solder point
Top cover assembly
Volume board
K
K
Volume knob
Switch board
Solder point
Side top cover
Switch board
Tab b
L
M
M
Side top cover
Power switch board
Solder point
